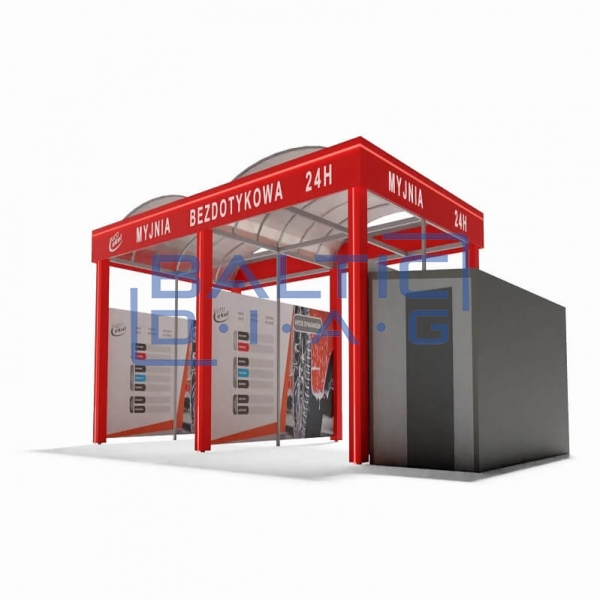

Self-service car wash GOLD 2 Bay Euro Ekol

Self-Service Car Wash GOLD 2-Bay Euro Ekol

Country of origin: Poland, warranty period – 24 months

GOLD – the upgraded Euro Ekol self-service car wash model.

The GOLD construction is additionally equipped with LED lighting.

Four washing programs:

• FOAM WASHING – low pressure (70 bar) or high pressure (130 bar) + cold or warm water + softened water + washing agent
• RINSING – high pressure (130 bar) + warm water + softened water
• WAXING – low pressure (70 bar) + softened water + hydro wax agent
• POLISHING – low pressure (70 bar) or high pressure (130 bar) + osmotic (demineralized) water

Car wash control system:

• Siemens microprocessor controller
• Operator panel with a color LCD display mounted in the control cabinet

EKO PLUS start system:

• Stainless steel front panel
• Electronic coin detector for PLN1, PLN2, PLN5, and tokens
• LCD display (4 segments) showing the remaining washing time (countdown in seconds)
• Program selection buttons with LED backlighting
• Direct transmission of turnover information at the station to the control cabinet
• Reporting on the quantity of rejected and accepted coins – coin detector operation control
• Front panel made using dye sublimation (durable printing technology on aluminum)

Water distribution system:

• Pipeline made from PP Coprax Prandelli system pipes with enhanced parameters

High-pressure system:

• UDOR high-pressure pumps, capacity 15 l/min, max. 200 bar
• EME three-phase engines, 5.5 kW or 4.0 kW power capacity

Chemical dosing system:

• Accurate DOSATRON pressure mixers (precision up to 0.1%)

Pumping and chemical dosing section:

• High-pressure pumps, capacity 15 l/min, max. 200 bar
• Pump service engines, 5.5 kW power capacity
• Washing chemicals and wax dosing system – DOSATRON pressure mixers

Heating boiler:

• ACV dual-function boiler – oil or gas-powered, adapted for washing water and floor heating
• Boiler integrated with a warm water tank
• Floor heating module controlled via an external thermostat
• Heating agent circulating pump

Water softener system:

• Dual-column cylinder system with a resin bedding
• Smart electronic controller for brine flow control
• Flow capacity of 2.8 m³/h
• Ability to set input water parameters
• Two independent salt containers
• 10’ self-cleaning mechanical pre-filter for feed water

Demineralizer (reverse osmosis system):

• Demineralizer with a capacity of 320 l/h, controlled by a microcomputer
• Complete demineralized water diagnostics and control
• 10’ mechanical filter protecting membranes and a BB 20 carbon filter
• Water treatment quality indicator – conductivity meter
• Membrane housing made from stainless steel
• Soft water emergency switching system
• System for membrane flushing after prolonged standby periods
• 2,000 l demineralized water tank
• Set of floats for monitoring water levels in the tank
• Hydrophore system ensuring constant pressure at the pump inlet

Antifreeze system:

• Closed water circulation
• Water circulation activated via an external thermostat
• Minimum temperature of circulating water – 13°C
• Emergency system in case of power outage

Service container:

• Steel construction based on an enclosed profile
• Container dimensions: 580 cm x 222 cm x 250 cm
• 80 mm sandwich panel filling
• Heat insulation coefficient U = 0.303 W/(m²/K)
• Floor made from hot-dip galvanized bridge grating
• Container lighting – 2 fittings (2 x 36W each)
• Container’s electrical system along with an electrical switchboard
• Entry doors, 90 cm wide
• Chimney system and exhaust chimney adapted for the given boiler type

Innovative recovery of water from the osmosis production process:

• Ecological solution positively impacting the natural environment by reducing water consumption
• Cost-saving benefits for business operations due to lower operating expenses
• Reduced water usage, leading to lower operational costs

Additionally, you can purchase:

1. Chassis washer

2. Turbo foam program per washing station

• Lance intended for feeding turbo foam
• Stainless steel lance pocket
• Pressure hose set, 360ᵒ rotating arm
• Automation in the control cabinet
• 4 kW engine + UDOR pump 150 bar

3. Turbo brush program per washing station

• Brush with a nozzle feeding very thick foam
• Brush made from long natural bristle
• Stainless steel lance
• Gun with a rotating connector
• Stainless steel brush pocket
• Pressure hose set, 360ᵒ rotating arm
• Automation in the control cabinet
• 4 kW engine + UDOR pump 150 bar
• Option for installing any number of washing stations (minimum 1)
• Colored foam – 1 color
• Colored foam – 2 colors

4. Standard brush washing program

• Brush made from long natural bristle
• Stainless steel lance
• Gun with a rotating connector
• Foaming nozzle at the lance’s end
• Stainless steel brush pocket
• Pressure hose set, 360ᵒ rotating arm
• Automation in the control cabinet
• Option for installing any number of washing stations (minimum 1)

5. Additional rims/insect washing program

• Chemical dispenser
• Hose set
• Automation in the control cabinet

6. Mat washing grip

• Stainless steel frame
• 4 grips for comfortable mat fastening
• Dimensions: height 110 cm x width 200 cm

7. VC1 self-service vacuum cleaner – single station

• 2,160 W vacuum cleaner capacity
• Power supply: 230 V / 50 Hz
• Mechanical coin detector (PLN 2)
• Housing with any RAL color scheme
• Hose and nozzle

8. VC1 self-service vacuum cleaner – Euro-Ekol single station

• 2,160 W vacuum cleaner capacity
• Power supply: 230 V / 50 Hz
• Electronically independent coin detector with adjustable timing
• Housing with any RAL color scheme
• Hose and nozzle
• Euro-Ekol controller
• LED display showing the paid cleaning time
• Accepts coins of different denominations

9. Self-service vacuum cleaner – dual station

• 2 x 2,160 W vacuum cleaner capacity
• Power supply: 230 V / 50 Hz
• Two independent mechanical coin detectors with adjustable timing
• Housing with any RAL color scheme
• Hoses and nozzles for each station

10. Self-service vacuum cleaner – Euro-Ekol dual station

• 2 x 2,160 W vacuum cleaner capacity
• Power supply: 230 V / 50 Hz
• Two electronically independent coin detectors with adjustable timing
• Housing with any RAL color scheme
• Hoses and nozzles for each station
• LED display showing the paid cleaning time
• Euro-Ekol controller
• Accepts coins of different denominations
• Possible token payment

11. Mat beater

• Stainless steel housing and grating
• Impurity collection container

12. Euro-Ekol banknote changer

• Exchanges up to 3 banknote denominations into one coin denomination
• Power feeder protected against overloading
• Stainless steel housing
• Doors with a secure lock
• Banknote detector with a banknote cassette
• 1,500 coin container

13. Euro-Ekol banknote changer housing (freestanding)

• Made from stainless steel or black steel with powder coating in any RAL color
• "BANKNOTE CHANGER" inscription with LED backlighting on the front and sides of the housing
• Additional internal doors with a secure lock
• Outer doors with 2 secure locks, opened with a different key than the banknote changer
• Dimensions: height 180 cm x width 52 cm x depth 41 cm

14. Wheel compressor – analogue

• Stationary compressor
• Intended for passenger and light commercial vehicles
• Analogue manometer embedded in the housing
• Air inflation/deflation buttons
• Compressor with or without a 6L or 24L tank
• Housing dimensions: 700 x 400 x 1,000 mm
• Power supply: 230V, 50Hz, 16A
• Operating pressure: up to 6 bar (max. 8 bar)

15. Wheel compressor – digital

• Stationary compressor
• Intended for passenger and light commercial vehicles
• Digital manometer embedded in the housing
• Pressure pre-selection – automatic inflation
• Thermostatic heating and internal heating
• Compressor with or without a 6L or 24L tank
• Housing dimensions: 700 x 400 x 1,000 mm
• Power supply: 230V, 50Hz, 16A
• Operating pressure: up to 6 bar (max. 8 bar)
