TRUCK-EXAM™ are electronic-laser devices designed to measure wheel alignment of commercial vehicles.

HERKULES TRUCK-EXAM™

• All vertical angles measured in one procedure,
• Electronic-laser angle measurement,
• Horizontal angles measured by laser,

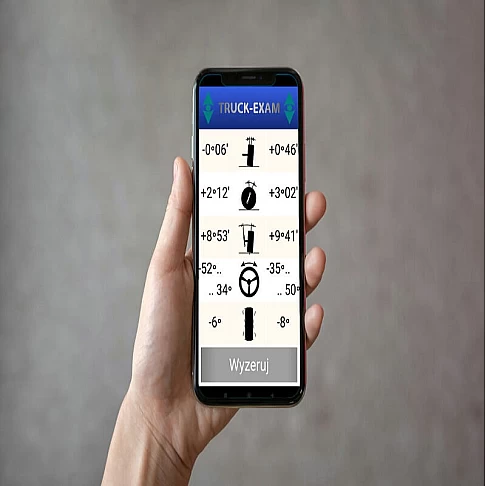

• The TRUCK-REPORT™ app facilitates measurements and creates protocols.
• Connect the heads to the computer via Wi-Fi,

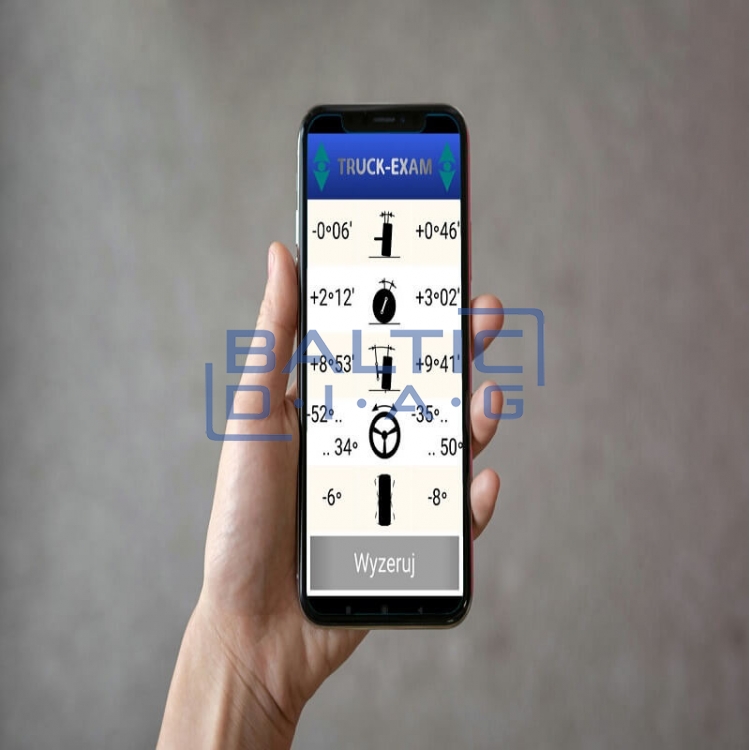

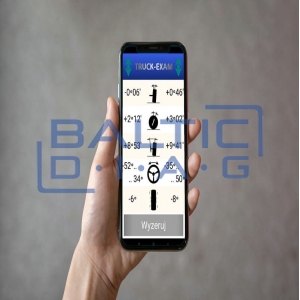

• App for tablets and smartphones.

The device is designed to inspect and measure all necessary parameters of the wheel alignment, axles and frame shapes of commercial vehicles. It can be used both at accident repair stations, during mechanical repairs and diagnostics. In its basic version, it serves as a device for measuring and adjusting wheel alignment and axles. When the device is equipped with a frame shape measurement accessory, its application expands to include frame curvature detection.

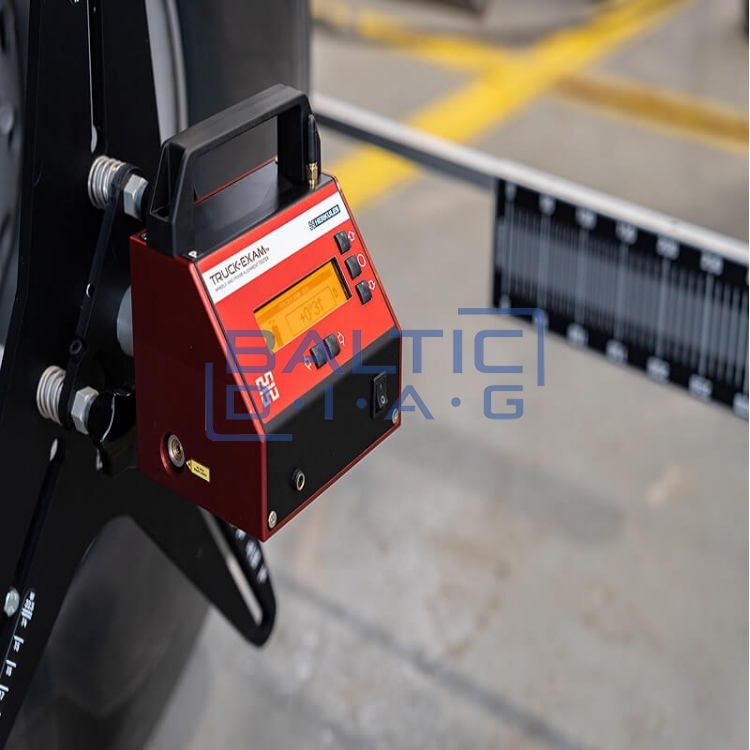

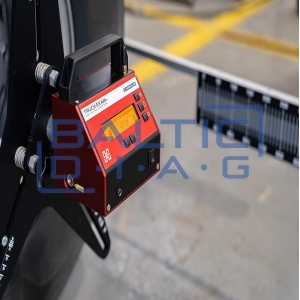

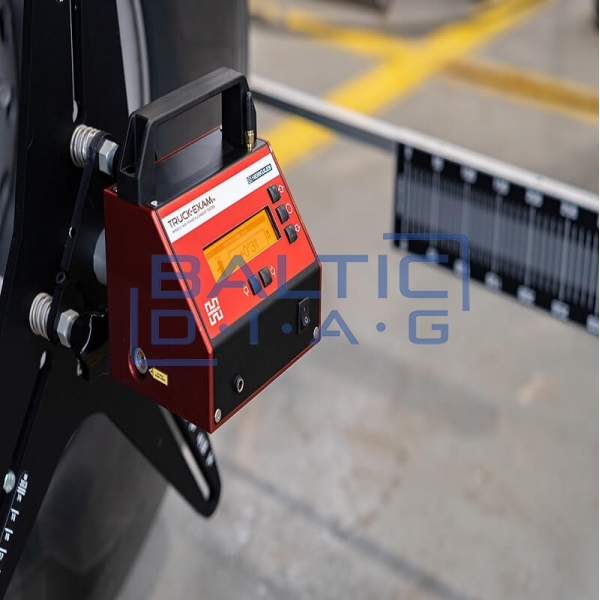

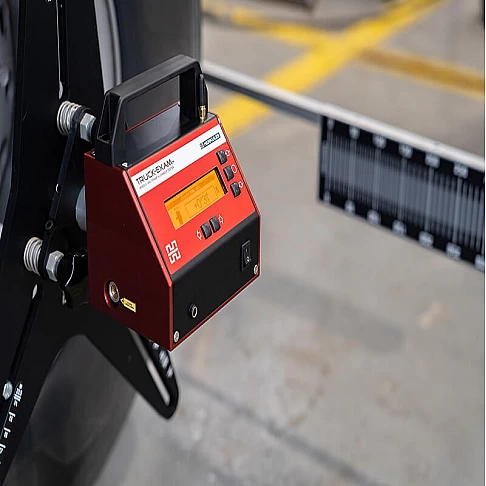

TRUCK-EXAM™ is an electronic-laser device for measuring the wheel alignment of commercial vehicles. Vertical angles are measured electronically, and the measurement signal is obtained from miniature high-end inclinometers. Measuring heads in the latest version are also equipped with miniature gyroscopes that allow wheel turn measurements. Horizontal angles are measured using an optical method with semiconductor lasers.

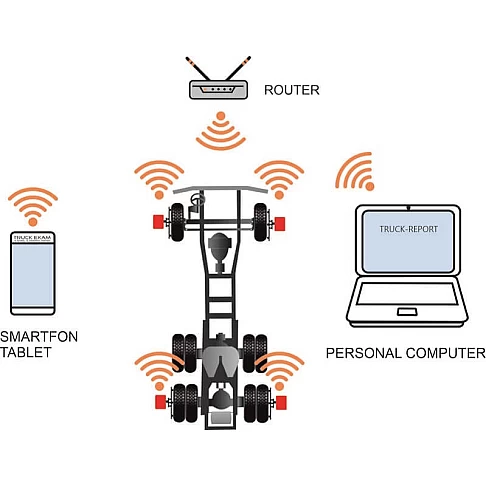

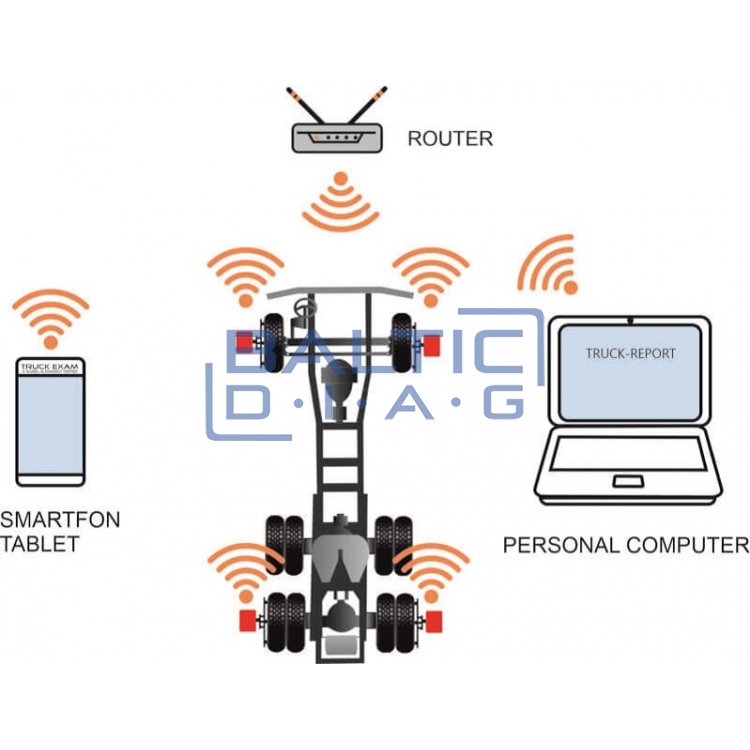

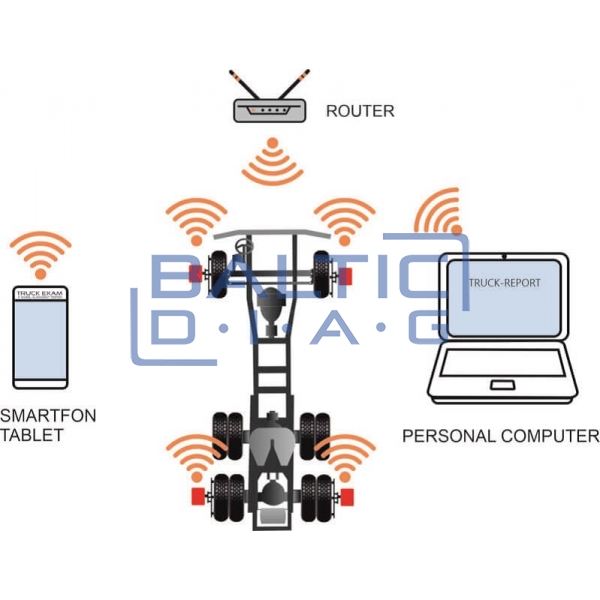

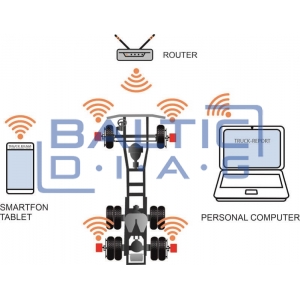

TRUCK-EXAM™ can be equipped with Wi-Fi communication. It makes it possible to measure most of the parameters (CAMBER, CASTER, KING PIN, MAXIMUM WHEEL TURN, WHEEL TURN DIFFERENCE) in a single measurement. An additional advantage is the immediate and direct transfer of results to an app on a smartphone or computer.

Basic Technical data:

• Length: 1850 mm
• Height: 1000 mm
• Width: 800 mm
• Weight: 75 kg

Technical data:

• Toe individual: ±1°30′ (Range) 5′ (Resolution) ±5′ (Accuracy)
• Toe total: ±3° (Range) 5′ (Resolution) ±5′ (Accuracy)
• Camber : ±75′ (Range) 1′ (Resolution) ±3′ (Accuracy)
• Caster: ±75′ (Range) 1′ (Resolution) ±5′ (Accuracy)
• King-Pin: ±75′ (Range) 1′ (Resolution) ±5′ (Accuracy)
• Axle angle: ±100 mm (Range) 1 mm (Resolution) ±2 mm (Accuracy)
• Axis offset: ±75 mm (Range) 1 mm (Resolution) ±2 mm (Accuracy)
• Side offset: ±100 mm (Range) 1 mm (Resolution) ±2 mm (Accuracy)
• Steering angle: 360° (Range) 1° (Resolution) ±30° (Accuracy)

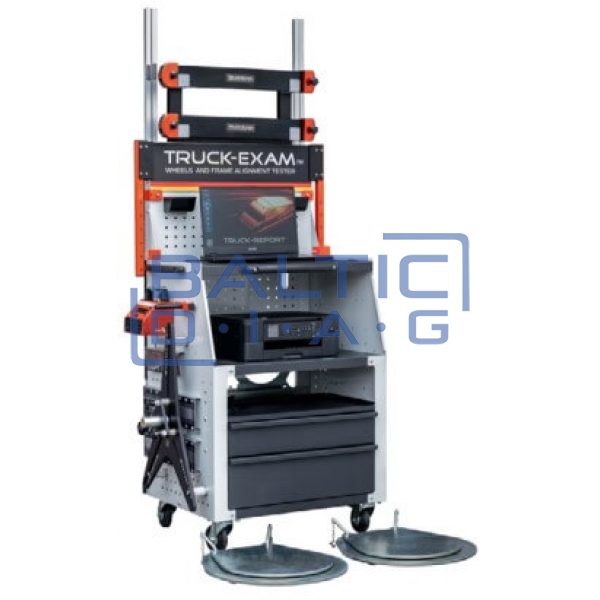

Measuring system RAM-EXAM™

Equipment:

• Measuring head
• Turntable
• Head holder – standard + Alu
• Synchronous ruler
• Ruler corner hanger
• Steering wheel lock
• Brake pedal lock
• Head charger
• Control post, magnetic
• Magnetic screen
• Troley
• Computer TRUCK-REPORT
• Alu rim adapter
• Printer
• Magnetic holders “100”
• Magnetic holders “300”

Additional equipment:

• Frame hanger – longitudinal
• Side hanger
• Head magnetic holder
• Synchronous ruler
• Adjustable side screen
• Try square
• Control ruler
• Control post, magnetic
• Magnetic screen
