4-post lift for commercial vehicles ST 4055 Stertil-Koni

4-Post Lift for Commercial Vehicles ST 4055 Stertil-Koni

Country of origin: Netherlands, warranty period – 24 months

Available Versions:

ST4055-V: platform length 5150 mm / 201 3/8 inches, width 630 mm / 24 3/4 inches, width between columns 3300 mm / 130 inches

ST4055-L: platform length 5750 mm / 225 inches, width 630 mm / 24 3/4 inches

ST4055-LV: platform length 5750 mm / 225 inches, width 630 mm / 24 3/4 inches

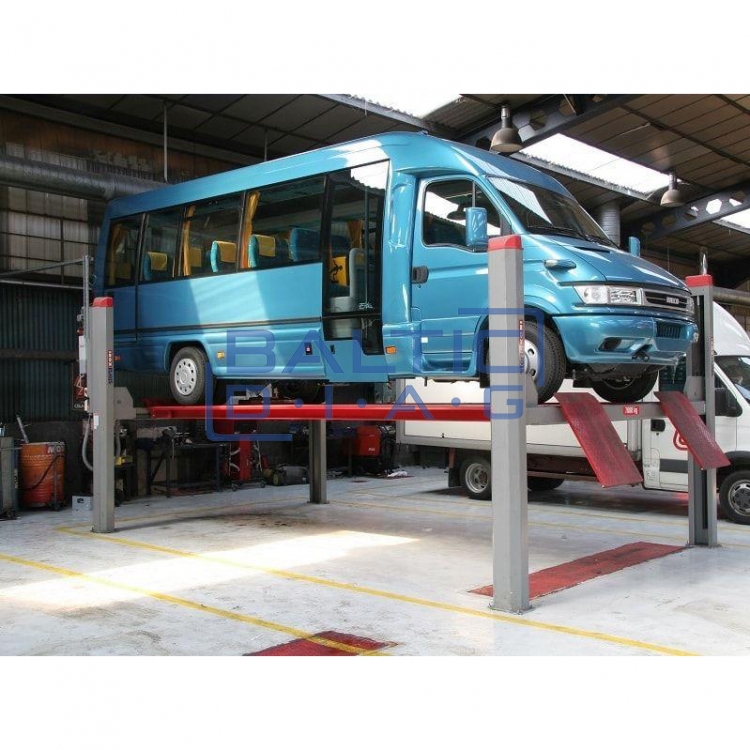

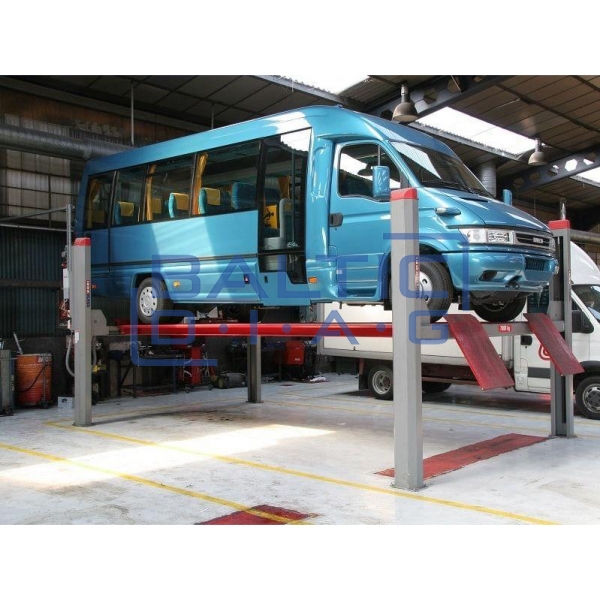

The ST 4055 is a compact 4-post vehicle lift with a lifting capacity of 5,500 kg. This model is designed to meet modern requirements – ideal for lifting long commercial vans and light freight vehicles. Due to its compact dimensions and low drive-on height, the lift is especially suitable for smaller workshops where every centimeter of space matters.

Features:

• Compact Design – Takes up minimal space, ideal for workshops with limited room
• Hydraulic Lifting System – Ensures smooth and reliable operation
• Low Drive-On Height – Only 160 mm, allows even low-profile vehicles to access the lift safely without bottoming out
• Wide Range of Adjustable Platforms – Adaptable for vehicles of various sizes
• Controllable Lowering Speed – Guarantees safe vehicle descent onto axle stands or transmission jacks
• Stable Construction – Integrated posts, crossbeams, and tracks provide excellent structural stability
• Ergonomic Access – Slim columns and wide spacing make maneuvering around the lift easy
• High Lifting Height – Over 2 meters, allowing even tall mechanics to work comfortably under the vehicle
• Optimal Access – 630 mm wide tracks with adjustable spacing provide ease of use even for vehicles with dual rear wheels
• Durability and Reliability – Lift has been tested with a minimum of 50,000 lifting cycles at full capacity

Technical Specifications:

• Model: ST 4055
• Lifting system: Hydraulic
• Lifting capacity: 5,500 kg
• Lifting height: 2,030 mm
• Lifting time: 31 seconds
• Platform length: 5,125 mm

Short Drive-On Ramps

• Short drive-on ramps make it easy for vehicles to access the lift even in compact workshop spaces. Thanks to the ultra-low drive-on height, even low-clearance vehicles can be lifted without risking damage to the underside. This design increases workshop flexibility and saves valuable floor space.

Controllable Lowering Speed

• The lifting equipment is equipped with a lowering speed control valve, allowing precise and safe lowering of the vehicle. This is especially useful when the vehicle needs to be stopped at a specific height – for example, when placing it on axle stands or a transmission jack. Ensures smooth operation and greater technician safety.
