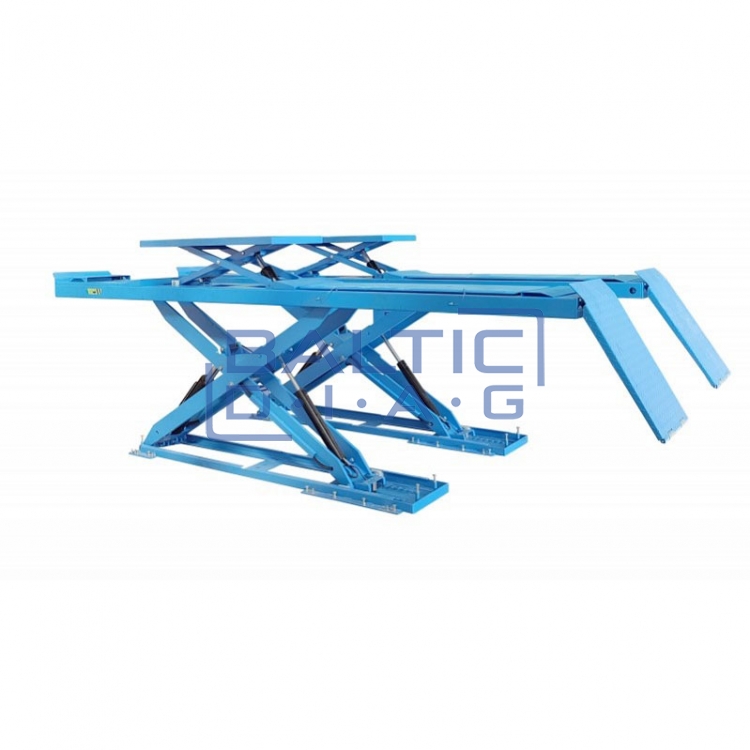

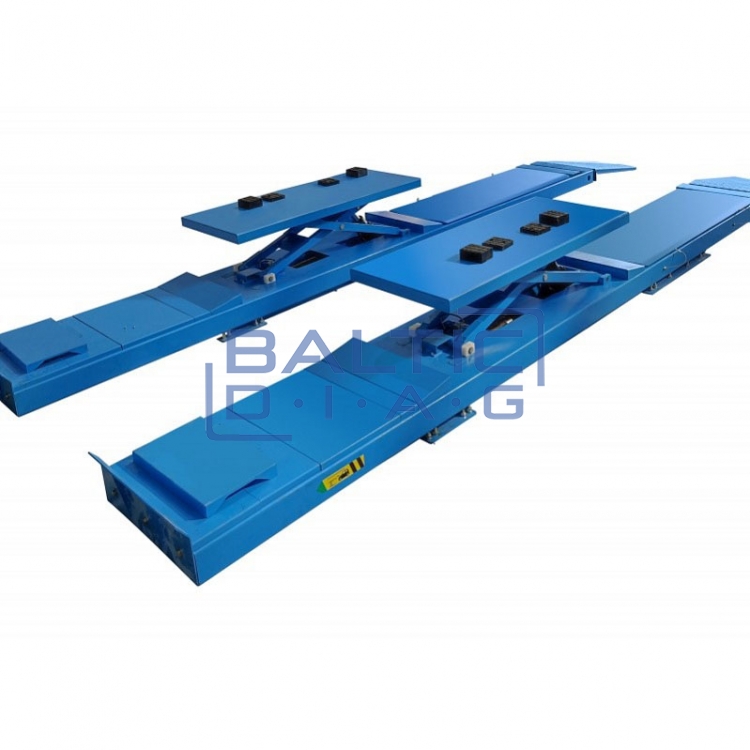

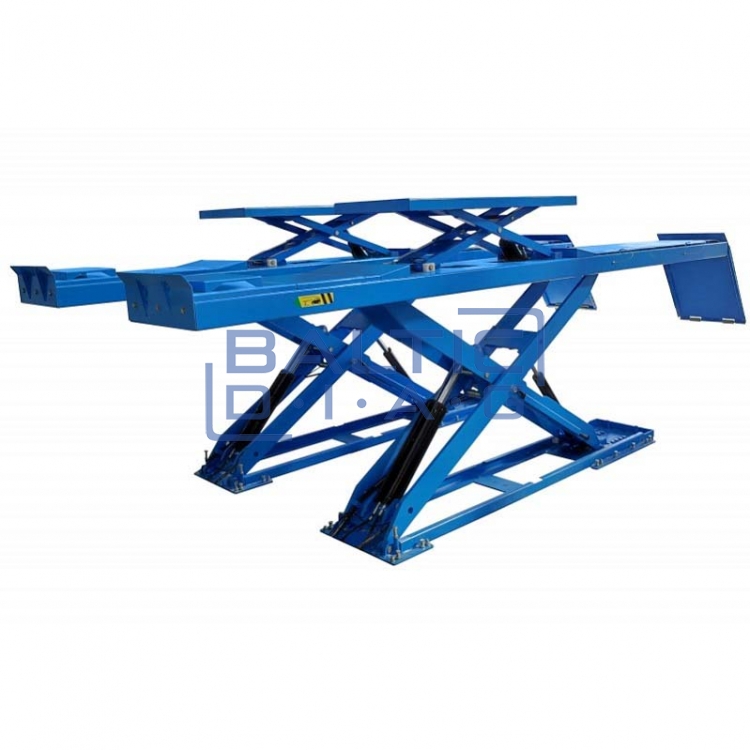

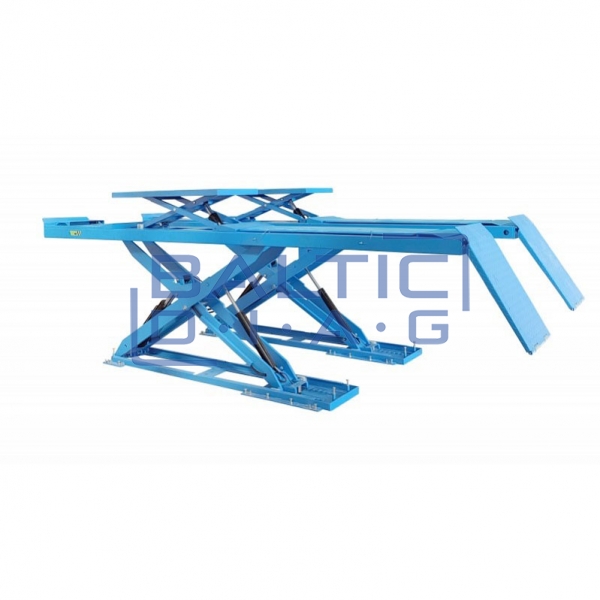

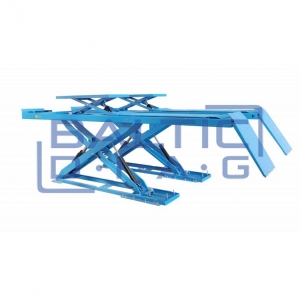

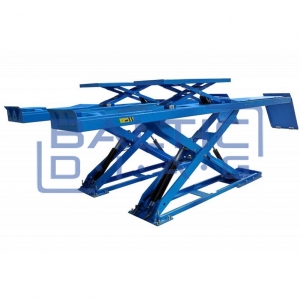

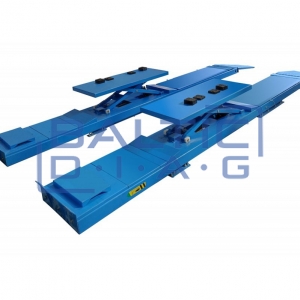

Scissor lift Castex 5 tons

Scissor lift Castex 5 tons

Manufacturer: Castex, Poland

The ideal choice of lift for wheel alignment, chassis inspection and car inspection. With its help, you will be able to easily lift vehicles weighing up to 5000 kg. The lift is equipped with a pneumatic protection system against spontaneous lowering or falling of the platforms. Also, you will have the opportunity to adjust the entrance ramps according to your needs and you will not have to worry about the synchronization of the lift platforms. The lift is equipped with an autonomous, hydraulic platform balancing system and sliding plates for the rear axle of the vehicle, specially adapted for wheel alignment.

Technical parameters:

• Lifting capacity: 5000 kg
• Platform length: 5000 mm + access ramps
• Platform width: 620 mm
• Lifting height: 1900 mm + 420 mm (additional lift)
• Weight: 2155 kg
• Motor power: 2.2 kW
• Lifting / lowering time: 60 / 80 sec.
• Noise level: ≤ 70 dB
• Oil pressure: 20 MPa
• Supply voltage: 230 / 400 V
• Safety locking mechanism: automatic
