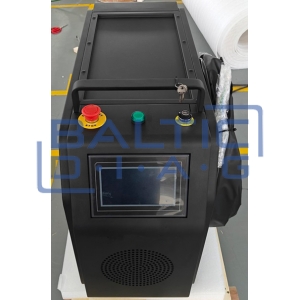

Pulsed laser cleaning device

SKU: BD16928
SKU:: 200W single

11,800.00 €

BALTIC DIAG

Prices shown include tax

Add to Cart

Send Message

Description

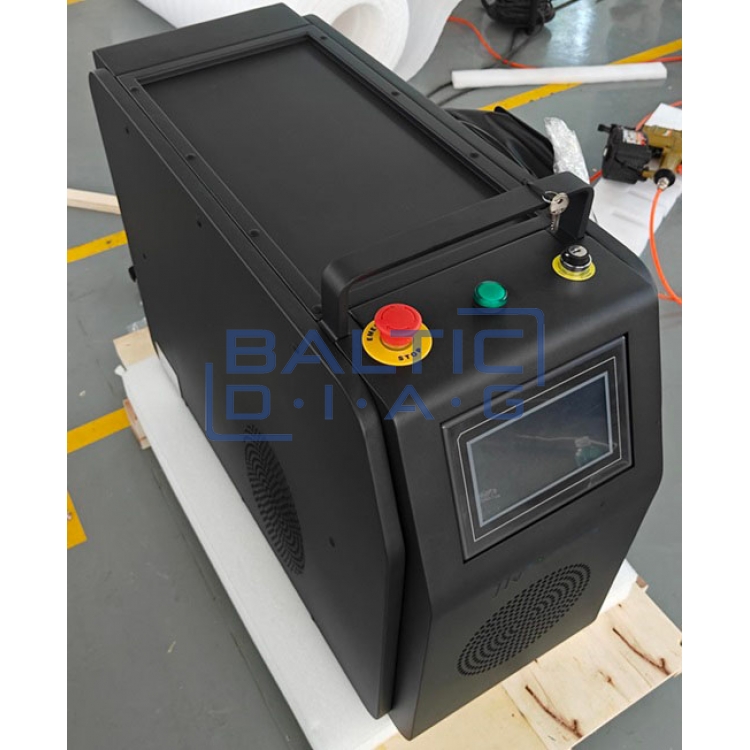

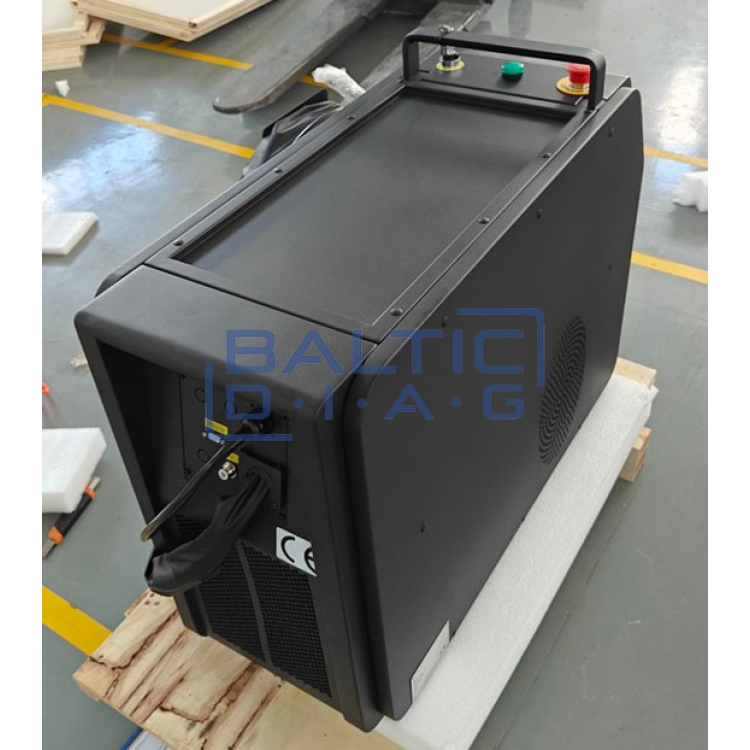

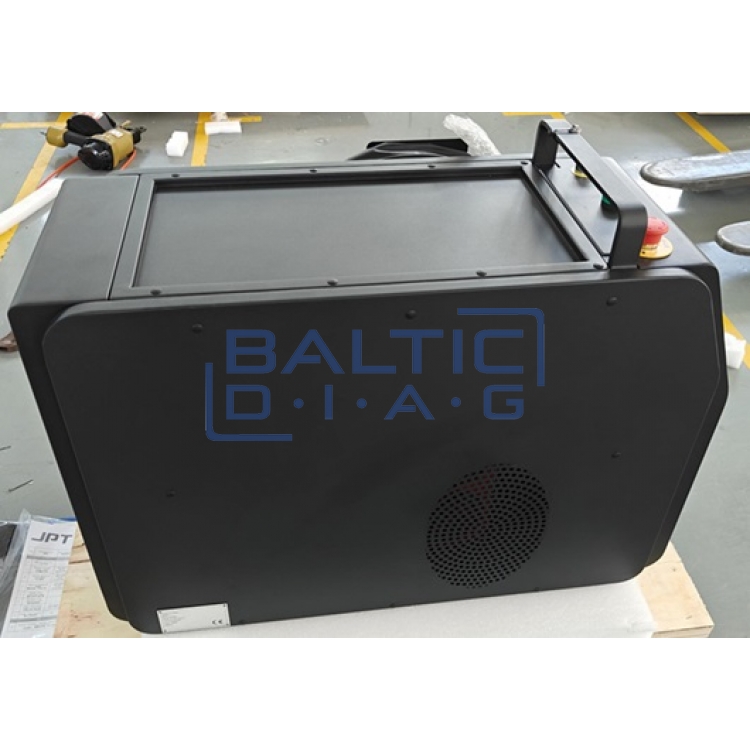

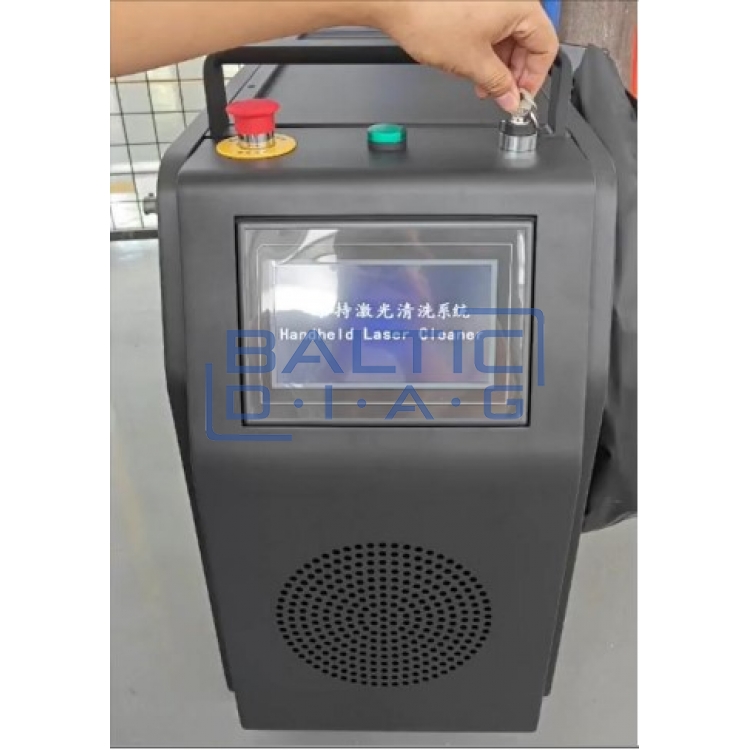

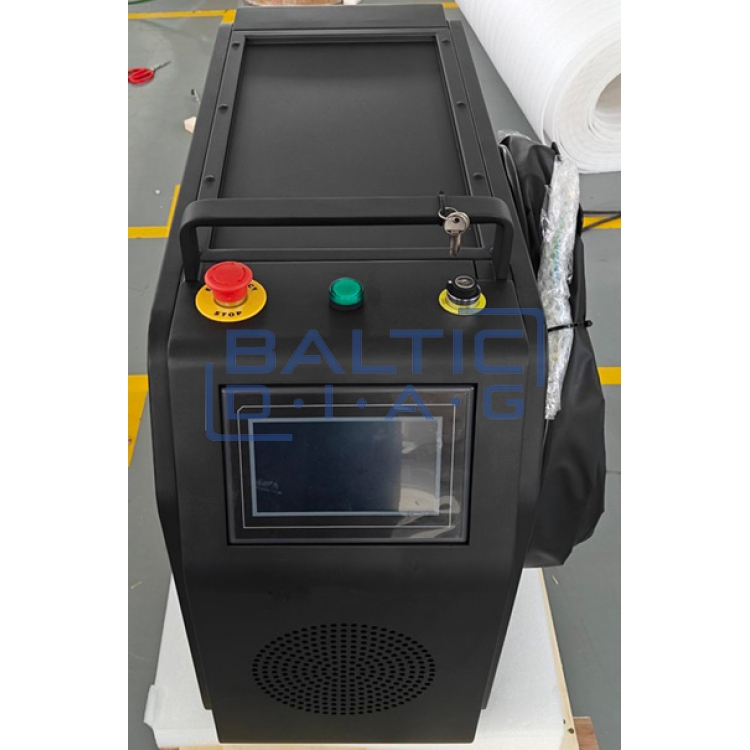

Pulsed laser cleaning device

This device uses an oscillating laser cleaning method, which ensures better cleaning efficiency and high resistance to damage. Supports 8 cleaning modes and 10 safety alarm systems, is more stable and has a variety of communication capabilities. It uses a high-speed galvanometric motor and supports cables up to 50 m long. It can also switch 15 languages, allowing easy communication with users in different countries

Technical parameters:

Laser power: 100 W
Laser source manufacturer: JPT
Wavelength: 1070 nm
Fiber cable length: 5 m
Cooling method: Air cooling
Working temperature: 15 ~ 35 ℃
Recommended cleaning thickness: 0-300 μm
Main voltage: AC 220V
Power consumption: 600 W
Gun weight: 850 g

Power	Material	Cleaning speed	Cleaning width	Cleaning depth	Cleaning efficiency
100 W	Surface rust	20 mm/s	130 mm	20 μm	3,5 m2/h
100 W	Paint	20 mm/s	130 mm	80 μm	2,0 m2/h
100 W	Rust	20 mm/s	130 mm	100 μm	1,5 m2/h
200 W	Surface rust	20 mm/s	130 mm	20 μm	6 m2/h
200 W	Paint	20 mm/s	130 mm	80 μm	2,5 m2/h
200 W	Rust	20 mm/s	130 mm	100 μm	2,0 m2/h
300 W	Surface rust	20 mm/s	130 mm	20 μm	9,0 m2/h
300 W	Paint	20 mm/s	130 mm	80 μm	4,0 m2/h
300 W	Rust	20 mm/s	130 mm	100 μm	3,0 m2/h
