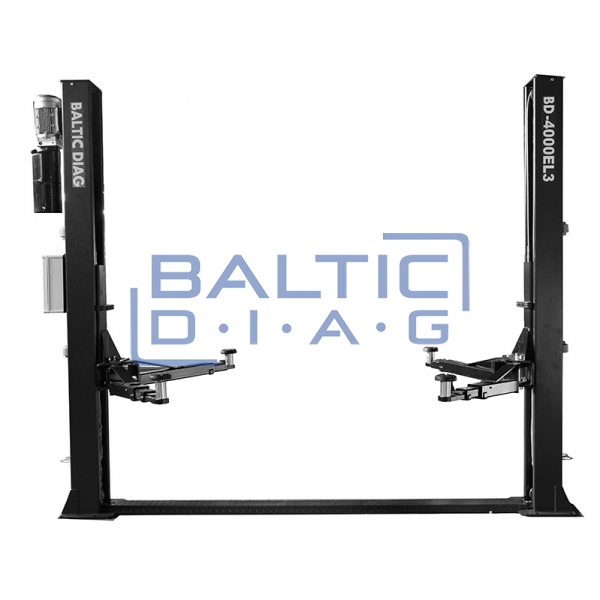

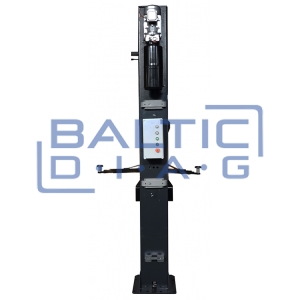

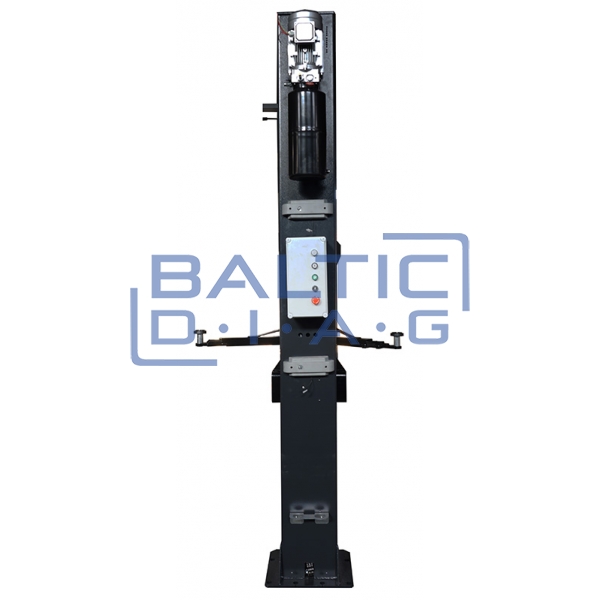

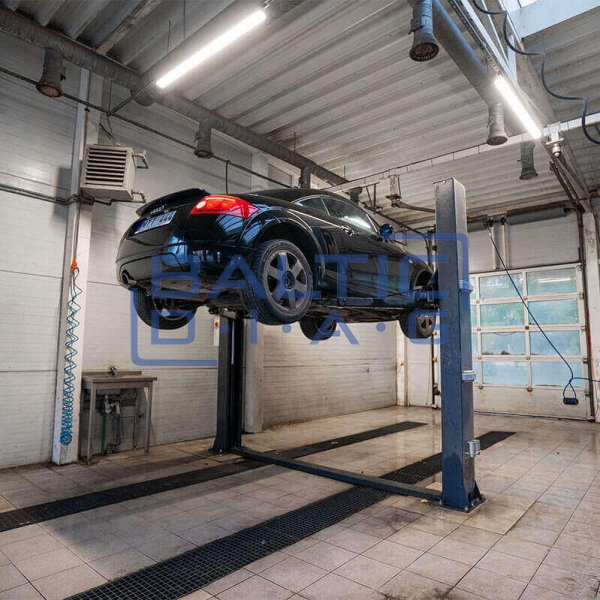

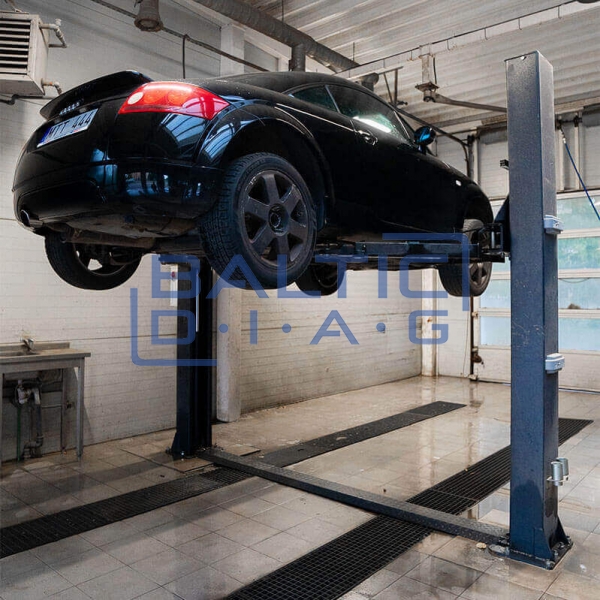

Two-post lift with electromagnetic locking 4T BD-4000EL3

Warranty period – 24 months

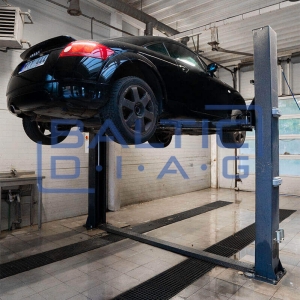

Professional two-post lift with electromagnetic arm locking, designed for lifting passenger cars and minibuses. Synchronization is performed at the bottom, and hydraulic pressure is supplied via a pump and regulated by electromagnetic valves. The lifting cylinders are mounted directly on the arms, ensuring direct and stable lifting. Reinforced arm carriage and automatic fall protection ensure safe operation even in case of failure.


Features:

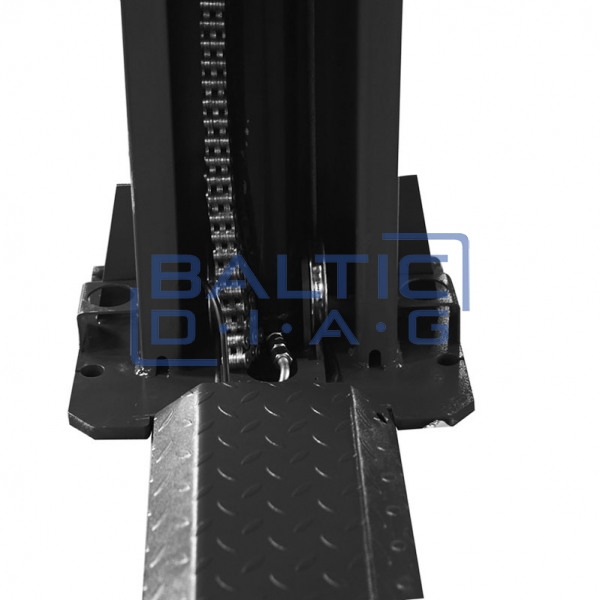

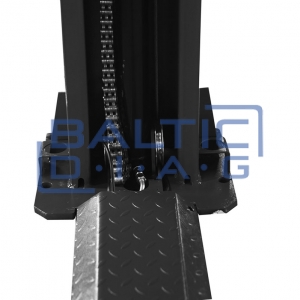

  • Bottom synchronization

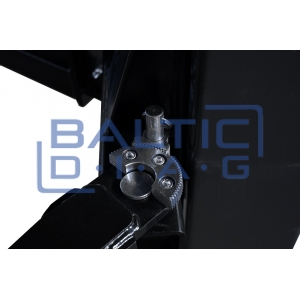

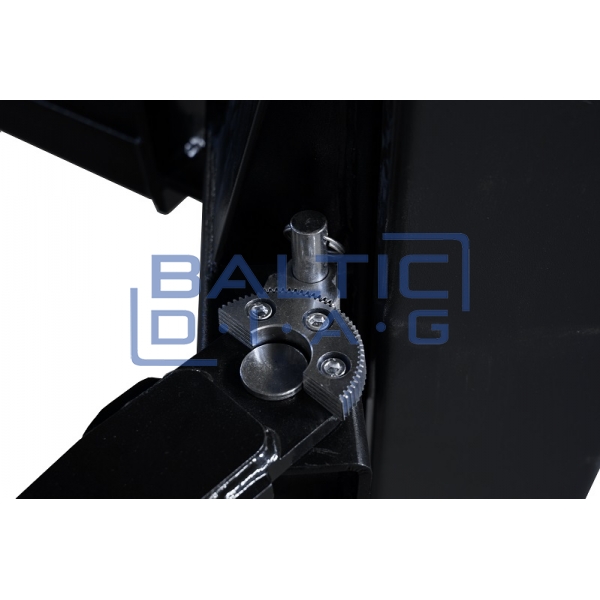

  • Electromagnetic arm unlocking
  • Hydraulic pressure regulation by electromagnetic valves
  • Direct arm lifting with cylinders

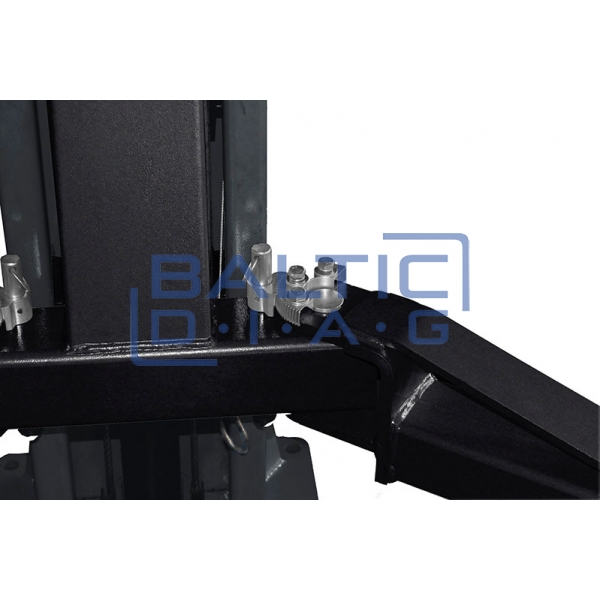

  • Automatic activation of safety locks during lifting
  • Reinforced arm carriage
  • CE certification

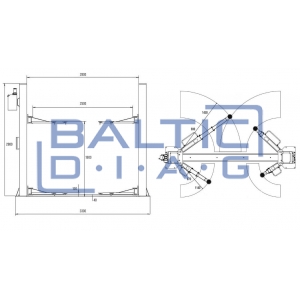

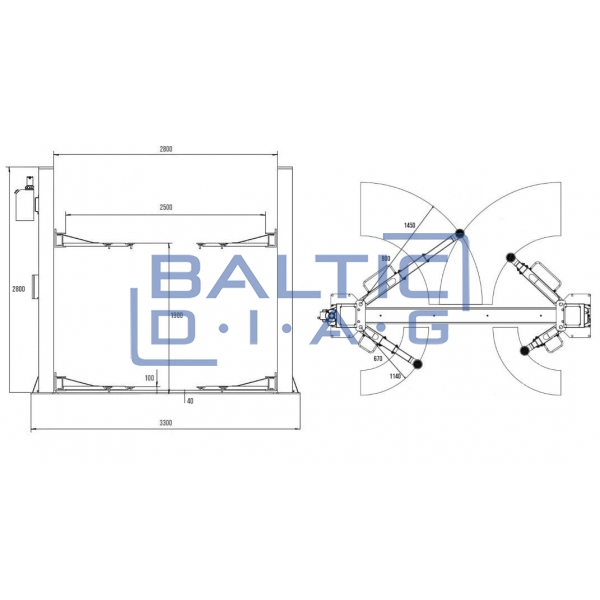

Technical specifications:
  • Lifting capacity: 4000 kg
  • Lifting time: 45 s
  • Lifting height: 1900 mm
  • Overall width: 3300 mm
  • Width between posts: 2800 mm
  • Post height: 2800 mm
  • Maximum vehicle width serviced: 2500 mm

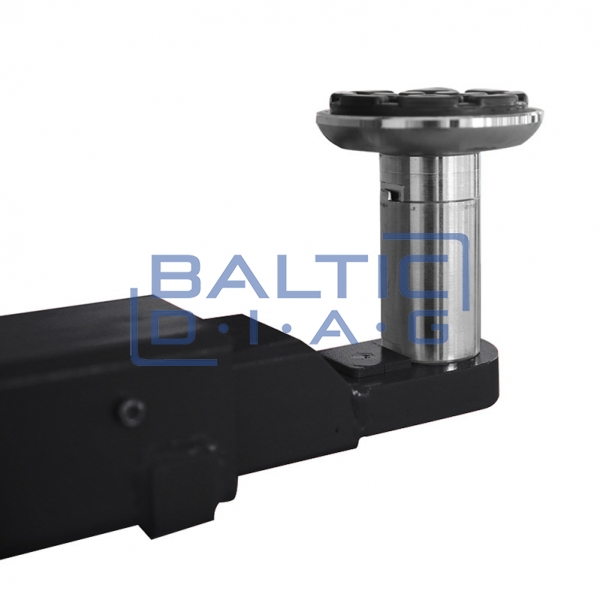

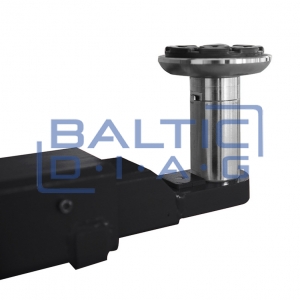

  • Minimum pad height: 100 mm

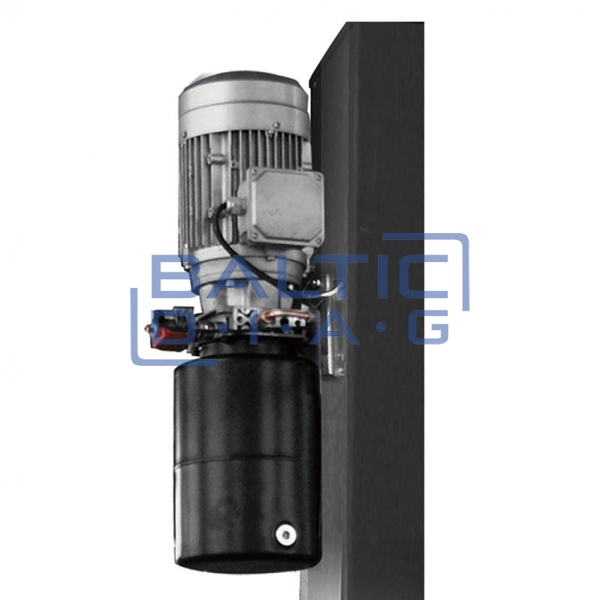

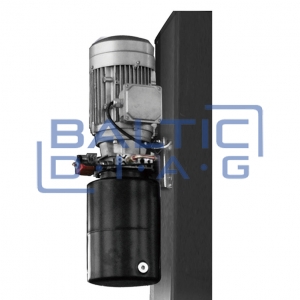

  • Motor power: 2.2 kW
  • Power supply: 400 V / 50 Hz / 3 phases
  • Color code: RAL7021
  • Arm protection: electromagnetic unlocking

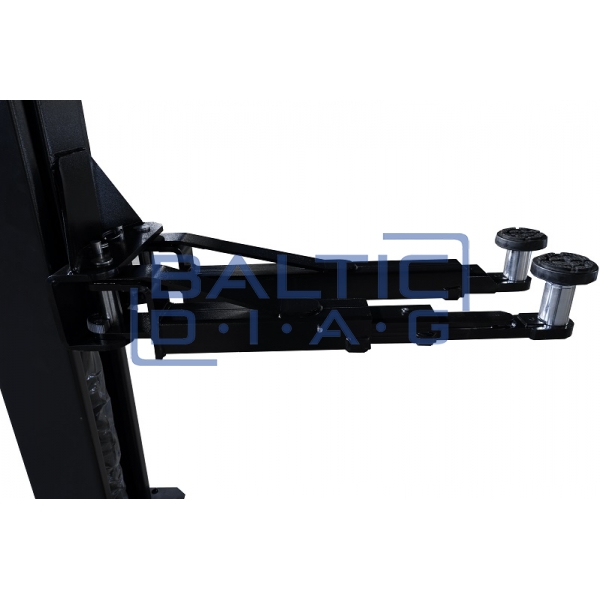

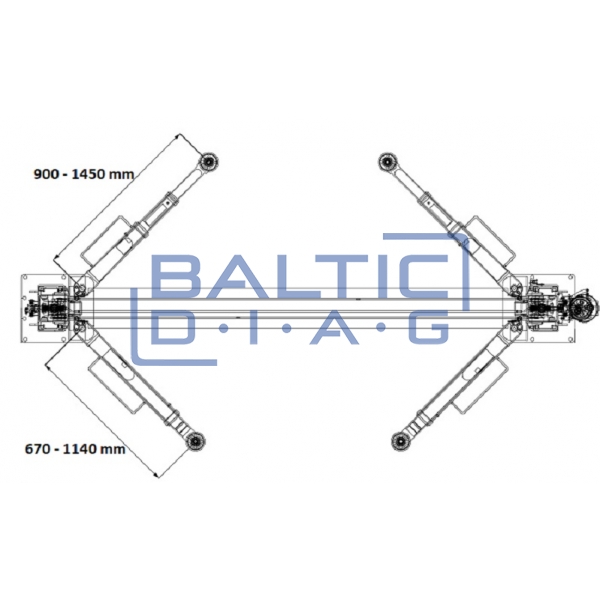

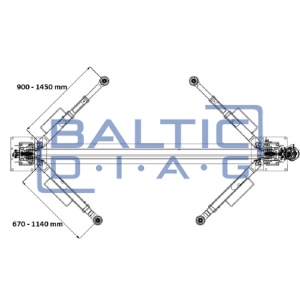

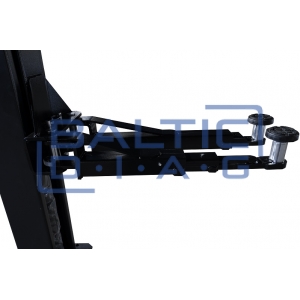

  • Long arm length: 900-1450 mm (2-stage)
  • Short arm length: 670-1140 mm (3-stage)
