Description

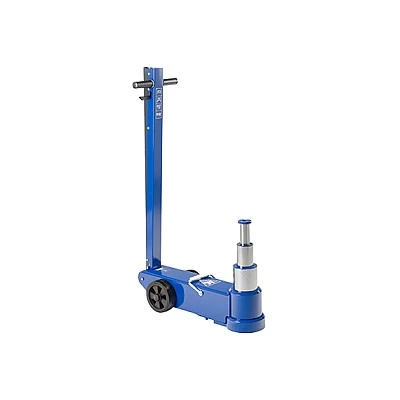

Pneumatic-hydraulic jack for high-base machines AC Hydraulic 50-3H


AC-Hydraulic, Denmark; Warranty: 3 years for hydraulics and 10 years for body parts

Three-step pneumatic-hydraulic jack for high ground vehicles

Description:

- Minimum height 220 mm, maximum height 560 mm
- Designed for heavy, heavy commercial use
- Integrated safety relief valve
- Manual emergency control for optimum safety during lifting and lowering
- Manufacturer: Denmark
- Warranty: 3 years

Technical parameters:

- Lifting capacity: 50/25/10 tonnes
- Minimum height: 220 mm
- Max height: 340/450/560 mm
- Body length: 810 mm
- Handle length: 1355 mm
- Width: 200 mm
- Width (with wheels): 310 mm
- Required compressed air pressure: 9 - 12 bar
- Required compressed air flow: 350 L / min
- Weight: 73 kg

Additional equipment:

- F250: extension, 250 mm
- FW: nozzle for bolting and so on.
- FW1: nozzle for lifting under various axles
