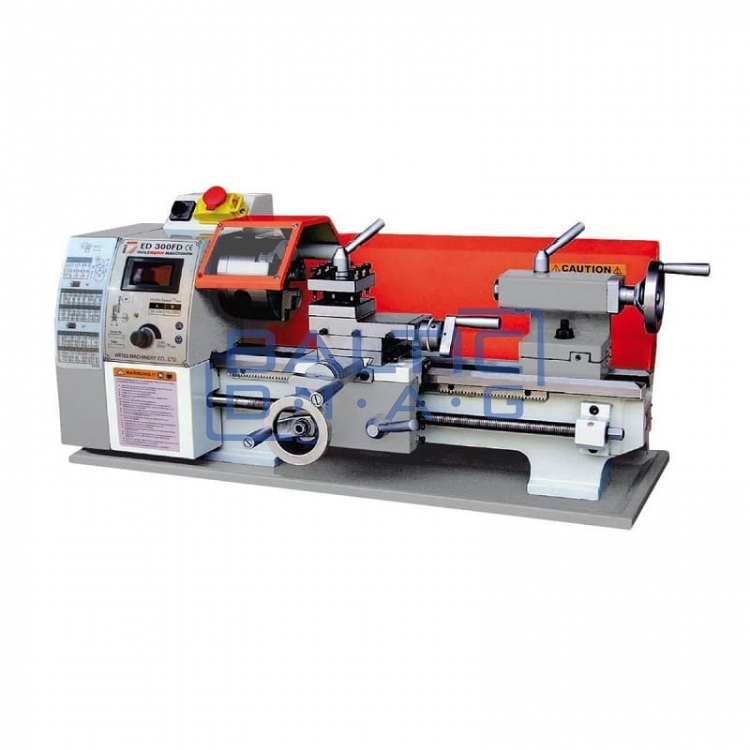

Metal lathe Holzmann ED300FD

Metal lathe Holzmann ED300FD

Manufacturer: Holzmann (Austria)

Features:

Smooth transmission of engine power ensures constant torque

CW/CCW operation mode

Tailstock - can be adjusted for taper rotation

Powerful, low-maintenance motor with low-voltage switch

Directional, conveniently adjustable via V-shaped axles

Hardened and precisely ground prism guides for professional work

Hardened main shaft with adjustable tapered roller bearings

Maximum rotation accuracy

Complete with metal shift gears for exceptionally wide thread cutting range

The speed is adjustable gradually - the speed can be conveniently read on the digital screen

Complete set: 3-piece turning chuck Ø 100 mm, 4-way turning column, MT3 and MT2 turning part, chuck guard, chip tray, gear changing tool, other tools

Technical data:

Motor power s6: 630 W

Motor power s1: 450 W

Power supply: 230V

Dimensions: 740 x 390 x 370 mm

Lathe width: 100mm

Shaft hole: 21 mm

Shaft taper: MK3/MT3

Tailstock taper: MK2/MT2

Max. rotation: 110 mm

Spindle speed min-1: 50-2500

Thread range: (18 S) 0.5-3 mm/r

Inch thread range: 8-44

Tailstock travel: 60mm

Transverse feeding stroke: 75 mm

Compound turning stroke: 55 mm

Distance between centers: 300 mm

Max. space above the lathe base: 180 mm

Net weight: 60 kg

Gross weight: 65 kg
