Name: Electro-hydraulic self-propelled loader 1600 kg NH Handling SKS1643FL-P
Brand: NH Handling
SKU: 8341643
Price: 18520.00 EUR
Availability: InStock

Electro-hydraulic self-propelled loader 1600 kg NH Handling SKS1643FL-P

Pre-order

18,520.00€

Ex Tax: 15,305.79€

Manufacturer:: NH Handling
SKU: BD99846

NH Handling

Prices include VAT

Qty

Add to Cart

Add to Wish List

Want to buy or learn more?

Fill out the inquiry form

Information

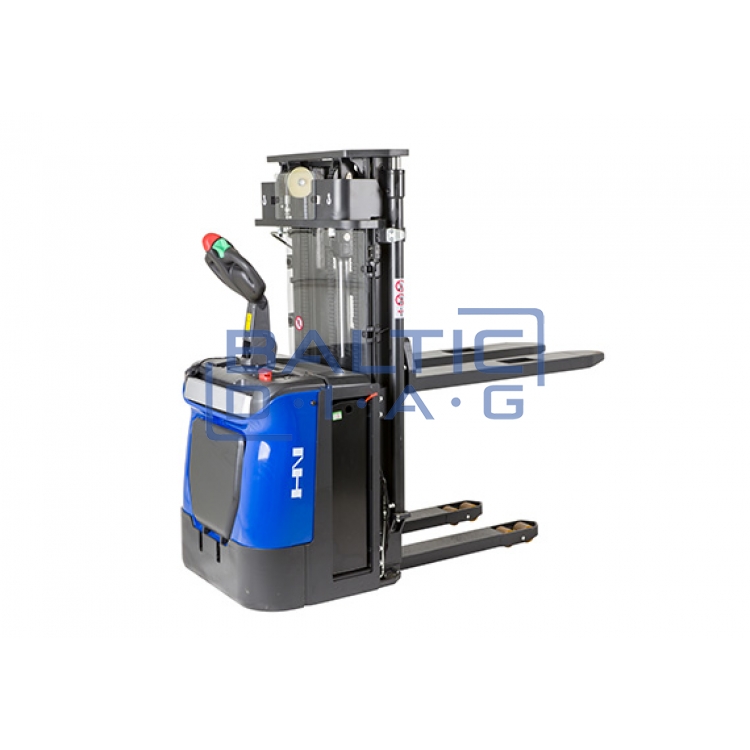

Electric Self-Propelled Electro-Hydraulic Stacker 1600 kg NH Handling SKS1643FL-P

Country of origin: Denmark, warranty period - 36 months

The NH Handling SKS1643FL-P is a reliable electric self-propelled electro-hydraulic stacker designed for safe and efficient material handling in warehouses and production facilities. With a lifting capacity of 1600 kg and a lifting height of 4300 mm, this unit is ideal for working with medium-height racking systems. The free lift function allows forks to be raised up to 1420 mm without increasing the overall height of the stacker – a crucial feature for operation in low-clearance spaces. Built-in safety features, ergonomic controls, and an integrated charger ensure user-friendly and safe operation.

Functions:

Free lift function – forks can be raised without changing the stacker’s overall height
Foldable standing platform with safety bars
Ergonomically positioned control elements on the tiller handle
Pulse control – sensitive and precise response
Automatic braking when the tiller is released
Anti-roll-back protection during lifting
Integrated 230 V / 35 A charger

Technical specifications:

Lifting capacity: 1600 kg
Lifting function: electric hydraulic
Drive motor: Schaubmuller
Battery: 24 V / 240 Ah
Lifting height: 4300 mm
Overall height: 4780 mm
Fork lifting height: 2008 mm
Free lift: 1420 mm
Fork width: 570 mm
Travel speed without load: 7 / 6 km/h
Lifting speed with / without load: 13 / 20 mm/s
Gradeability with / without load: 6 / 12˚
Fork wheel diameter: Ø 85 x 75 mm
Steering / drive wheel diameter: Ø 230 x 54 mm
Support wheel diameter: Ø 150 x 54 mm
Weight: 1303 kg
