Preparation camera BD-5500

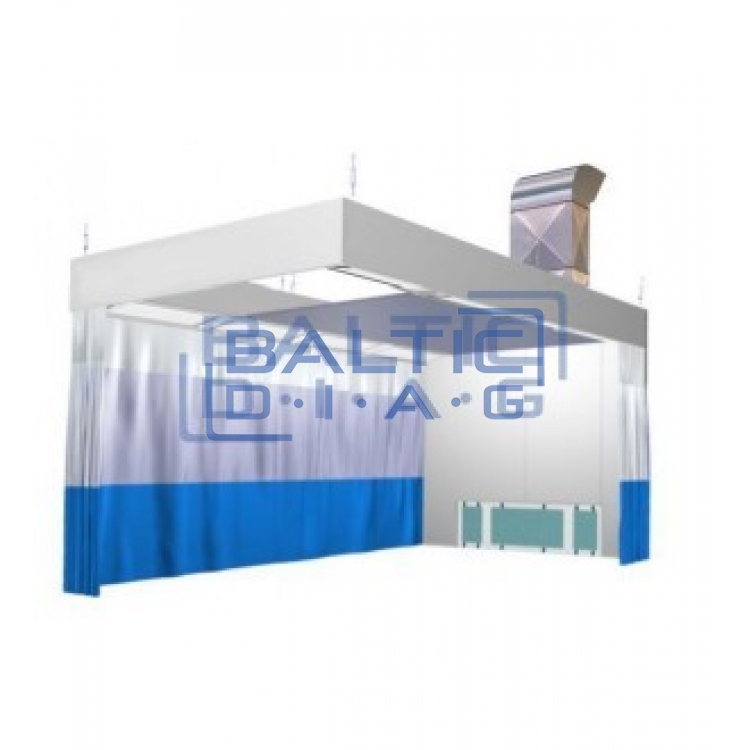

Preparation Booth BD-5500

Features:

• A powerful 5.5 kW intake fan ensures efficient air circulation.
• Ceiling-mounted 32 Philips lamps provide high-quality lighting for optimal visibility during work.
• The filtration system with a fiberglass filter removes dust and impurities.
• Flexible installation: can be ceiling-mounted or supported by columns.
• Customizable voltage options upon request.

Technical specifications:

• External dimensions: 7550 x 3550 x 3200 mm
• Internal dimensions: 6300 x 3450 x 2800 mm
• Total power: 7 kW
• Rear wall: EPS panel coated with powder paint, thickness 50 mm, steel 0.4 mm
• Flooring: None (uses existing room floor)
• Intake fan: 1 unit, 5.5 kW
• Filtration system: Fiberglass filter
• Fan capacity: 16,000 m³/h
• Air extraction: Through the rear wall
• Lighting: 32 ceiling-mounted lamps, 36 W Philips
• Installation: 6 supporting columns or ceiling-mounted
• Power supply: 380 V / 50 Hz / 3-phase (voltage can be adjusted upon request)
• Motor: Direct start
