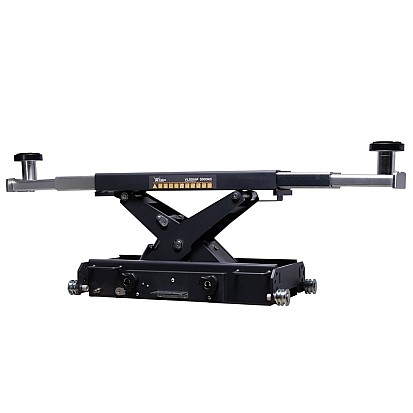

Pneumo-hydraulic jacking beam 3 tons

Pneumo-hydraulic jacking beam 3 tons

Manufacturer: Falco Sallevatori, Netherlands

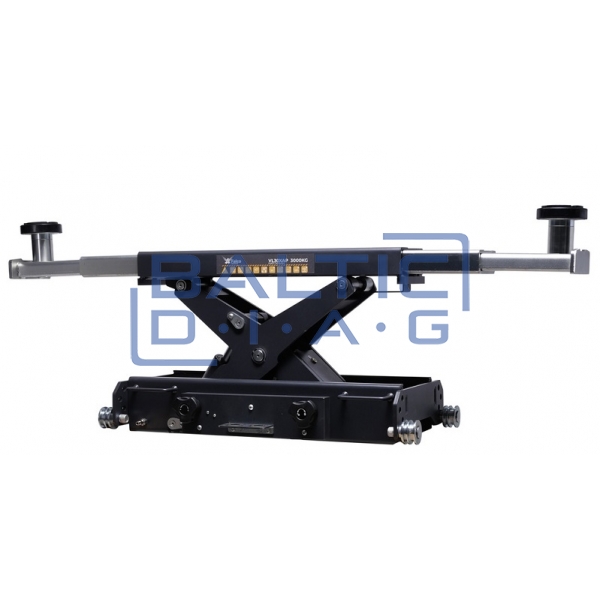

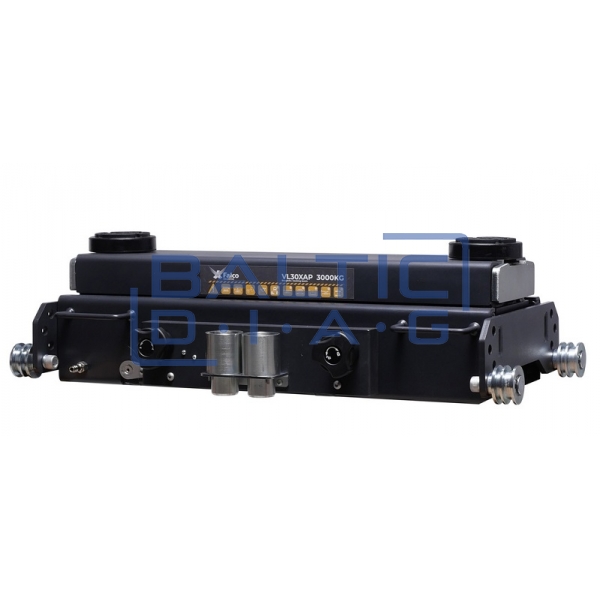

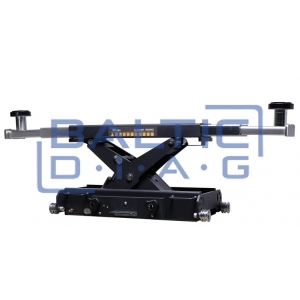

This air operated hydraulic jacking beam from Falco Sollevatori is an great addition for any four column & scissor lift installed in car workshops used for conducting maintenance.The jack can be easily installed and positioned thanks to the special ballbearing steel rollers, which have a universal adjustable position.The Falco jacking beam has an integrated two-stage pump, this system provides an automatic fast lifting stroke without weight and a slow controllable stroke when the jacking beam is lifting the vehicle.

The adapter plates are reversible so the jacking beam can have a min. height of only 95 mm which makes it suitable for low cars and sport cars.

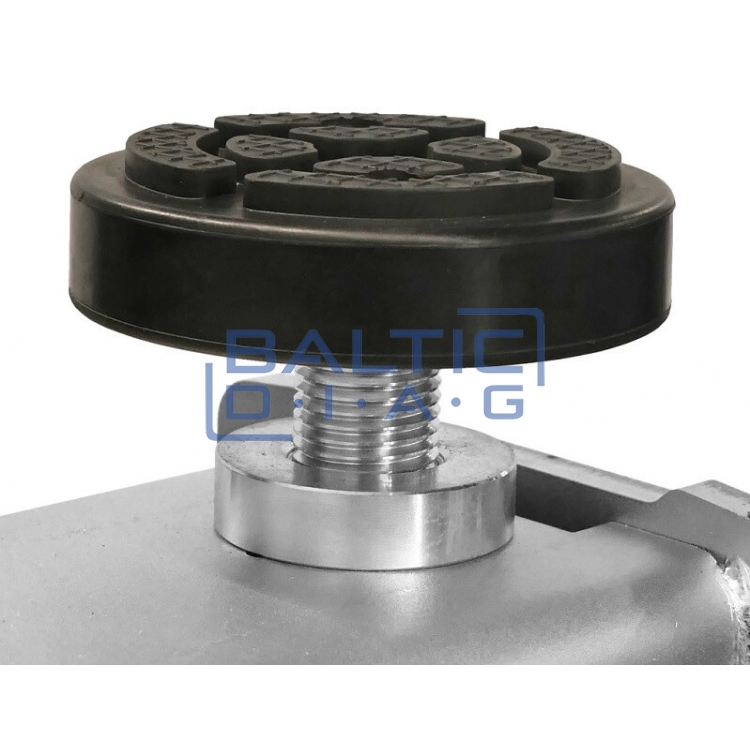

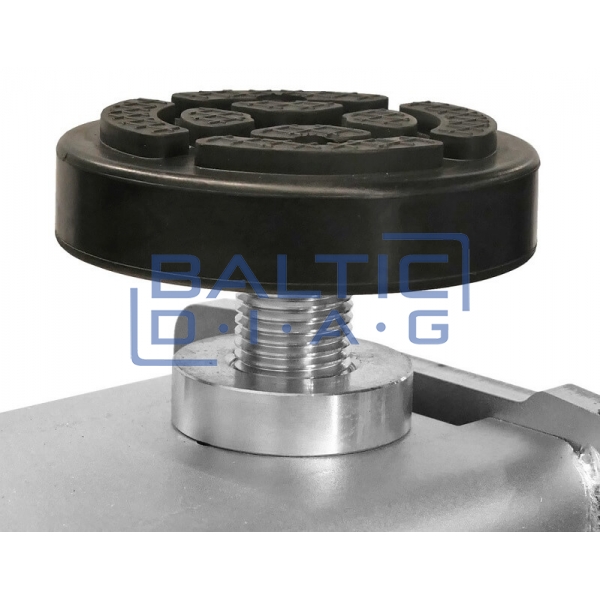

It comes with adjustable saddles with screw extension and cup-shaped height adapters to increase the lifting height, it’s equipped with rubber lifting pads for protection of the car body.

With the two-speed lowering system, a loaded car can be safely lowered with minimal decrease in speed.Once the load is of the jacking beam the lowering speed will automatically increase to work efficiently and more safe.

Technical parameters:

• Used air pressure: 7.5 - 12 bar
• Lifting capacity: 3000 kg
• Minimum lifting height: 215 mm
• Maximum lifting height: 465 mm
• Stroke: 270 mm
• Lengths of telescopic arms: 780 – 1610 mm
• Lift width with attachments: 900 – 1318 mm
• Platform dimensions: 755 x 191 mm
• Height of adapters: 65 mm
• Axle lift length: 410 mm
• Axle lift width: 910 mm
• Axle lift height: 230 mm
• Axle lift weight: 157 kg
