Electric press with hand winch 150 ton Mammuth

Electric Press with Hand Winch 150 Ton Mammuth

Country of origin: Netherlands, warranty period – 24 months

Please note: The device is delivered without hydraulic oil (requires OCH22 – 29 liters) and without press blocks!

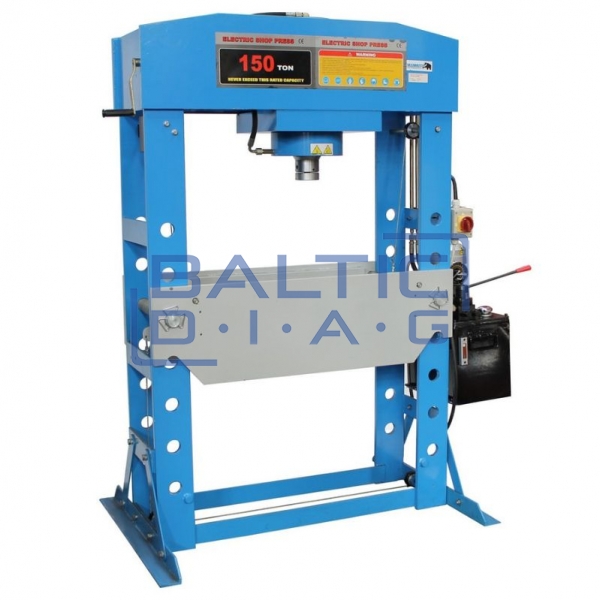

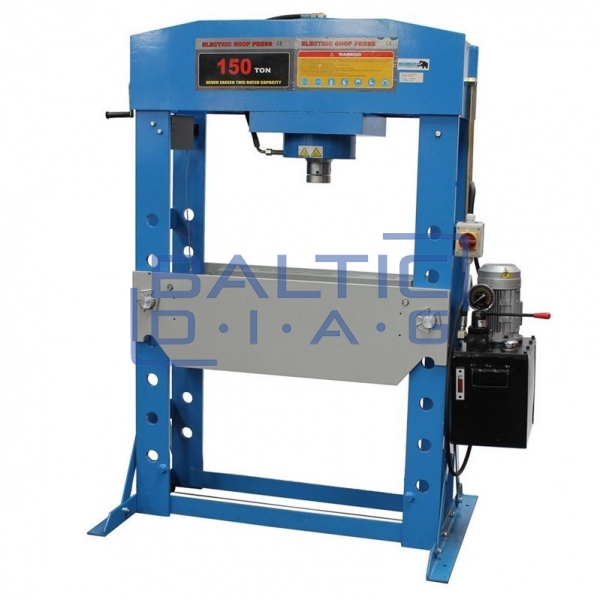

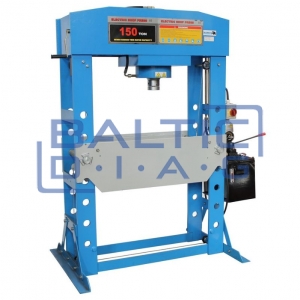

The 150-ton electric Mammuth press is an extremely powerful and versatile device designed for professional use in a variety of workshops. With its fully welded construction and the ability to operate both manually and via foot pedal, this press provides speed, power, and precision even during the most demanding tasks. It is perfectly suited for pressing, assembling, or disassembling various heavy-duty mechanical components. The press is also equipped with a safety grille for additional protection during operation.

Features:

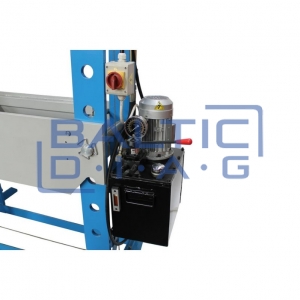

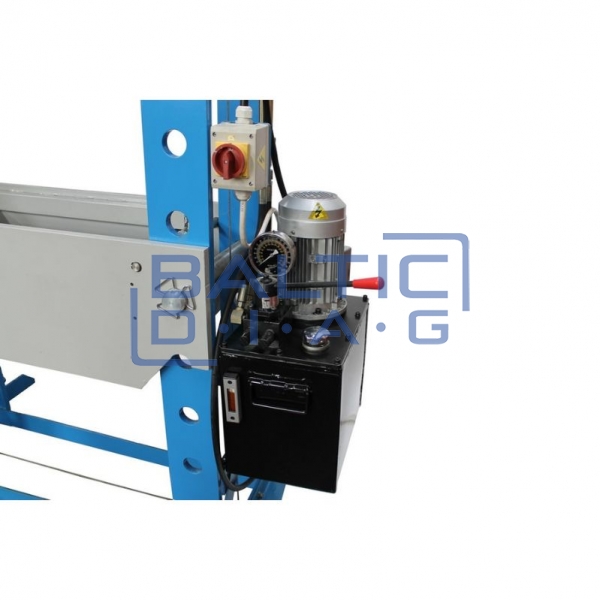

• Electric operation – fast and effortless work without physical strain

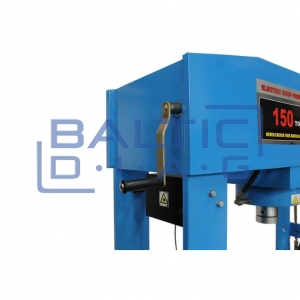

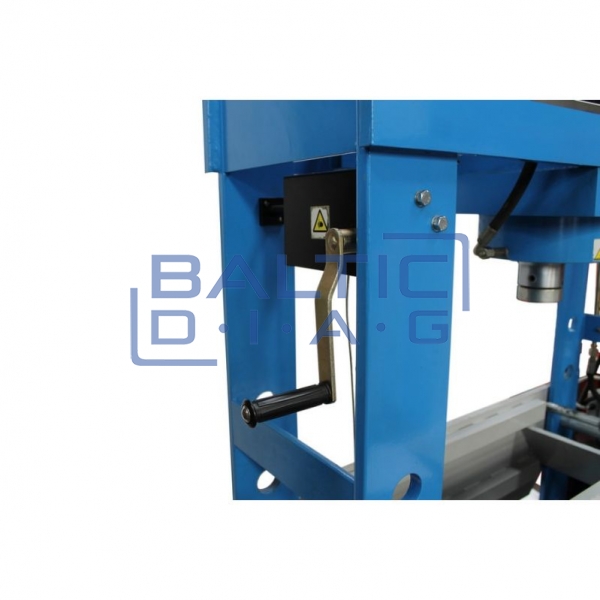

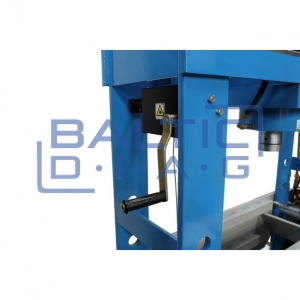

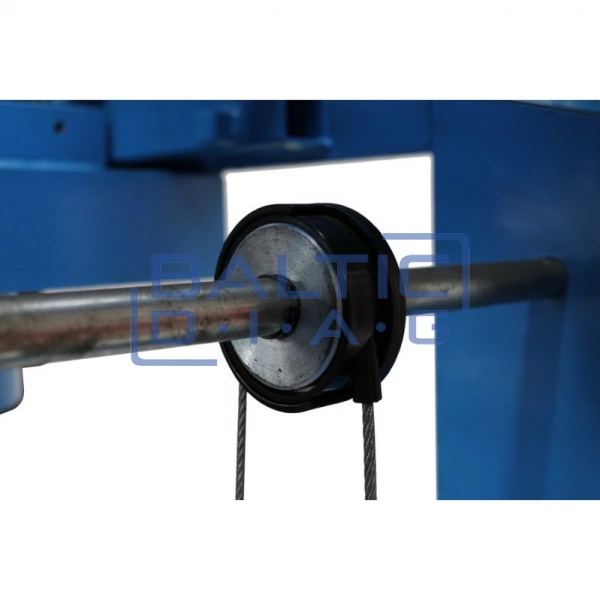

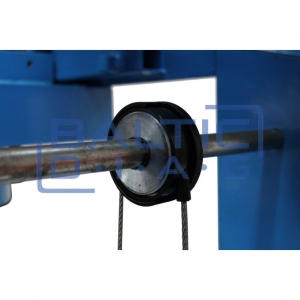

• Hand winch – the workbed can be adjusted to 7 height positions; the cylinder can be adjusted laterally
• Interchangeable cylinder cap – easily detachable and compatible with various attachments
• Safety grille – ensures extra protection during operation
• Foot pedal – allows for hands-free operation

Technical Specifications:

• Pressing force: 150 tons
• Workbed width: 1000 mm
• Workbed depth: 414 mm
• Minimum working height: 64 mm
• Maximum working height: 889 mm
• Cylinder stroke: 350 mm
• Cylinder diameter: Ø98 mm
• Voltage: 400 V
• Motor power: 1.5 kW
• Motor speed: 1400 rpm
• Pressing speed (outgoing): 2.3 mm/s
• Pressing speed (incoming): 3.8 mm/s
• Oil capacity: 29 L
• Oil type: OCH22

Product Dimensions:

• Length: 1453 mm
• Width: 1195 mm
• Height: 2100 mm
• Weight: 1200 kg

Packaging Dimensions:

• Length: 2550 mm
• Width: 1370 mm
• Height: 850 mm
• Weight with packaging: 1287 kg
