Pneumatic-hydraulic axle lift AC Hydraulic FL60-1

SKU: BD13330
SKU:: FL60-1

Price

3,690.50 €

Price in store with tax

3,690.50 €

AC-HYDRAULIC

Prices shown include tax

Add to Cart

Send Message

Description

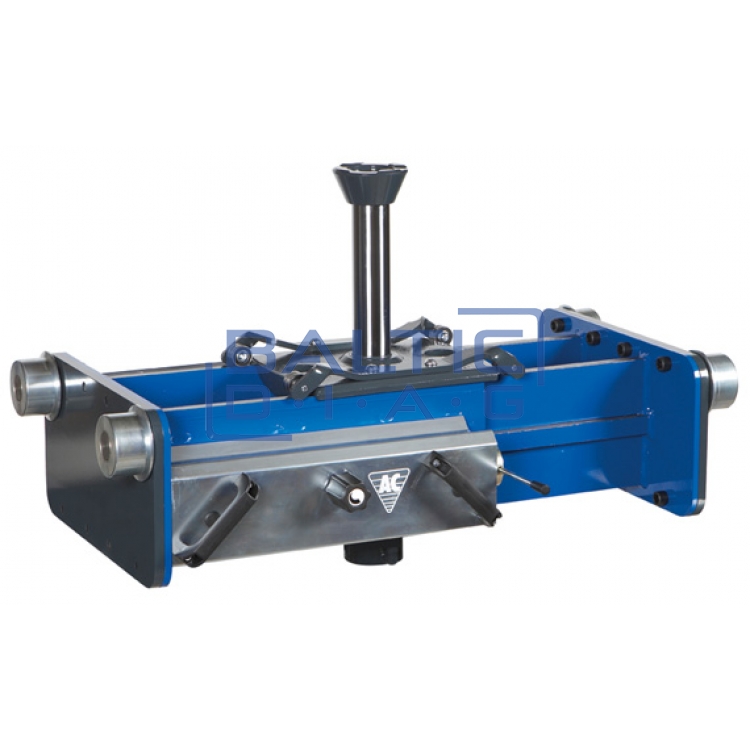

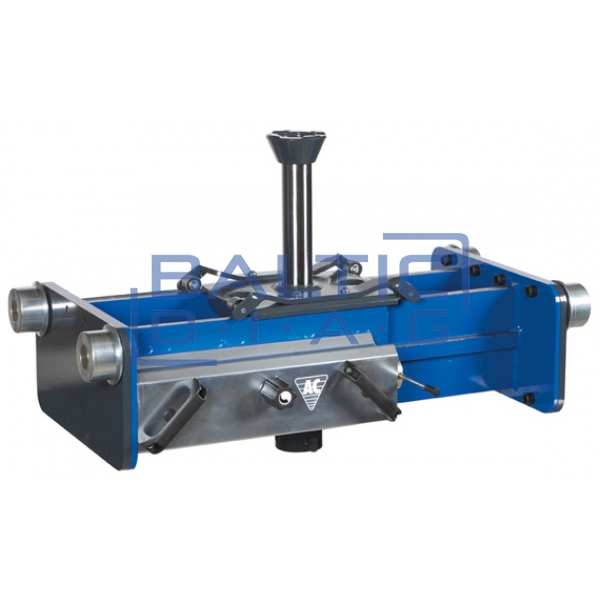

Pneumatic-hydraulic axle lift AC Hydraulic FL60-1

AC-Hydraulic, Denmark; Warranty: 3 years for hydraulics and 10 years for body parts

Standard pneumatic-hydraulic single cylinder axle lift for trucks

Description:

- Fast and accurate pneumatic-hydraulic axle hoist with high-speed cylinder

- Simple modern design with control panel and ergonomic working height

- Can be adapted for use with all trucks due to its adjustable body

- The height of the casing is adjusted and adjusted according to the customer's requirements

- Sliding cylinder

- Emergency release and overload valve for optimum safety

- Supplied with 1 x 100 mm extension

- Manufacturer: Denmark

- Warranty: 3 years

Technical parameters:

- Lifting capacity: 6 tonnes

- Stroke of piston: 200 mm

- Min. height: 305 mm

- Max. Height: 505 mm

- Lift width: 590 - 1410 mm

- Depth of lift: 665 mm

- Required compressed air pressure: 8 - 12 bar

- Required compressed air flow: 350 L / min

- Weight: 200 kg
