Horizontal bending press PPHB-28NC RHTC

Horizontal Bending Press PPHB-28NC RHTC

Country of origin: Netherlands, warranty period – 24 months

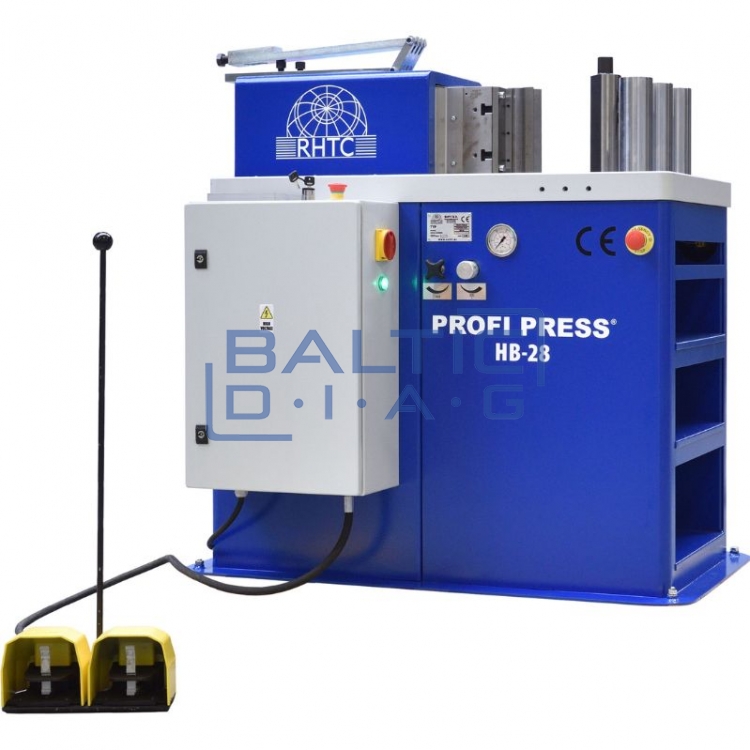

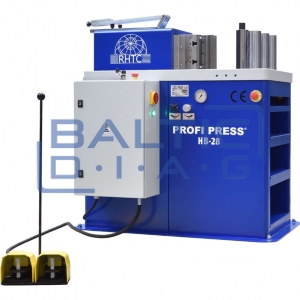

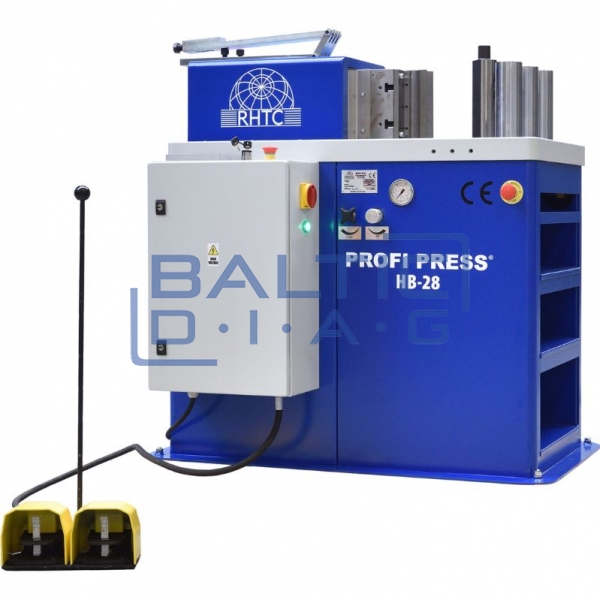

The 28-ton horizontal hydraulic press PPHB-28NC is a universal cold metalworking machine designed for bending, straightening, notching, cutting, and forming. Thanks to the NC control system, the operator can precisely set the piston stroke and save up to 100 working cycles. The press comes with a standard tooling set (tool holder and back gauge). It features a compact design, a sturdy table with an angular measuring scale, and is ideal for various metalworking tasks in workshops.

Features:

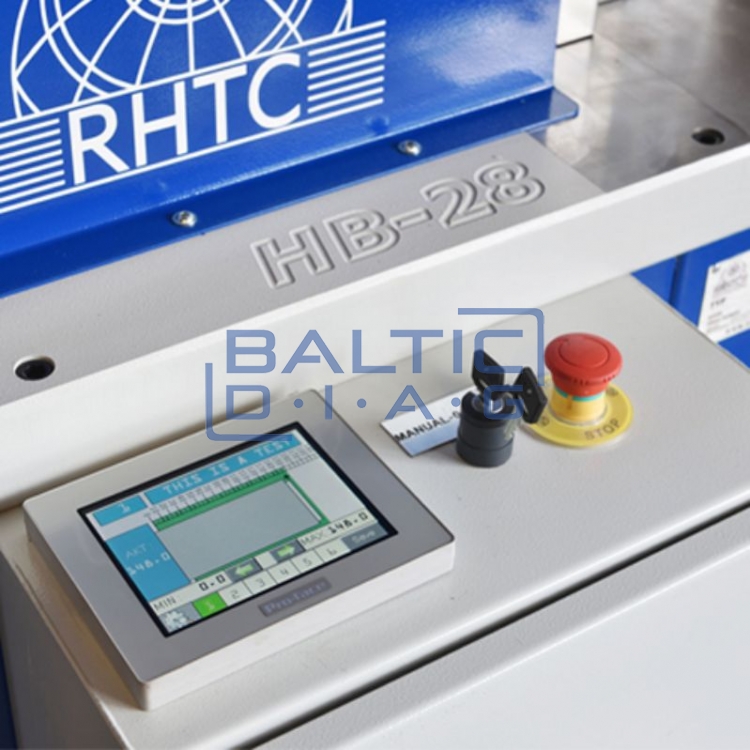

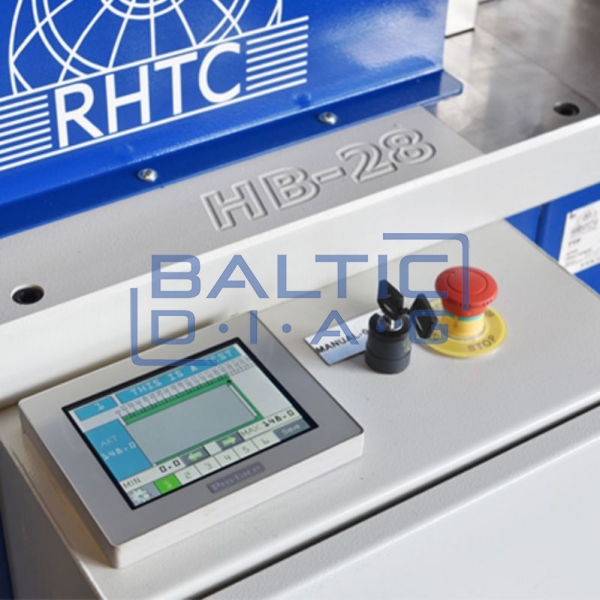

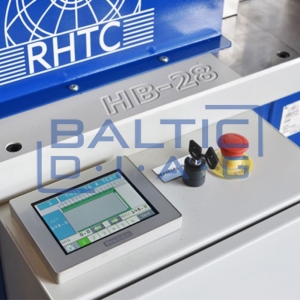

• NC control for setting piston stroke and saving up to 100 programs
• Selector for manual or semi-automatic operation
• Flow adjustment valve and pressure control valve
• Integrated pressure manometer

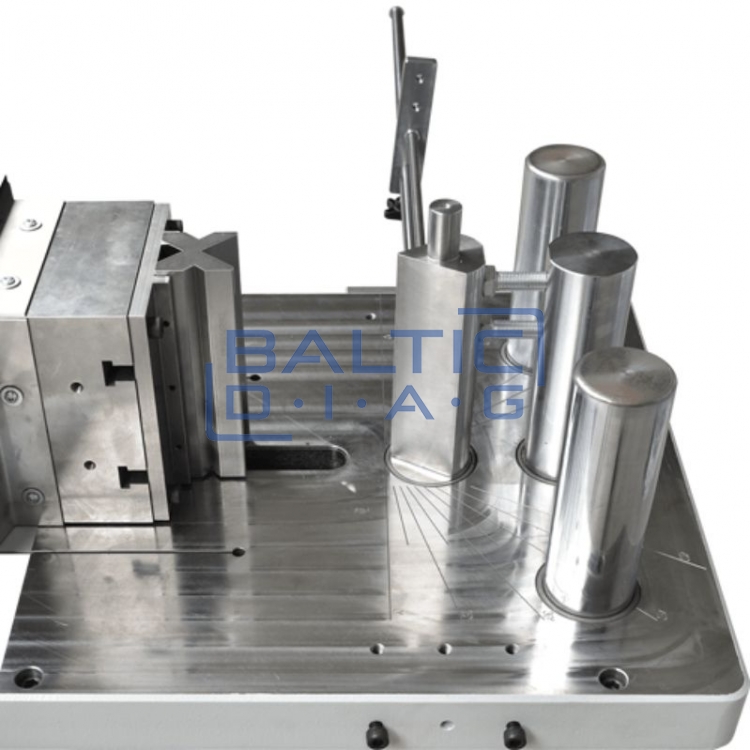

• Worktable with angular graduation
• Back gauge (adjustable stop)
• Possibility to use various tools: on the table, on the holder, in punch or pin holes

Technical Specifications:

• Pressing force: 28 t
• Motor power: 3 kW
• Piston stroke: 192 mm
• Piston diameter: 130 mm
• Oil delivery: 6 l/min
• Minimum working speed: 1 mm/s
• Maximum working speed: 9.8 mm/s
• Return speed: 12.8 mm/s
• Maximum pressure: 250 bar
• Useful table size (L × W): 300 × 550 mm
• Bending capacity (flat steel): 200 × 10 mm
• Total length: 1150 mm
• Total height: 1103 mm
• Working width: 750 mm
• Weight: 800 kg
