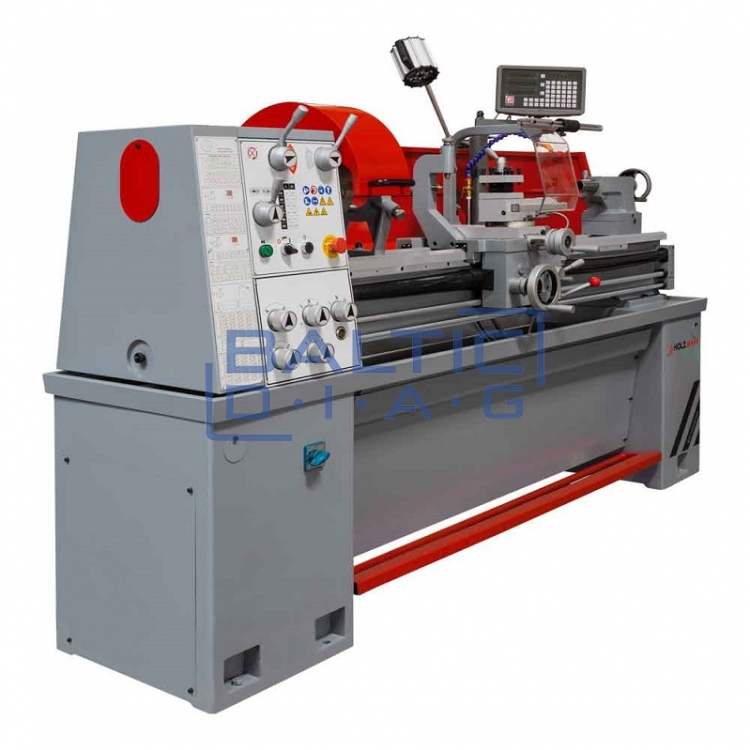

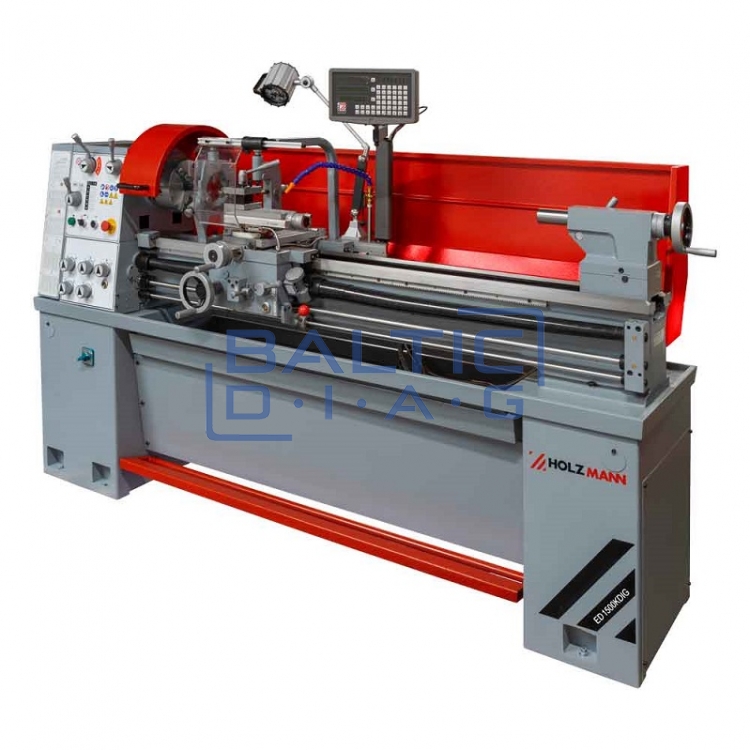

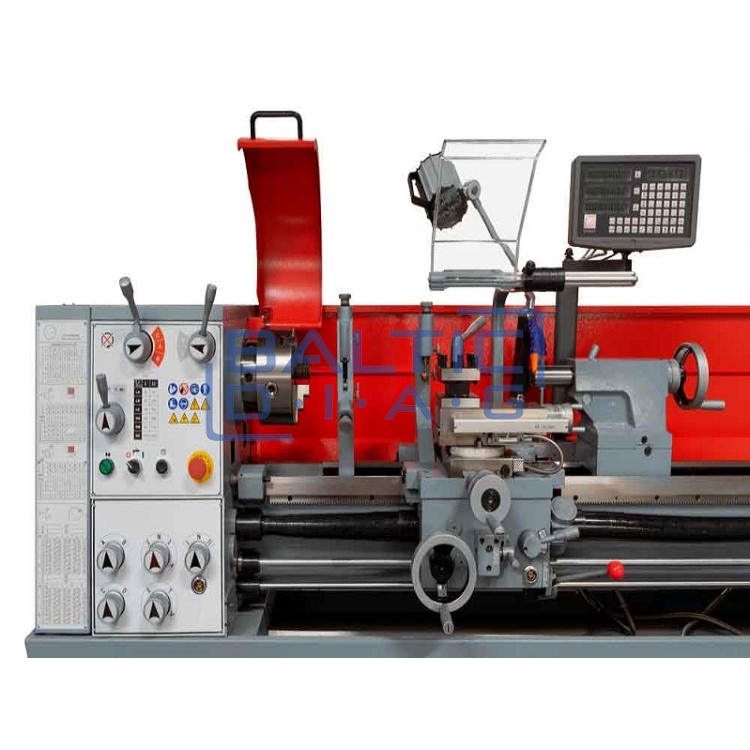

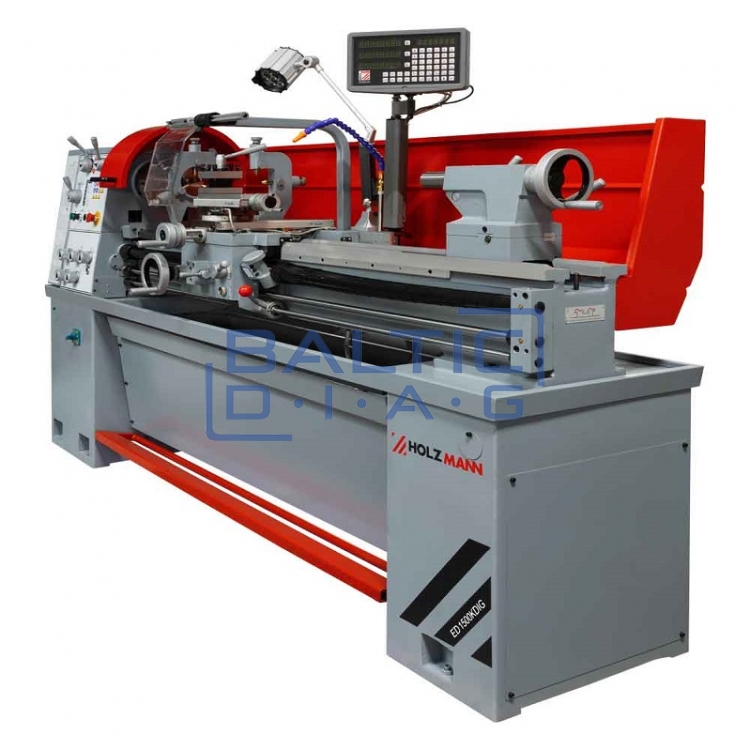

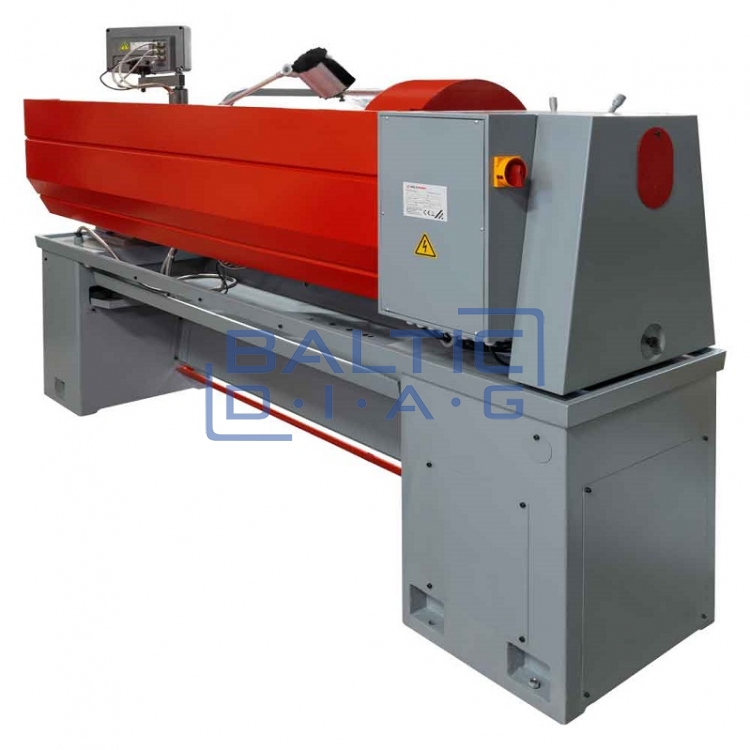

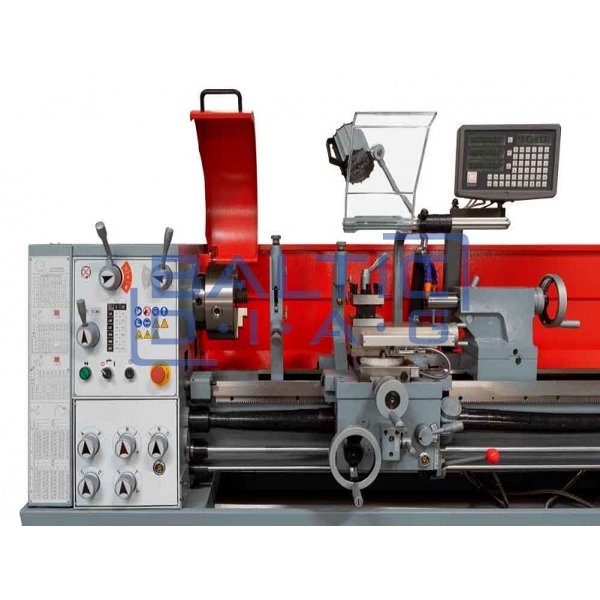

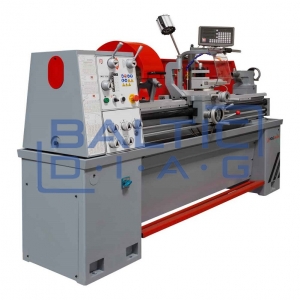

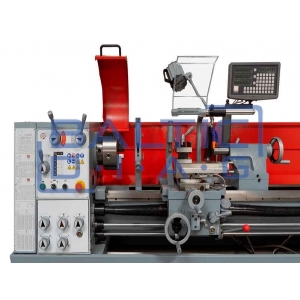

Metal Lathe with 3-Axis Digital Readout (DRO) ED1500KDIG_400V

Metal Lathe with 3-Axis Digital Readout (DRO) ED1500KDIG

Features:

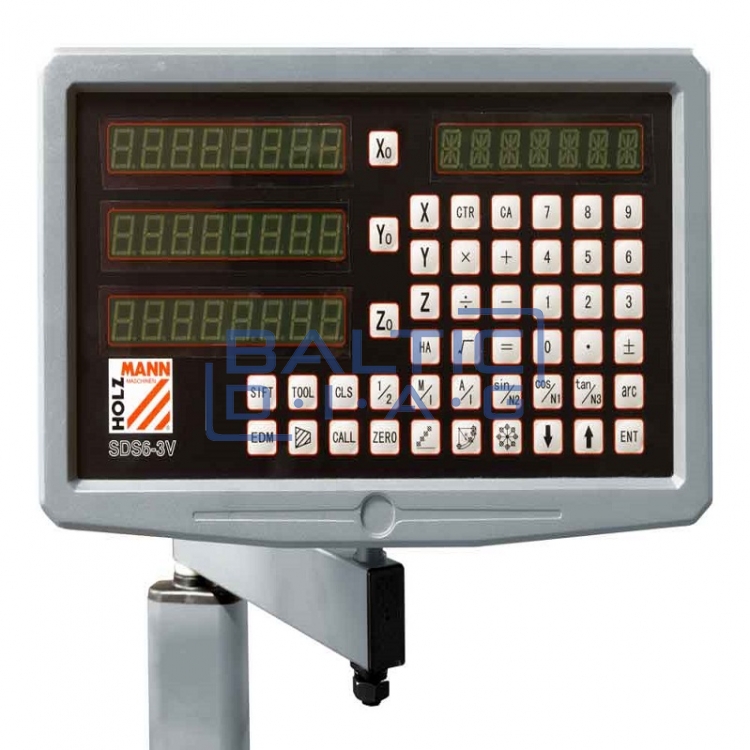

• 3-axis digital readout for easy operation.
• Electromagnetic foot brake for enhanced safety.
• Induction-hardened and precision-ground prismatic guides.

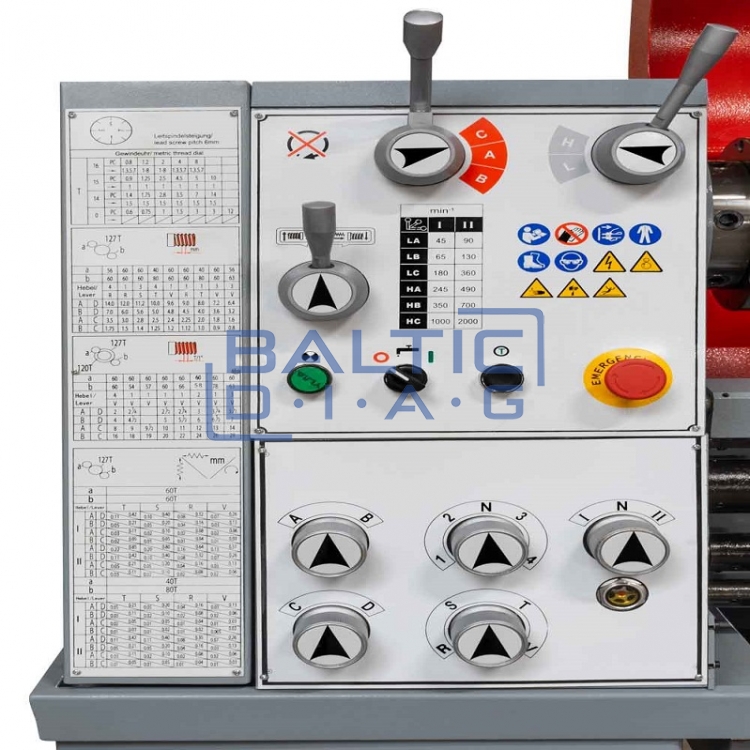

• Wide threading range with interchangeable gears.

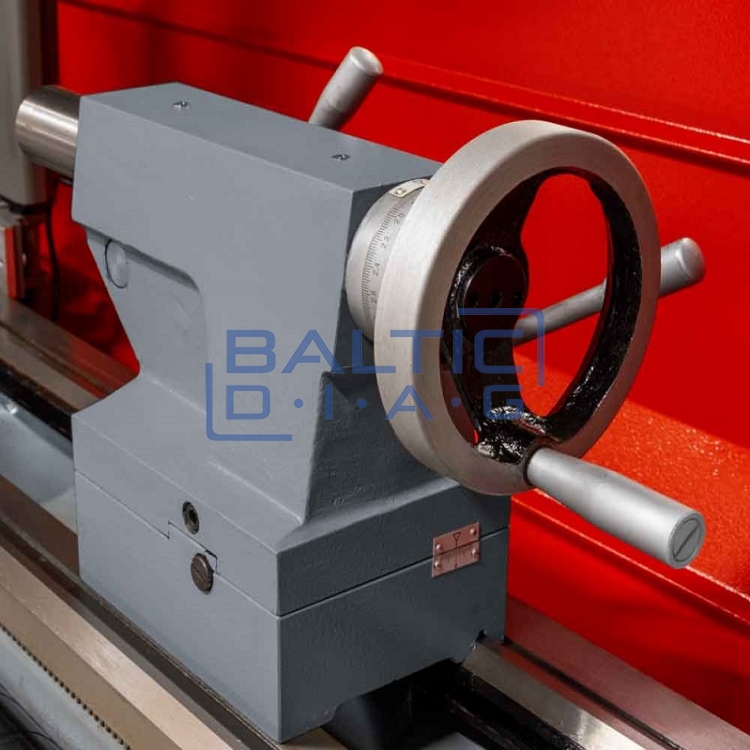

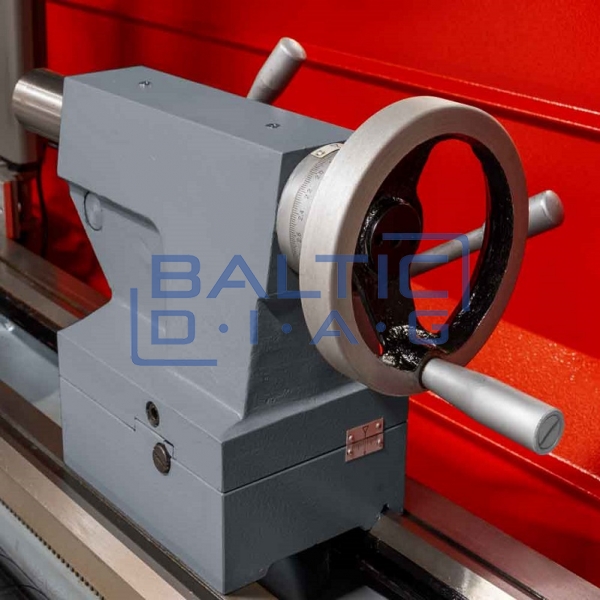

• Adjustable tailstock for taper turning.
• Sturdy cast iron construction for vibration damping and precision.
• Includes various accessories to ensure versatility in operations.

Technical Specifications:

• Motor Power S1: 2000 W.
• Voltage: 400 V / 50 Hz.

• Overall Dimensions (mm): 2570 x 780 x 1800.
• Bed Width (mm): 220.
• Bed Height (mm): 270.
• Machining Parameters:
• Distance Between Centers (mm): 1500.
• Center Height (mm): 200.
• Maximum Swing Over Bed (mm): 400.
• Maximum Swing Over Cross Slide (mm): 250.
• Spindle Speed (rpm): 45-2000 (12).
• Spindle Bore (mm): 56.
• Spindle Taper: MK6 / MT6.
• Tailstock Taper: MK4 / MT4.

• Carriage Travel (mm): 1175.
• Cross Slide Travel (mm): 180.
• Compound Slide Travel (mm): 110.
• Tailstock Sleeve Travel (mm): 110.

• Metric Threads (mm/rev): 0.8–14 (36).
• Inch Threads: 2–28 TPI (36).
• Maximum Tool Holder Cross-Section (mm): 30 x 20.

• Sound Pressure Level: 78 dB(A).

• Net Weight: 880 kg.
• Gross Weight: 980 kg.

• Packaging Width (mm): 760.
• Packaging Length (mm): 2470.
• Packaging Height (mm): 1600.
