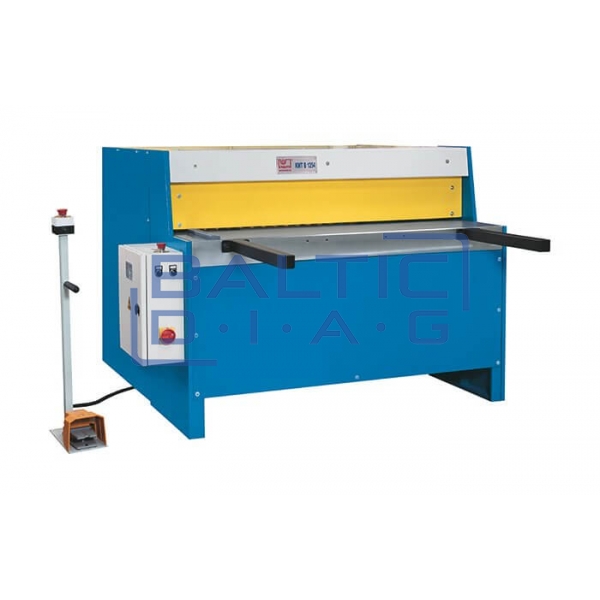

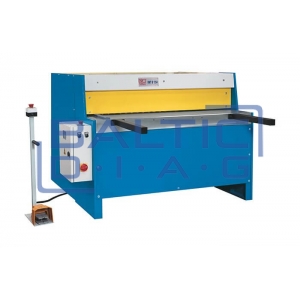

Metal cutting guillotine, Knuth KMT B 1254

Metal cutting guillotine, Knuth KMT B 1254

Manufacturer: Knuth, Germany

KMT B series guillotine is ideal for processing long and thick metal sheets in metal workshops, repair or manufacturing companies. The sheet metal cutting guillotine uses motorized shears, which are modern, high quality and very stable in design. Controlled cutting bars also allow you to make small turns in the workpiece. The cutting length can be precisely set manually on the back wall of the guillotine.

• Strong welding of steel structure
• Small blade angle
• Strong supports
• The mobile control unit has foot switch control
• Hand-held meter with counter on the back

More detailed description:

Device frame and drive system:

• The frame of the device is made of welded steel blanks, which provide strength and solidity.
• Rubber coated, locking mechanisms, automatically anchored panels.
• The small angle of the blades ensures cutting accuracy

Additional support:

• A sturdy side holder aligns the panels with the cutting line
• Strong holding arms ensure a firm fixation of large plates on the additional worktop.

Performance and ergonomics:

• Illuminates the cutting line for excellent marking visibility
• The mobile control unit enables the guillotine to be operated with a foot switch, so that both hands of the operator are free.

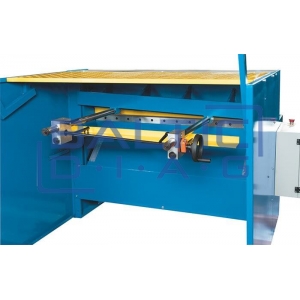

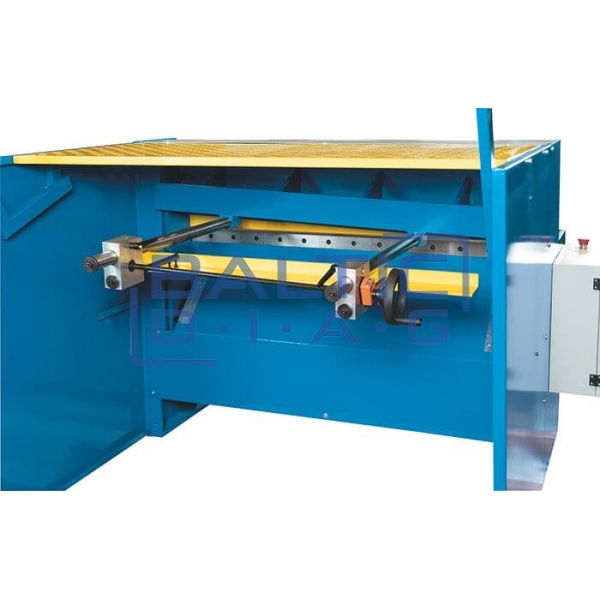

Rear Gauge:

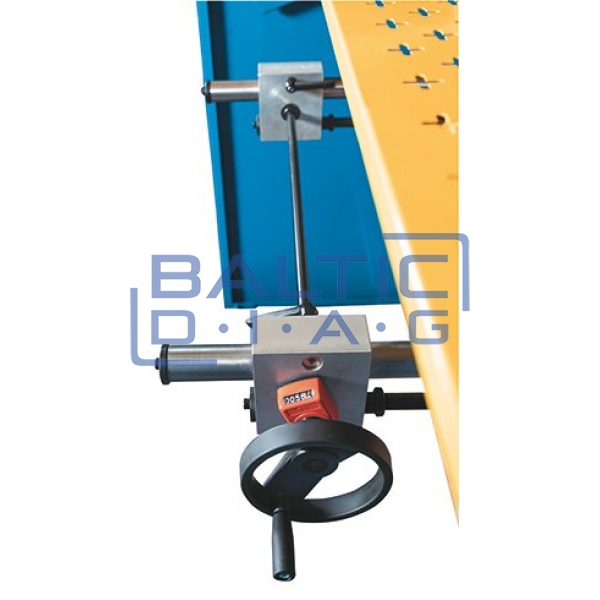

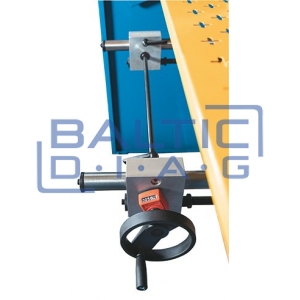

• Hand-held meter with counter on the back
• The rear gauge is strong and rigid, so it can handle any challenges of daily operation

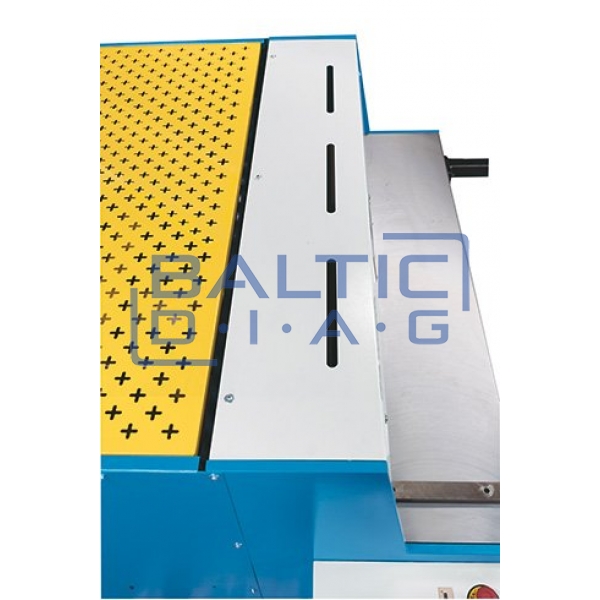

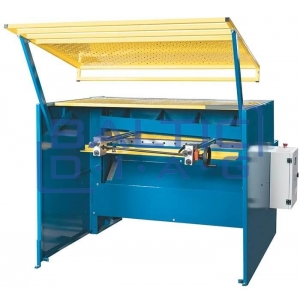

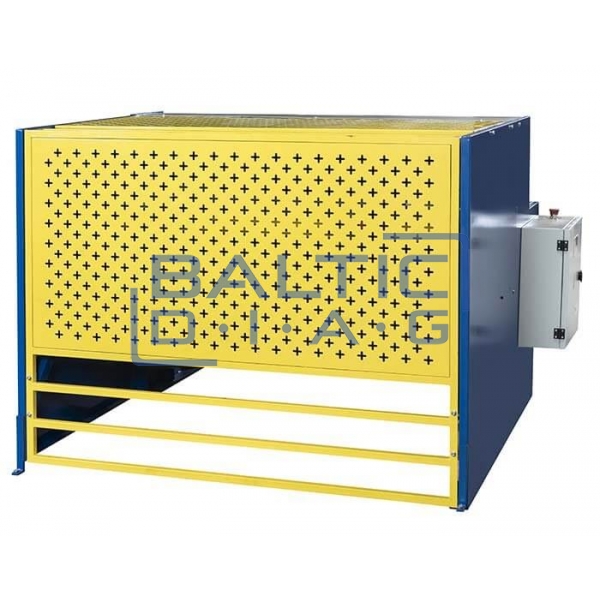

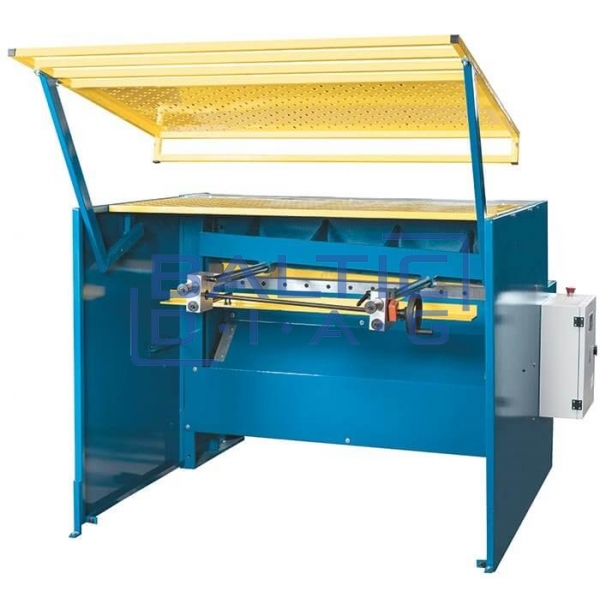

• The working surface on the back side of the guillotine is covered with protective panels

Technical parameters:

• Structural steel plates thickness: 0.8 mm - 4 mm
• Working length: 1250 mm
• Cutting angle: 2.4 degrees
• Strokes per minute (automatic mode): 30 h/min
• Knife length: 1350 mm
• Work table height: 830 mm
• Support arms: 600 mm
• Number of support arms: 2 positions
• Rear stop: 630 mm
• Motor rating main drive: 4 kW
• Overall dimensions: 1720 x 1600 x 1190 mm (L x W x H)
• Weight: 1185 kg

Standard equipment:

• Foot pedal with emergency stop switch
• Side angle stop
• Support arms
• Automatic hold-down mechanism
• Cutting line lighting
• Manual rear stop
• Operator's instructions
