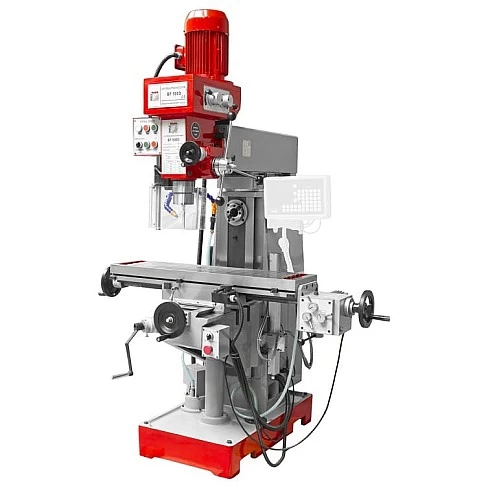

Metal milling machine Holzmann BF500D
Metal milling machine Holzmann BF500D

Metal milling machine Holzmann BF500D

  • SKU: BD96637
9,977.66 €

Prices shown include tax

Send Message

Description

Metal milling machine Holzmann BF500D

Manufacturer: Holzmann (Austria)

Features:

Attention: without digital display

Vibration-absorbing cast iron machines

Solid and rotatable (+90° / -90°) vertical gear driven milling head

Oil-lubricated gear with ground and hardened gears

CW-CCW

Feather down is adjusted via a three-spoke lever

Milling machine

Automatic X-Axis Drive (370W, 24-720mm/U (8))

Automatic and adjustable X-axis rear brakes

Table guides are adjustable with V-shaped edges

Max. thread size M16

Cooling system and halogen lamp included

Horizontal milling function

In the package: cooling system, X-axis feed, 1pc milling rod 22mm, 1pc milling rod 27mm, chuck set 8pcs (4,5,6,8,10,14,12,16mm), chuck 1-16mm (B18), adapter 1xMT3 1xMT2 1xB18, clamp, chuck (160 mm), halogen lamp, rod M16 (1x 340 and 1x 500 mm)

Technical data:

Motor power s1: 850 / 1500 W

Power supply: 400V / 50Hz

Table size: 1000 x 240 mm

Milling adapter: ISO 40

Milling speed vertical min-1: 115-1750 (8)

Rotatable head: 90°

Horizontal milling speed min-1: 60-1350 (9)

Z axis of movement: 400 (250) mm

Y axis of movement: 230 mm

X-axis of movement: 560 mm

Max. distance from shaft to table: 355 mm

Motor power for horizontal milling: 1.5 kW

Feather: 120

Max. milled steel: Ø 50 (M16) mm

Max. diameter of the end mill: Ø 25 mm

Max. front milling diameter: Ø 80 mm

Net weight: 800 kg

Gross weight: 880 kg
