  • SKU: BD22260
4,114.00 €

Prices shown include tax

Send Message

Description

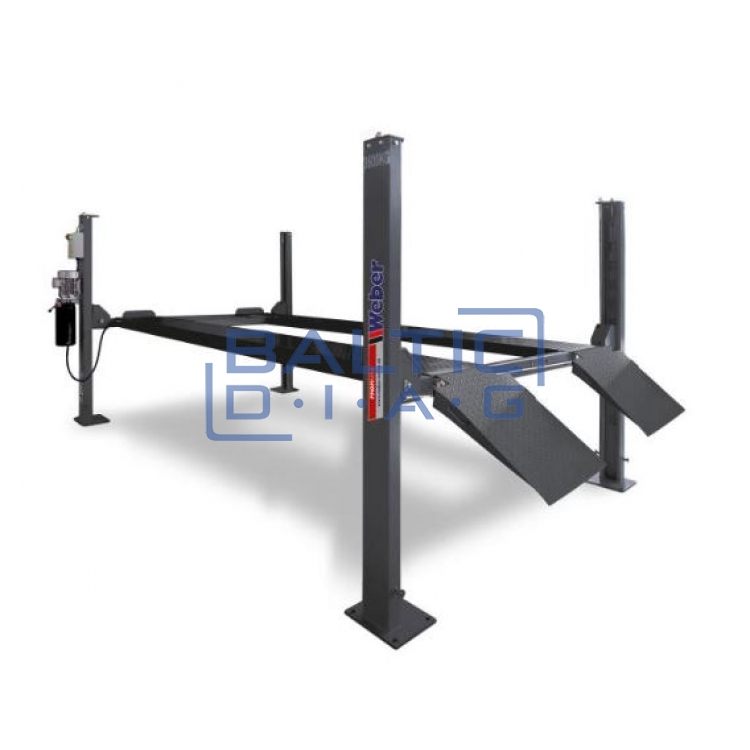

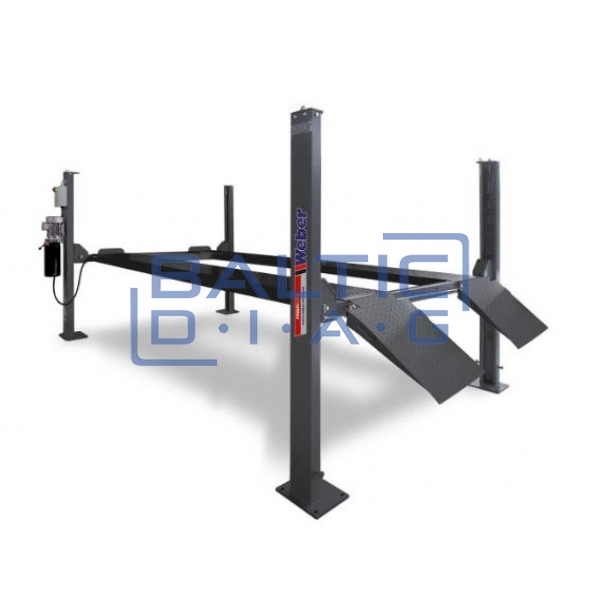

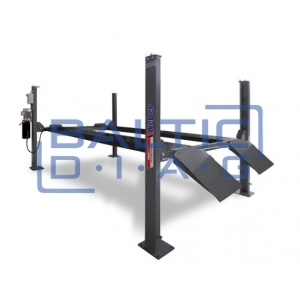

4-column mobile lift Weber Autolift 3.6

Manufacturer: Weber (Germany);

Description:
  • 4-column lift, suitable for use as a parking lift for cars and light commercial vehicles, due to its mobility.

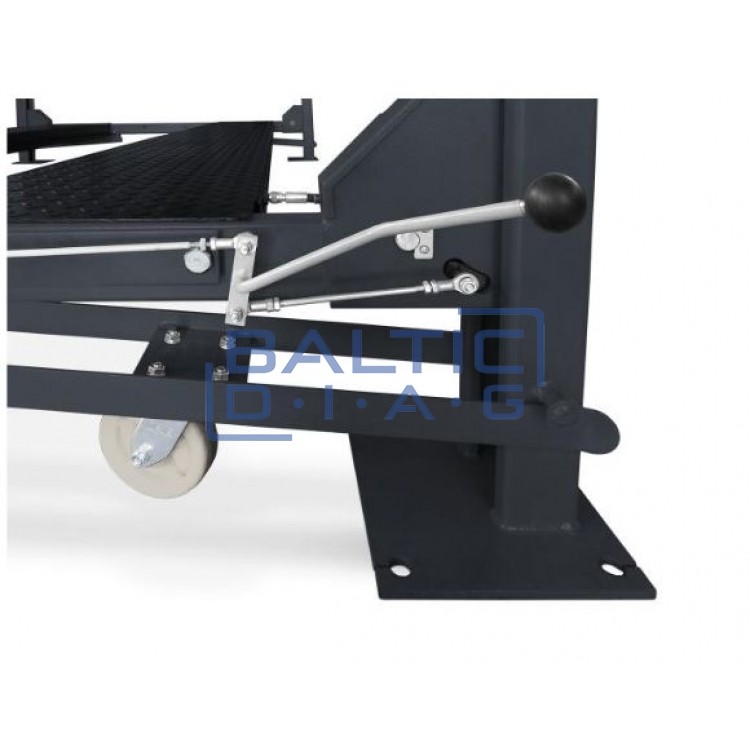

  • When lowered and without load, the lift can be adjusted with the mobility kit
  • Safety features: hydraulic pressure relief valve, hose break valves and mechanical locks and protection against loose cables
  • 3600 kg load capacity: the structure was tested with 115% dynamic load test and 150% static load test without any problems
  • Easy control (24V) control unit with safety switches and main switch
  • Electronic lift limit switch
  • Removable ramps
  • 4 removable tire locking blocks

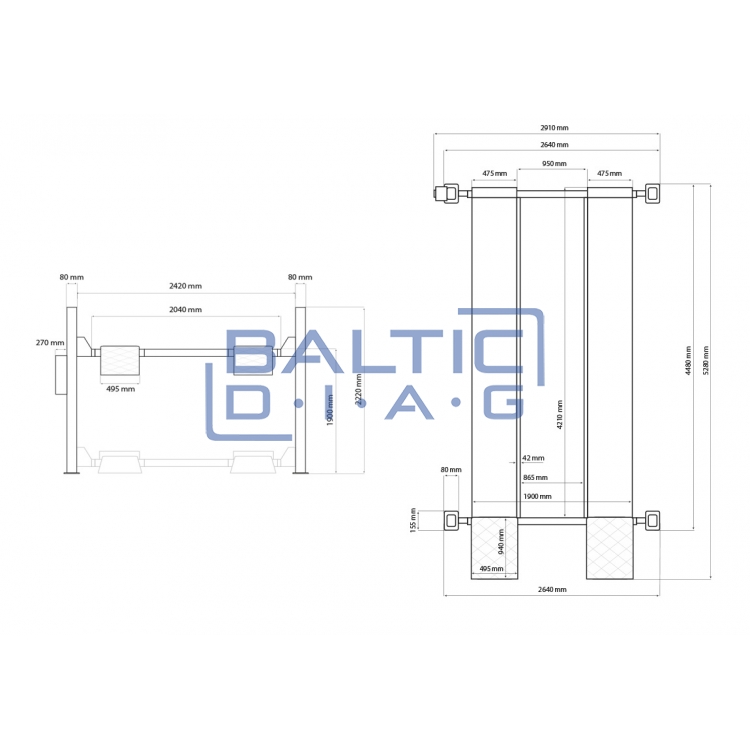

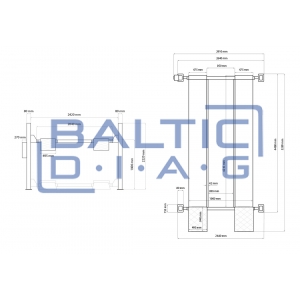

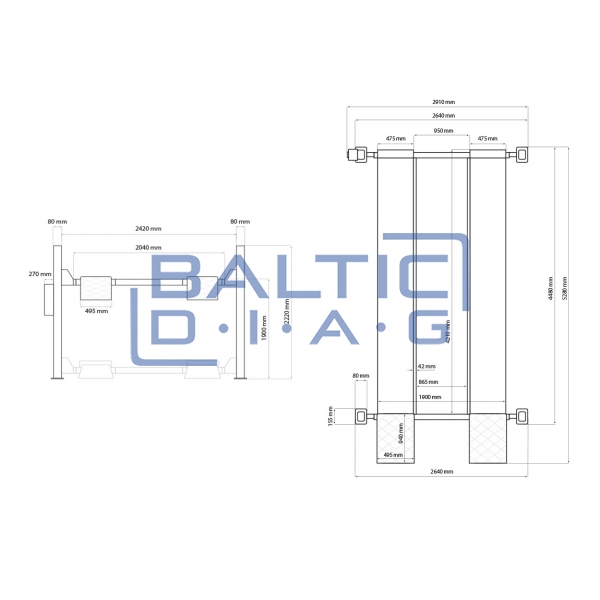

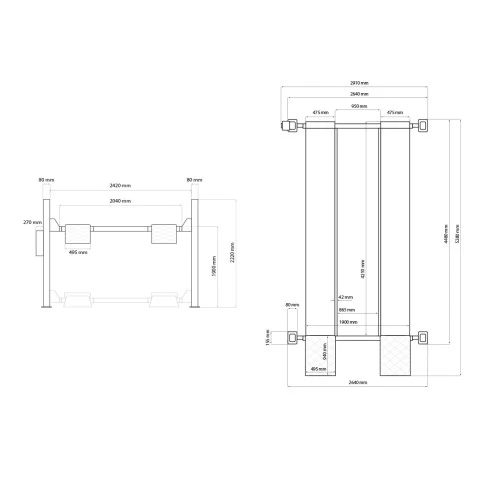

Technical parameters:
  • Lifting capacity: 3600 kg
  • Max. Lifting height: 1900 mm
  • Track length: 4200 mm
  • Track width: 474 mm
  • Track spacing: 952 mm
  • Overall length: 4460 mm
  • Overall height: 2237 mm
  • Overall width: 2630 mm
  • Power supply: 230V / 1Ph / 50 Hz
  • Engine: 2.2 kW
  • Lifting time: approx. 50 s
  • Max. Sound level: <70 dB
  • Weight: 720 kg
  • Colors: RAL7016 / RAL9017
