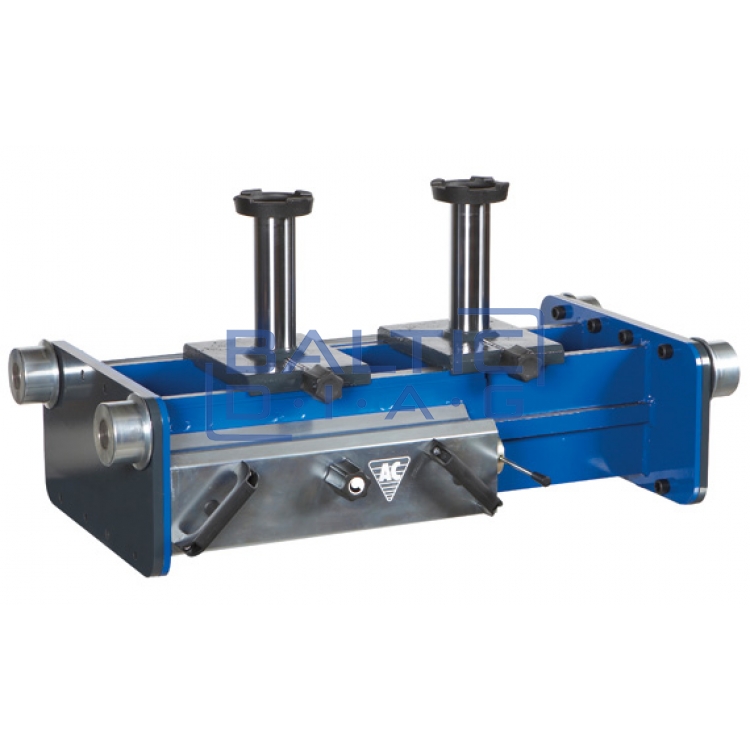

Pneumatic-hydraulic axle lift AC Hydraulic FL120-2

AC-Hydraulic, Denmark; warranty 3 years for hydraulics and 10 years for frame parts

Pneumatic-hydraulic twin-cylinder axle jack designed for trucks A reliable solution for safe and smooth lifting of heavy vehicles

Features

• Fast and precise lifting with a rapid movement cylinder
• Two individually controlled cylinders guarantee safe and even lifting
• Simple modern design with a control panel and ergonomic working height
• Adjustable frame suitable for use with various lifts
• Frame height adaptable to customer requirements
• Movable cylinders ensure versatile use
• Emergency release and overload valve for optimal safety
• Supplied with 2 x 100 mm extensions

Specifications

• Lifting capacity 20 tons
• Piston stroke 200 mm
• Minimum height 305 mm
• Maximum height 505 mm
• Jack width 590 - 1410 mm
• Jack depth 665 mm
• Required compressed air pressure 8 - 12 bar
• Required compressed air flow 350 L/min
• Weight 202 kg
