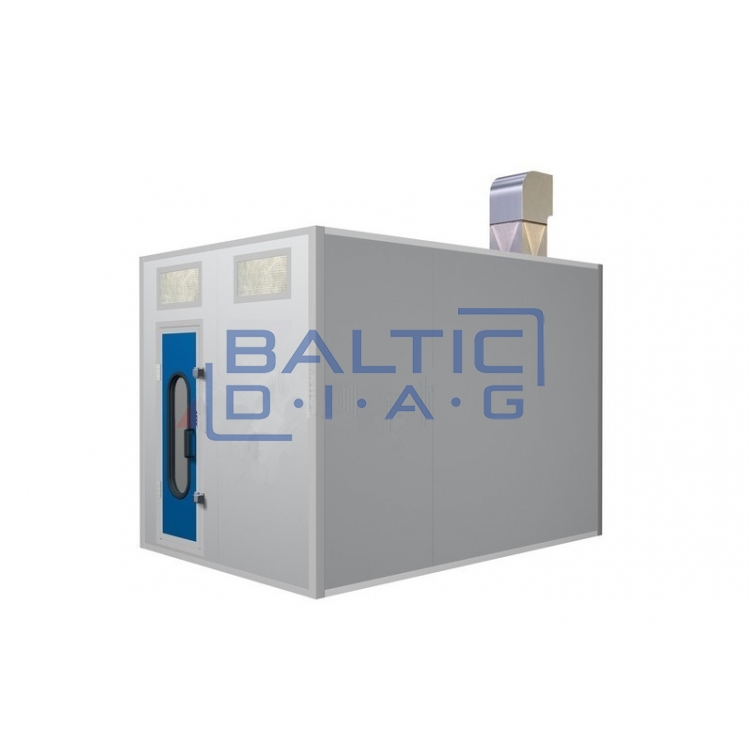

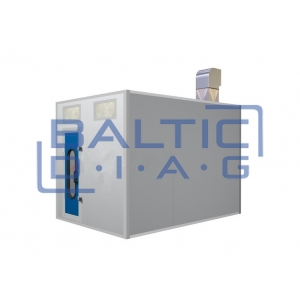

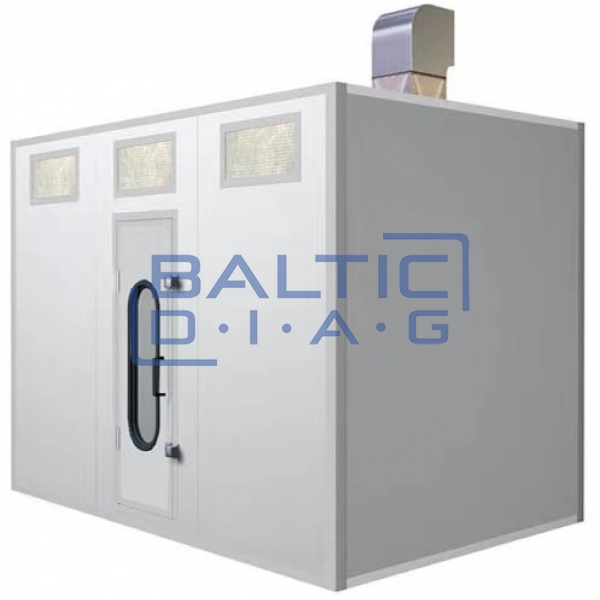

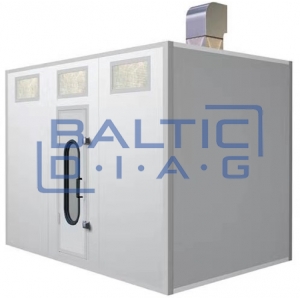

Paint mixing room

Paint mixing room

A paint mixing room is a safe solution for mixing work to prevent the risk of explosion. This paint room can be used to mix paints and other vapor-releasing materials. The room and doors are with EPS. The inner and outer color are white. Intake filters are equipped in the same room with the engines, so all emitted gases and vapors are removed to ensure the concentration of volatile gases in accordance with safety standards. The electric control unit is on the outside. Glass observation is assembled on the side wall.

Technical data:

Internal dimensions: 1500 × 3900 × 2500mm

External dimensions: 1600 × 4000 × 2550mm

Working gate dimensions: 650 × 1800mm

Ceilings and walls: ESS, 50 mm thick, color - white

Suction system: filters on the walls - suction field from the outside

Exhaust system: rear wall with fan, capacity - 2200 m3 / h

Filter system: fiberglass filters

Luminaires: ceiling: 2 groups x 2 pcs. and each lamp 16W LED (electronic brightness control)

The control unit controls: power supply, lighting, fan

Total power: 0.5 kW
