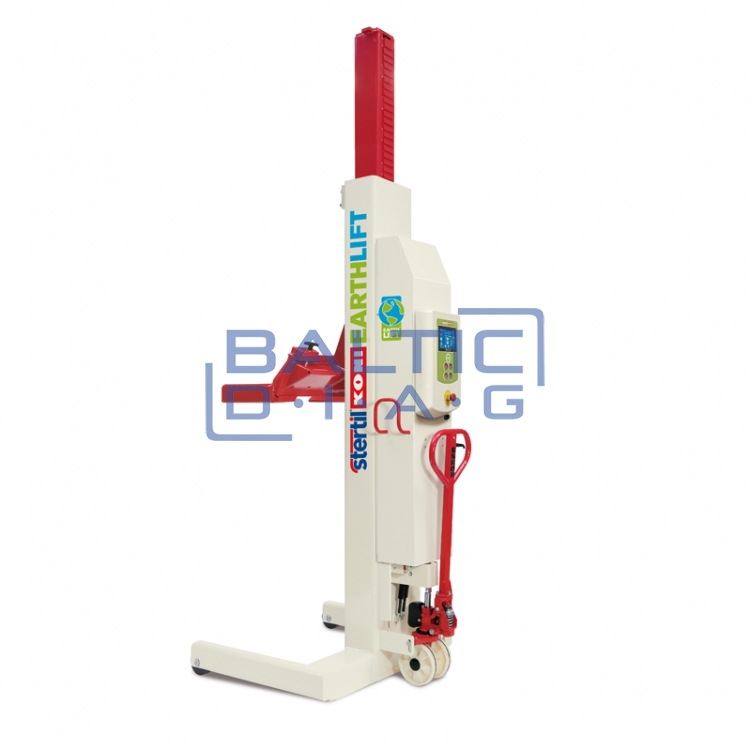

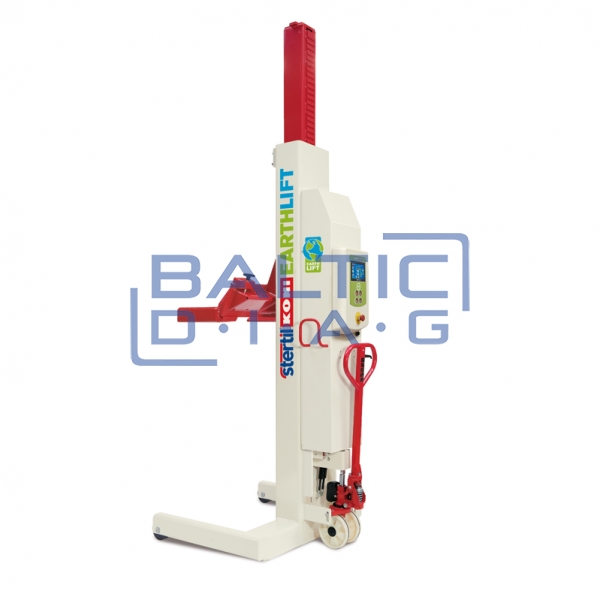

Mobile 4-column wireless lift for heavy-duty vehicles EARTHLIFT 8.5t Stertil-Koni

Mobile 4-Column Wireless Lift for Heavy-Duty Vehicles EARTHLIFT 8.5t Stertil-Koni

Country of origin: Netherlands, warranty period – 24 months

6-column version, wireless option price: 64999.00 EUR including VAT

Version 10 TON 4-column, wireless version price: 46999.00 EUR including VAT.

Version 10 TON 6-column, wireless version price: 67999.00 EUR including VAT.

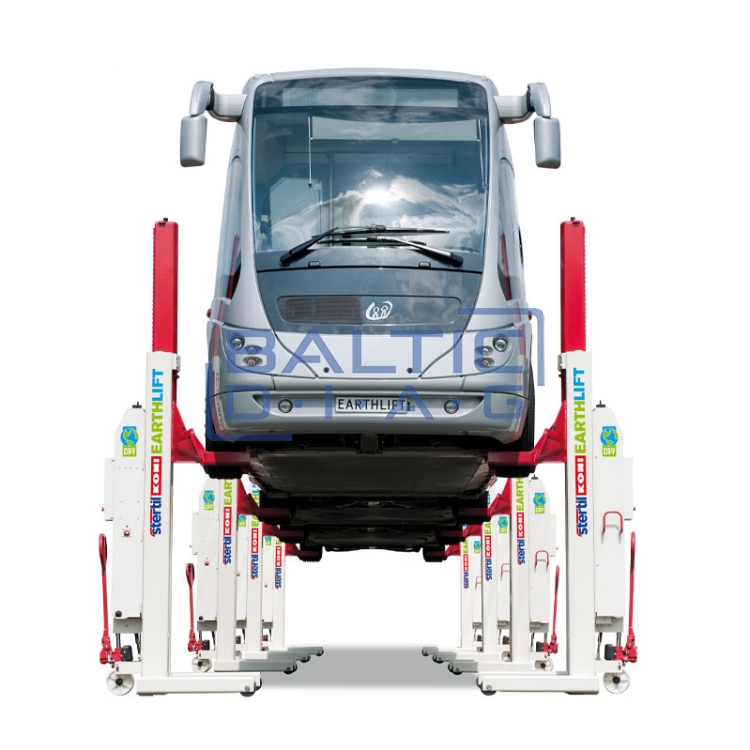

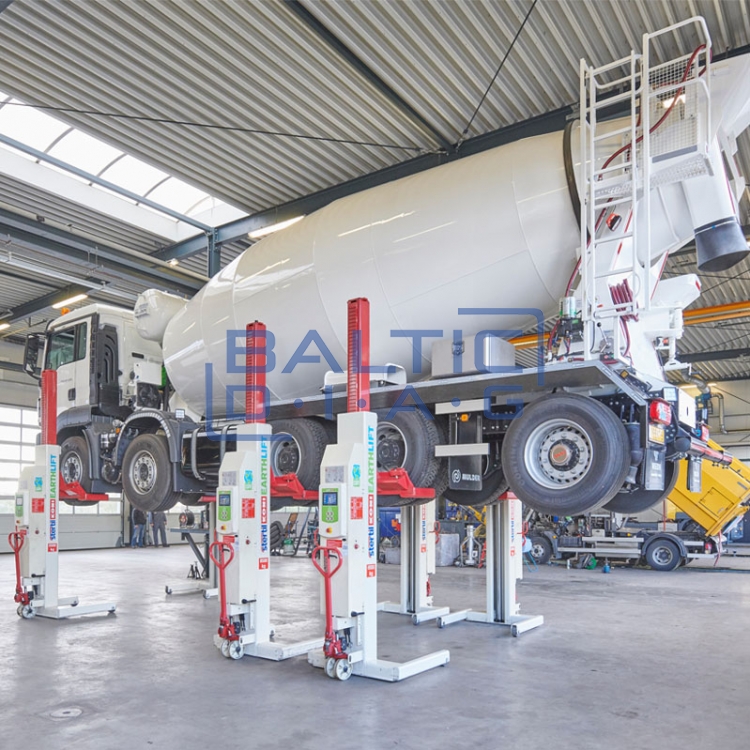

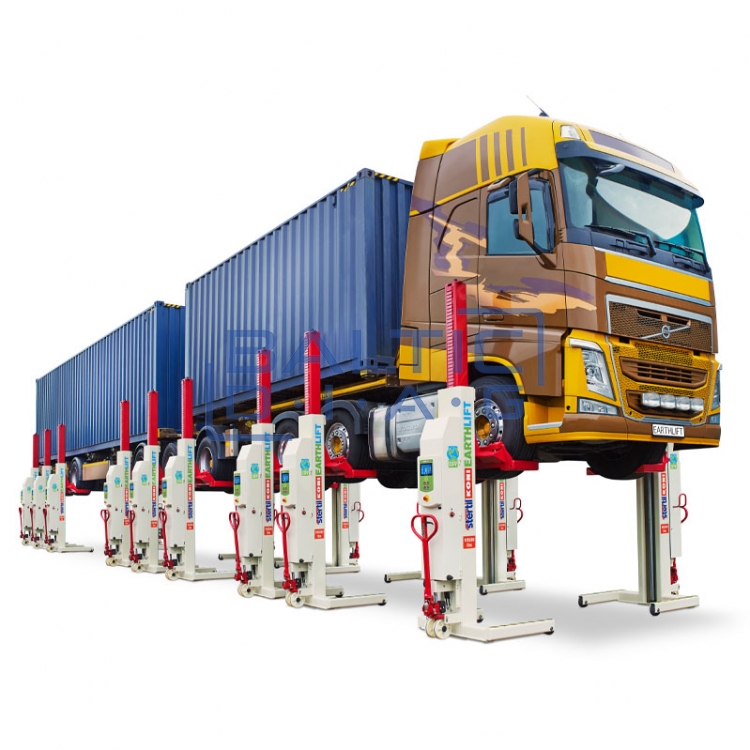

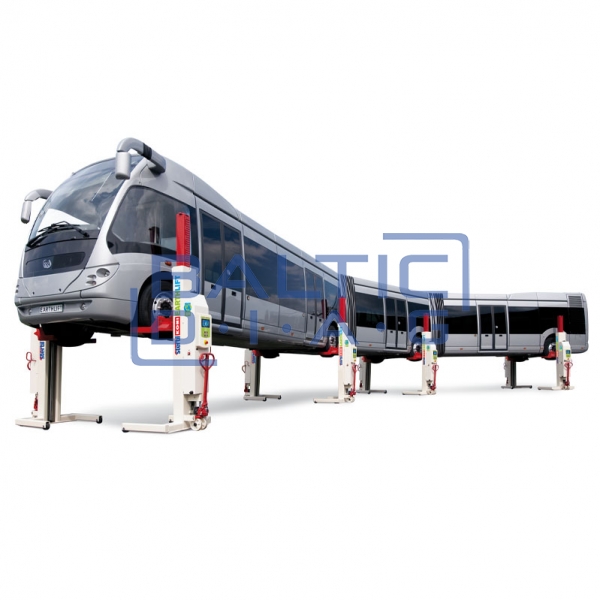

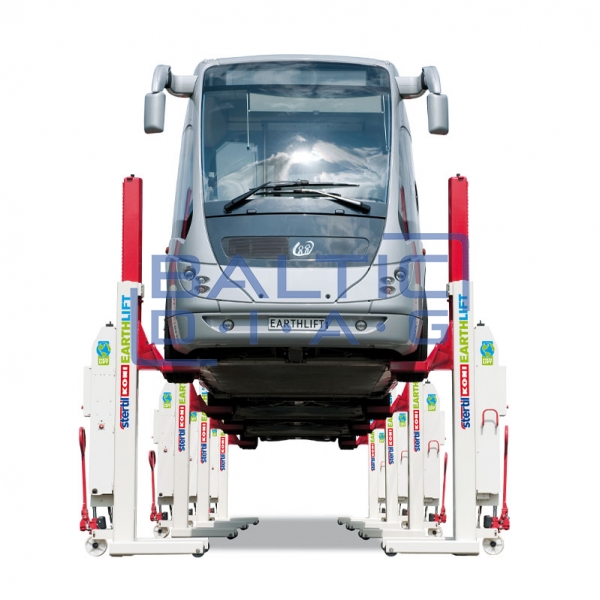

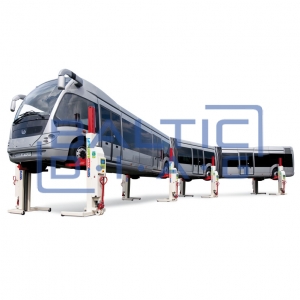

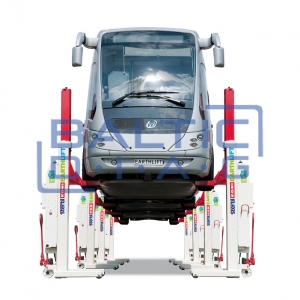

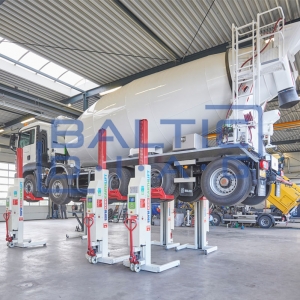

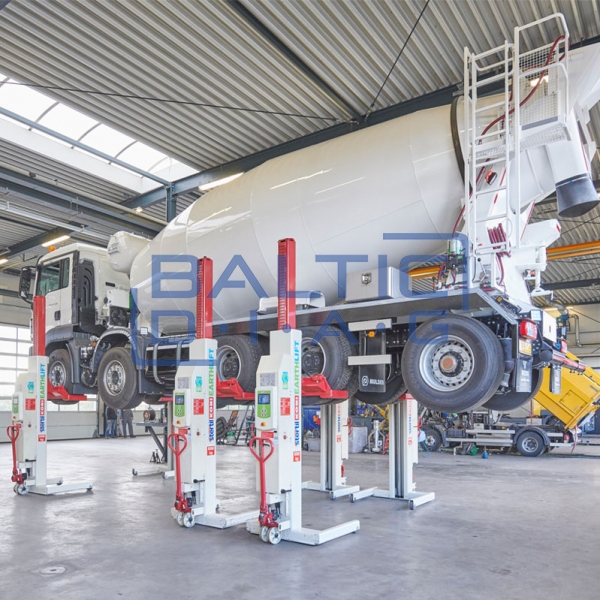

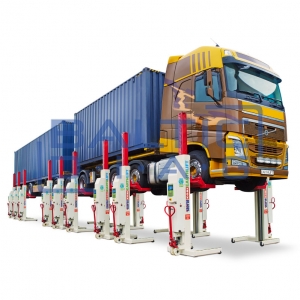

The Stertil-Koni EARTHLIFT is the first “green” mobile hydraulic column lift in the industry, developed using the patented Active Energy Retrieval System (AERS). This fully wireless device offers outstanding environmental efficiency, minimal battery charging requirements, and maximum safety in the workshop. EARTHLIFT is ideal for lifting heavy-duty vehicles such as buses, trucks, agricultural machinery, and even special-purpose vehicles. Each column has a lifting capacity of 8,500 kg, and up to 32 columns can be connected in one configuration.

The Stertil-Koni EARTHLIFT column lift utilizes the patented Active Energy Retrieval System (AERS), which provides an ecological and fully wireless lifting system for all heavy-duty lifting needs. Thanks to this technology, the lift can perform up to 50 lifting cycles without additional battery charging, maximizing uptime and reducing workshop downtime.

The AERS principle is both simple and ingenious: the system recovers the energy generated when lowering a raised vehicle—in other words, it reuses gravitational energy.

Features:

• Active Energy Retrieval System (AERS) – recovers energy during vehicle lowering
• Up to 50 lifting cycles without additional battery charging
• eBright touch-sensitive control system with a 7” full-color screen, operable even with gloves
• Personalized user settings and protection against unauthorized use with an ID key
• Wireless operation – no cables on the workshop floor that could cause tripping hazards
• Minimal mechanical wear – lower repair and maintenance costs
• Biodegradable hydraulic oil and many recyclable components
• Smallest locking increment in the industry – only 35 mm
• Mechanical gravity safety locking system starting from 125 mm lifting height
• Precision synchronization, even with uneven weight distribution
• 270 mm clearance between the lift and the vehicle – reduces risk of vehicle damage
• Lifting of various wheel sizes without the need for adapters – thanks to adjustable forks

Technical Specifications:

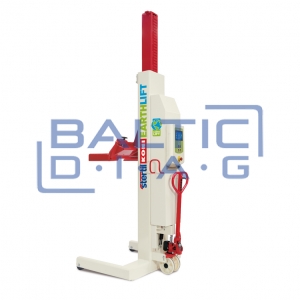

• Model: EARTHLIFT 8.5t
• Lifting capacity: 8,500 kg (per column)
• Lifting height: up to 1,850 mm
• Lifting time: 94 seconds
• Fork type: Adjustable
• Fork length: 350 mm
• Fork width: 240–560 mm

Adjustable Forks

• Allow for the adaptation of lifting points to different vehicle wheel diameters. Ensures versatility and safe lifting without additional adapters.

eBright Smart Control System

• Touch-sensitive color screen allows intuitive and easy operation of the lift, real-time system status monitoring, and personal configuration using a user ID key.

Retractable Wheels

• Make repositioning the lift within the workshop easier and significantly reduce the risk of floor damage by minimizing surface pressure.

Active Energy Retrieval System

• An innovative system that regenerates energy produced when the vehicle is being lowered. Increases energy efficiency by up to 35% and reduces the need for battery charging.
