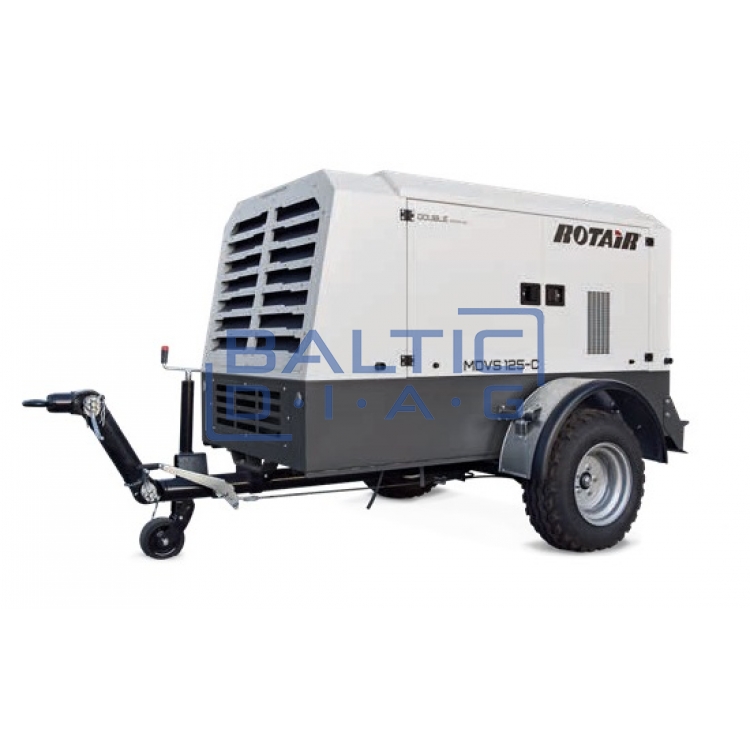

Mobile diesel air compressor Rotair MDVS 125C

Mobile diesel air compressor Rotair MDVS 125C

Manufacturer Rotair (Italy)

An advanced mobile compressor with the highest standards of air emissions and noise for larger workplaces. Performance and reliability, low running costs. Each compressor type also has a specific model with integrated chiller and condensate filtration for sandblasting, fiber optic cable laying, and all when cool, dry air is required.

Wide pressure range with double pressure option

Ergonomic, durable machines

Low noise level as specified in the current legislation

Emissions according to the latest parameters

Liquid engine cooling system, quieter and less polluting

Progressive engine acceleration in response to required air to reduce fuel consumption

Easy access for maintenance

The advanced system allows the engine to be preheated without overloading

Control panel "No Key", one button to start the device

Centralized control panel for easy operation

Low maintenance costs

Manufactured in accordance with current international standards (CE, ASME, DOSH)

Compressor specifications:

Operating pressure: 7 bar-102 psi / 10 bar-145psi / 12 bar-174psi

Operating capacity: 12000 l / min 424 cfm / 11000 l / min 388 cfm / 10000 l / min 353 cfm

Min. operating pressure: 5.5 bar 80 psi

Drive system air-cushion: Direct Drive

Compressor cooling: oil / air

Oil cooling capacity: 29 l

Emission temperature: 40 ° C - 105 ° F

Drain valves: 3 x 3/4 "+ 1 x 2"

Noise level EEC no. 2000/14: <99 LWA

Battery power: 12V cc - 950A-132Ah

Fuel tank capacity: 150 l

Consumption: 4.9 lt / h

Engine specifications:

Engine manufacturer: JSB

Engine model: 444-TCA

Cylinders: 4

Issue: Stage II / Tier 2

Volume: 4400 cc

Aspiration: Turbo intercooler

Max. engine power @ 2200 RPM: 16.5 kW-22.5 HP

Max. engine speed: 2200 RPM

Min. engine speed: 1600 RPM

Cooling: Water

Cooling system capacity: 22 l

Lubrication: Oil

Oil capacity: 14 l

Max. operating temperature: -50 ° C-122 ° C

Oil yield for performance: <1 PPM

Compressed air temperature: + 10 ° C 14 ° F

Max. altitude: 1800 m a.s.l.

Dimensions: 4524 x 1975 x 2191 mm

Weight: 1920 kg (without brakes) / 2020 kg (with brakes)
