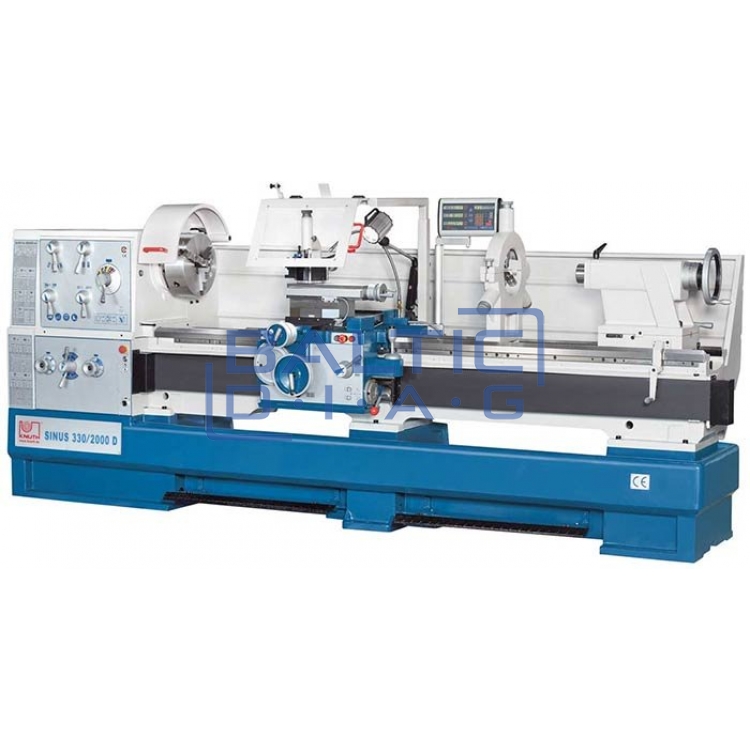

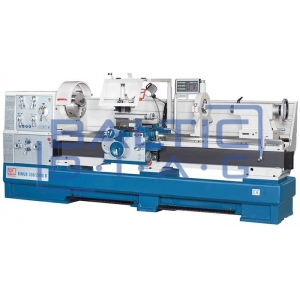

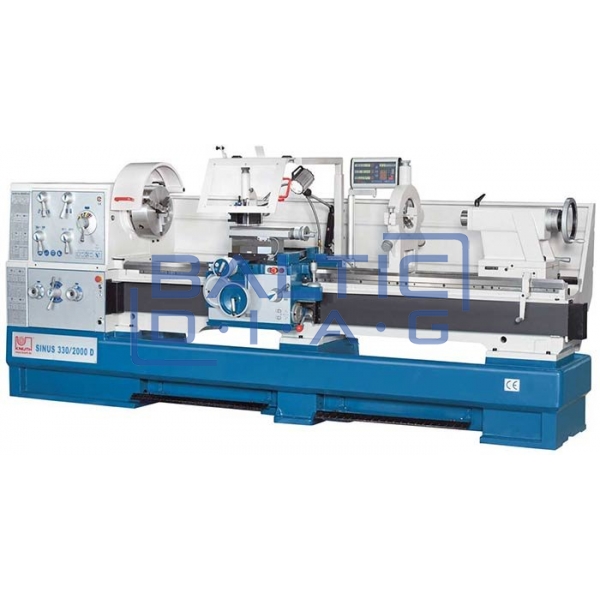

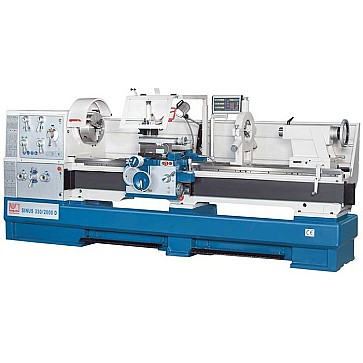

Metal lathe, Knuth Sinus 330/2000 D

Metal lathe, Knuth Sinus 330/2000 D

Manufacturer: Knuth, Germany

Sinus D is the largest series of machines in the segment of universal machines. The construction of the machine is based on the classic design, but built on a heavy, cast base. As a high-power metal lathe, it uses a manual multi-disc clutch that connects the motor and the drive shaft. Incorporating features such as removable bridge, quick transitions and taper lathes, this series offers additional solutions for machining long products or large flanges.

• One - piece heavy casted bed for increased rigidity.
• Sturdy headstock design with minimum vibrations.
• Rapid feed on 2 axes ensure fast positioning.
• Taper turning attachment for additional applications.
• Well thought out safety protection.

More detailed description:

• Removable bridge (250 mm) to allow machining of large parts up to 1035 mm in diameter.
• High precision and silent operations, even with high cutting power.
• Heavy and large bed.
• Hardened guideways (>HB 400)
• 105 mm spindle capacity for machining large parts.
• Manual central lubrication.
• Clutch for soft startup with heavy parts.
• Automatic lubrication of headstock and main drive.
• Protected, leadscrew.
• Overload protection of feed shaft and leadscrew.

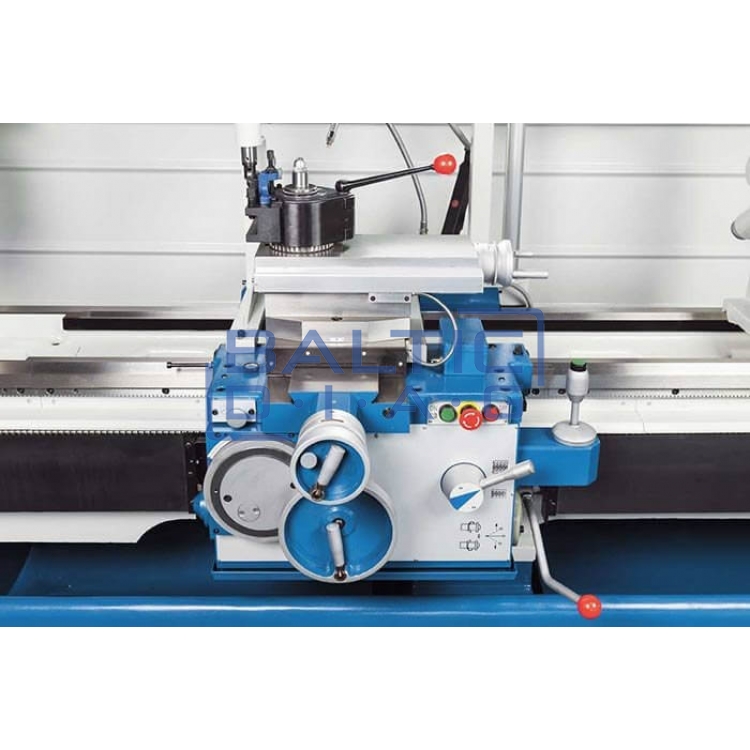

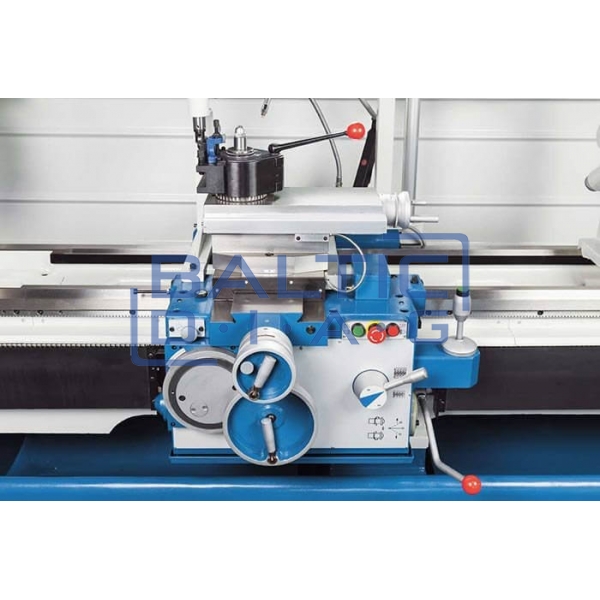

• Support moves in linear and cross directions via rapid feed.

Technical data:

• Workpiece length (max.): 2000 mm.
• Turning diameter over bed: 660 mm
• Turning-Ǿ over support: 440 mm
• Turning diameter without gap bridge: 900 mm
• Bridge gap length: 320 mm
• Bed width: 400 mm

• Travel, X-axis: 368 mm
• Travel, Z1 axis: 230 mm
• Swing range from top slide: 45°

• Spindle speed: 25 1/min - 1600 1/min
• Spindle bore: 105 mm
• Spindle mount: D1-8
• Spindle taper: 5 MT

• Rapid feed in x-axis: 2000 mm/min
• Rapid feed in z-axis: 4000 mm/min

• Feed x-axis: 0.022 mm/R - 0.74 mm/R
• Z-axis feed: 0.044 mm/R - 1.48 mm/R

• Threading, metric: 0.45 mm - 120 mm.
• Threading, diametric: 0.88 DP - 160 DP
• Threading, module: 0.25 mm - 60 mm
• Threading, whitworth: (54) 7/16 - 80 TPI

• Tailstock quill diameter: 90 mm
• Tailstock taper: 5 MT
• Tailstock quill stroke: 235 mm
• Tailstock traverse adjustment: +-12.5 mm

• Power of the main electric motor: 7.5 kW

• Overall dimensions: 3710 x 1230 x 1600 mm
• Weight: 2900 kg

Three axis position indicator:

• Integrated multi-function systems, this next-generation, 3-axis digital output provides more precise and convenient control. Reduces the chance of errors and inaccuracies.
• The control panel is made of fully sealed, high-quality polyester film that is resistant to aggressive workshop environments. Such as dust, fumes or other chemicals that often occur in the workshop.
• The optical scale provides a 5 micron resolution of 0.005 mm with outer covers made of aluminum, against oil, coolants, chips.

Basic functions:

• Resolution: 0.005 mm
• Spindle control, on/off
• Systems of measured dimensions: Inch / meters
• Setting/restoring the current position
• The coordinates on the screen are changed to ABS / INC
• Radius / diameter display
• Z1 / Z2 axes summing
• Pocket calculator functions.

Extended functions:

• Axis position is maintained when display is turned off
• Hole circle pattern calculation
• Radius / diameter toggle
• Reference function for tool gauging
• Taper turning function

Standard equipment:

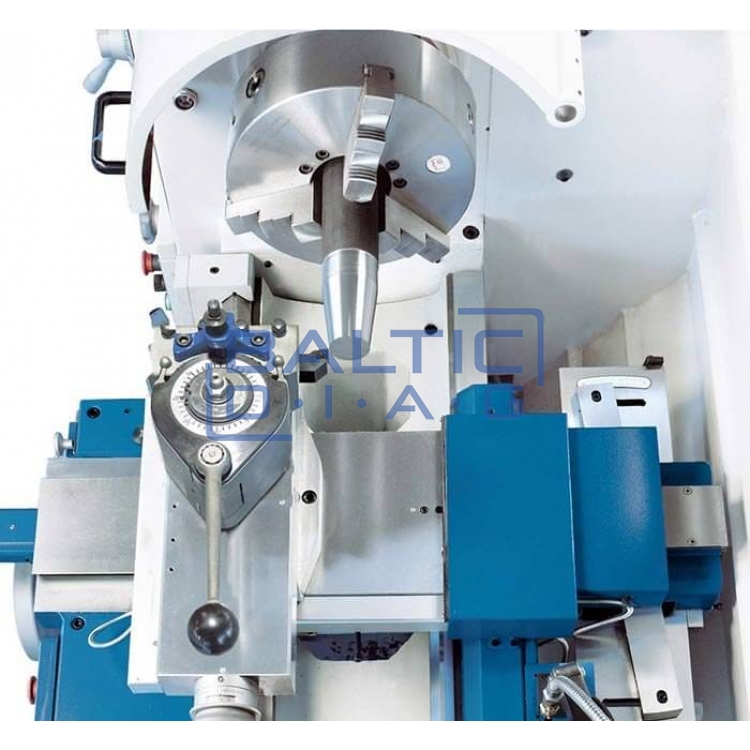

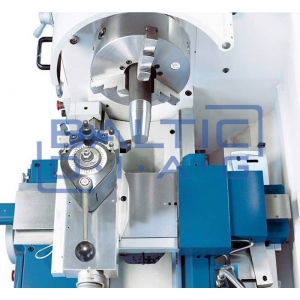

• 3-jaw chuck, Ǿ = 315 mm
• 4-jaw chuck, Ǿ = 450 mm
• Dog plate
• Face plate diameter: Ǿ = 450 mm
• Operator's manual
• Centering cone
• Chuck guard

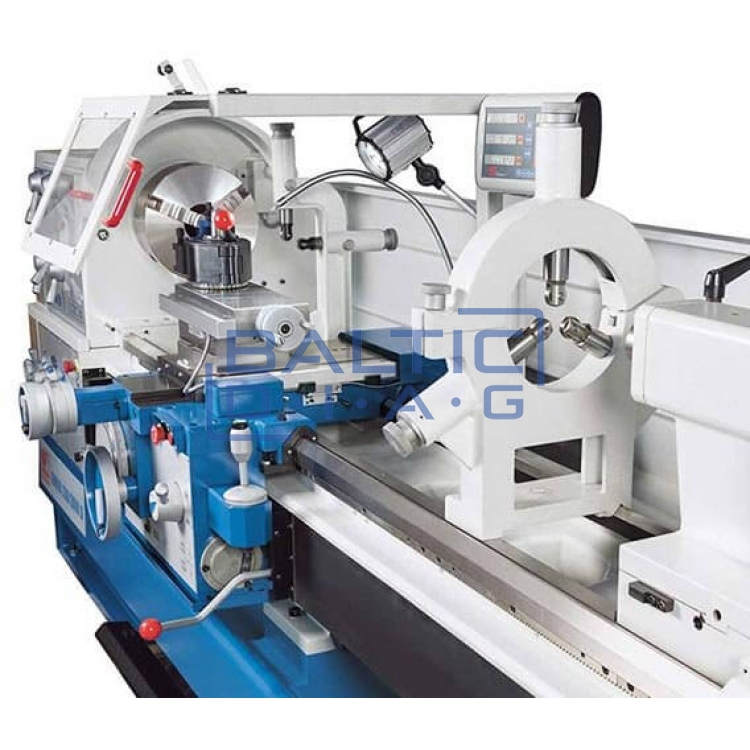

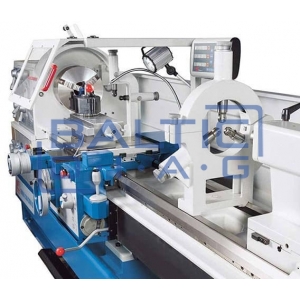

• Steady and follow rests
• Reducing sleeve
• Quick change tool holder head WC
• Protective shield, in place of tools
• Fixed splash guard (wall)
• Quick change tool holder WCD 32150
• Taper turning unit
• 3-axis position indicator X. Pos 3.2
• Toolbox with operating tools
• Cooling System
• Rapid feed in x and z axes
• Work light
