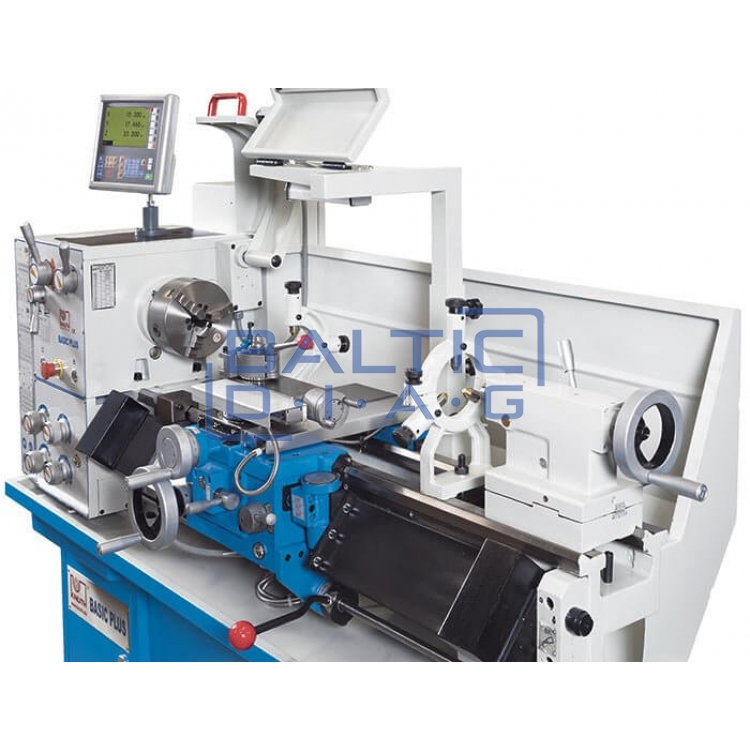

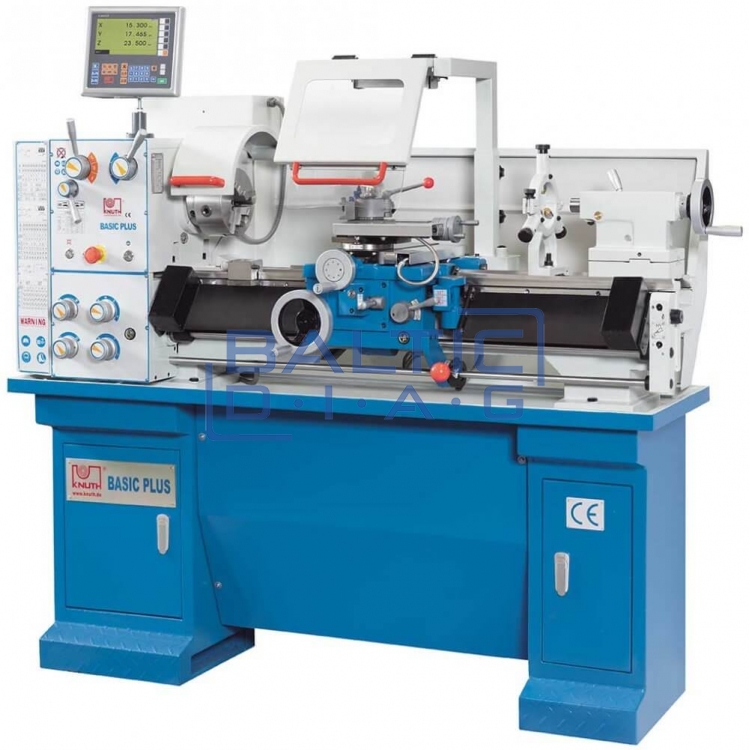

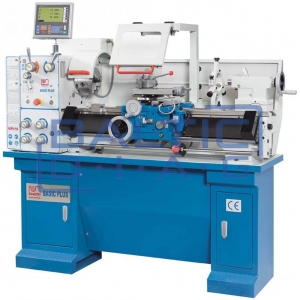

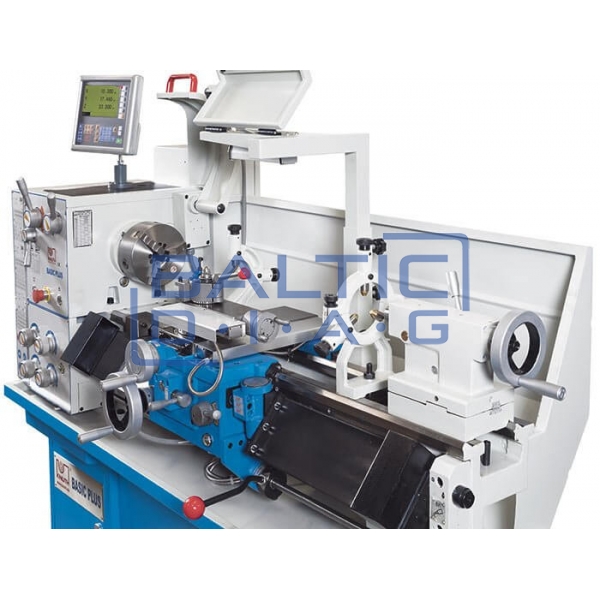

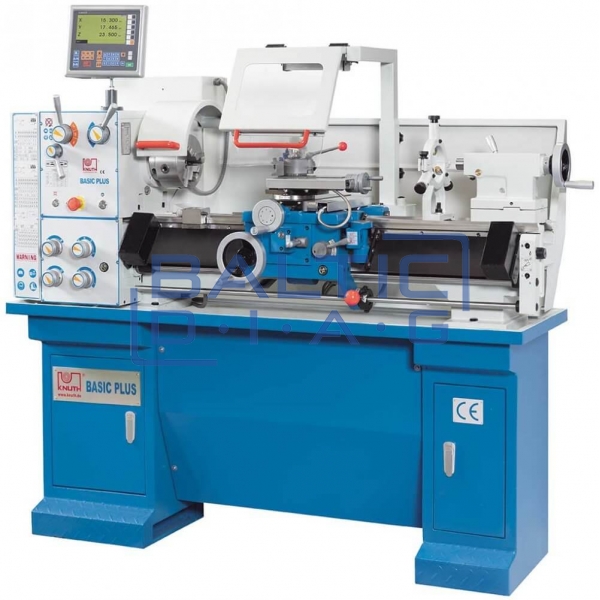

Basic Plus – universal lathe. Due to the wide selection of additional accessories, this machine is the best choice for repairs, training and various workshops.
Robustness and precision
Compact design with small footprint
Extensive standard equipment

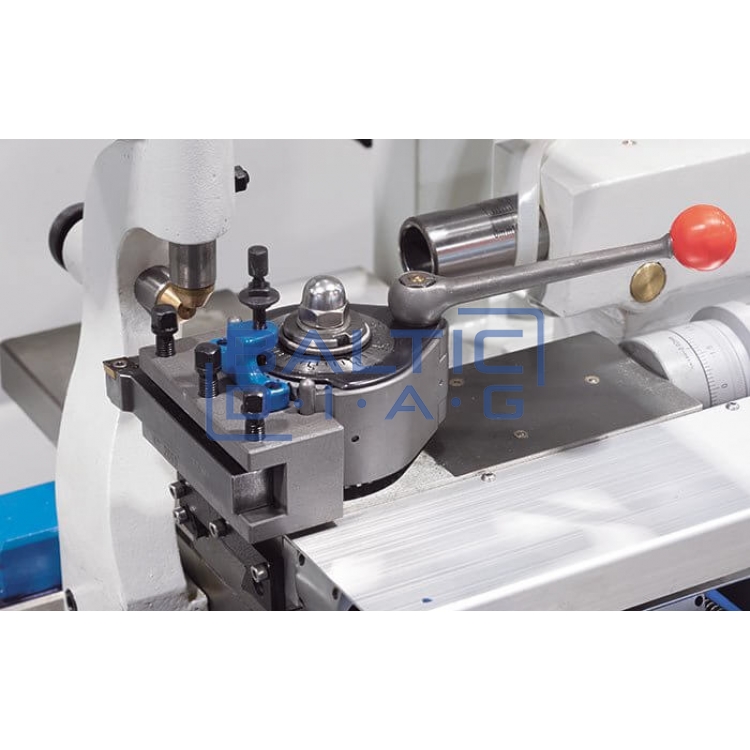

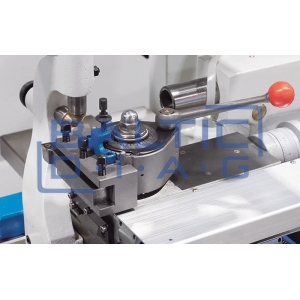

Quick change tool holder
Assembled 3-axis position indicator
More detailed description:
Hardened and hardened chuck gears
Headstock with Camlock D1-4” mount, bore diameter: 38mm, run in 2 adjustable tapered roller bearings
Tailstock, can be moved about +- 10 mm for taper
Reversing gears reversing gearbox for changing the feed direction
Guides are adjustable thanks to the tapered gibs
The bed is made of cast iron, double V-shaped guide, hardened and ground.
Technical data:
Center width: 810 mm
Turning diameter above the bed: 300 mm
Turning-Ø over support: 178 mm
Bed width: 180 mm
Travel, x-axis: 155 mm
Travel, Z1 axis: 95 mm
Swing range of top slide: +- 60°
Spindle speed: 60 1/min - 1550 1/min
Spindle bore: 38 mm
Spindle mount: Camlock D1-4
Spindle taper: 5 MT
X-axis feed: 0.014 mm/R - 0.38 mm/R
Z-axis feed: 0.052 mm/R - 1.392 mm/R
Threading, metric: (26) 0.4 - 7 mm
Threading, whitworth: (34) 4 - 56 TPI
Tailstock quill diameter: 32 mm
Tailstock taper: 3MT
Tailstock quill stroke: 100 mm
Tailstock traverse adjustment: +- 10 mm
Power of the main electric motor: 1.1 kW
Overall dimensions: 1600 x 750 x 1270 mm (L x W x H)
Weight: 520 kg

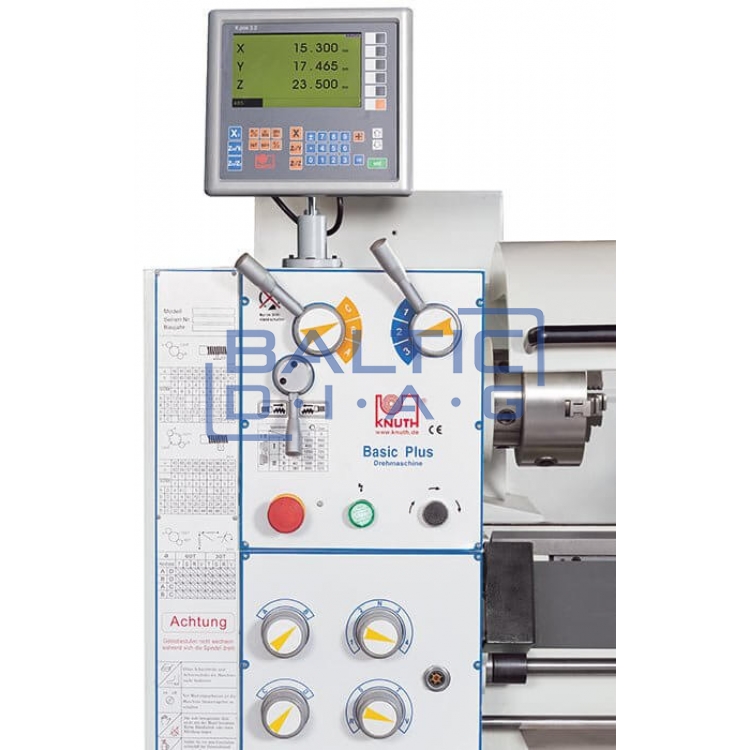

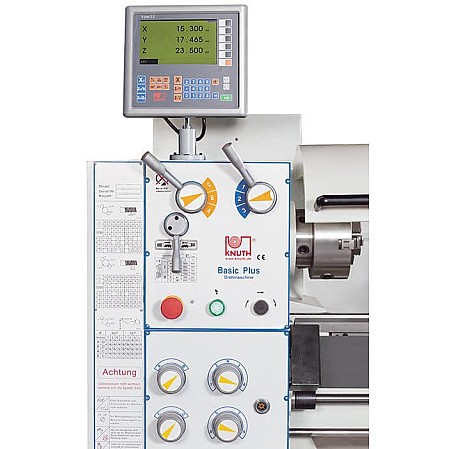

Three axis position indicator:
Integrated multi-function systems, this next-generation, 3-axis digital output provides more precise and convenient control. Reduces the chance of errors and inaccuracies.
The control panel is made of fully sealed, high-quality polyester film that is resistant to aggressive workshop environments. Such as dust, fumes or other chemicals that often occur in the workshop.
The optical scale provides a 5 micron resolution of 0.005 mm with outer covers made of aluminum, against oil, coolants, chips.
Basic functions:
Resolution: 0.005 mm
Spindle control: ON / OFF
Unit measurement conversion: Inch / meters
Setting / restoring the current position
The coordinates on the screen are changed to ABS / INC
Radius / diameter display
Z1 / Z2 axes summing
Pocket calculator functions.
Advanced features:
Axis position is maintained when display is turned off
