Programming tool for motorcycle immobilizer systems MK70 OBDSTAR

MK70 Programming Tool for Motorcycle Immobilizer Systems OBDSTAR

Country of origin: China, warranty period – 24 months

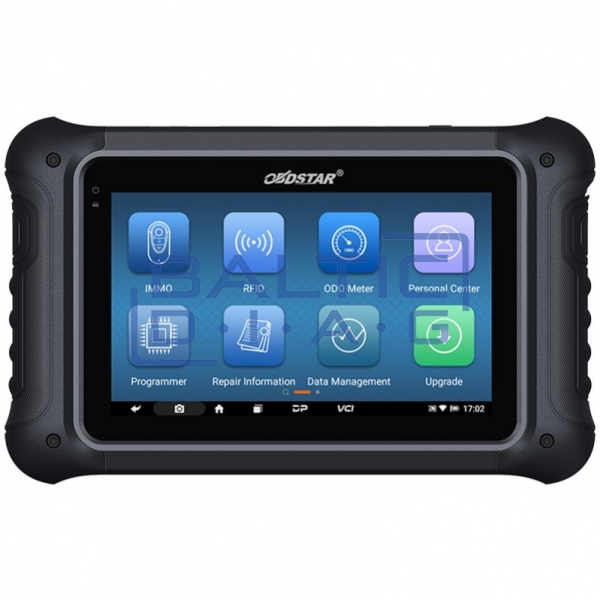

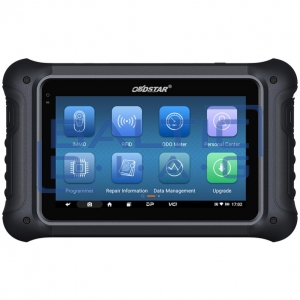

MK70 is a new-generation motorcycle immobilizer programming device developed by OBDSTAR specifically for locksmiths. This portable device with a 7-inch screen operates on the Android 5.1.1 operating system and is powered by a quad-core RK3128 processor. It features extensive data support, intuitive operation, and broad motorcycle brand coverage. The device allows key programming via OBD or dump files, and also supports cluster recalibration and PIN code reading using the P001 programmer.

Functions:

Motorcycle key programming via OBD or dump file:

• APRILIA, BMW, BRP, DERBI, DUCATI, GILERA, HAOJUE, HARLEY-DAVIDSON, HONDA, INDIAN, ITALJET, KAWASAKI, MOTO GUZZI, PEUGEOT, PIAGGIO, POLARIS, SUZUKI, TRIUMPH, VESPA, YAMAHA

Cluster recalibration via dump file:

• APRILIA, BENELLI, BMW, BUELL, CAGIVA, DUCATI, GENERIC, HAOJUE, HARLEY-DAVIDSON, HONDA, KAWASAKI, KTM, KYMCO, MV AGUSTA, PEUGEOT, PIAGGIO, SUZUKI, TRIUMPH, YAMAHA

Cluster recalibration via OBD/Bench (optional with ODO kit):

• APRILIA, BRP (Bench), DUCATI (OBD), KTM

Key generation from dump:

• APRILIA, BMW, DUCATI, HONDA, KAWASAKI, PIAGGIO, SUZUKI, YAMAHA

Additional functions:

• HONDA key PIN code reading with original key
• SUZUKI key PIN code reading with original key
• YAMAHA key PIN code reading with original key
• BRP cluster recalibration via bench (optional)
• DUCATI cluster recalibration via OBD (optional)

Technical specifications:

• Operating system: Android 5.1.1
• Processor: RK3128 quad-core ARM Cortex-A7
• Battery: 3700 mAh rechargeable polymer lithium battery
• Internal storage: 16 GB
• Memory card: supports 32 GB micro SD (TF) card
• Display: 7.0-inch capacitive touchscreen
• Display resolution: 1024 × 600
• Wi-Fi: supported
• Operating temperature: -20℃ ~ 55℃
• Storage temperature: -20℃ ~ 70℃
• Weight: approx. 0.766 kg
• Dimensions: 243 mm × 148 mm × 36 mm

Included accessories for MK70:

• M001A – Main cable
• M003A – Multi-functional jumper
• M034 – HARLEY-DAVIDSON -4+6 adapter
• M042A – INDIAN/VICTORY -8 adapter
• M043 – BRP -6 adapter
• P001 – IMMO kit
• 12V2A – Charger
