Automatic metal grinding machine Holzmann FSM25AUTO 400V

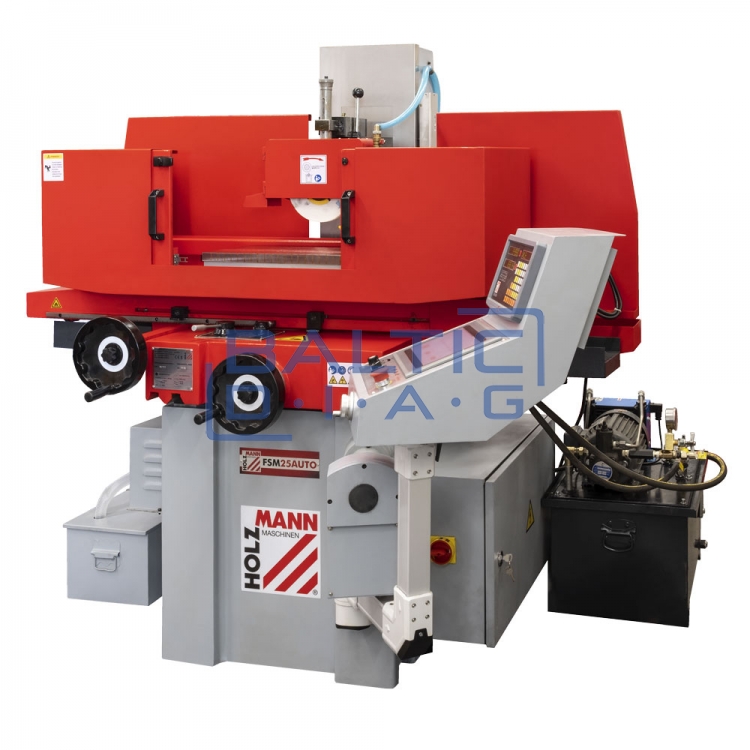

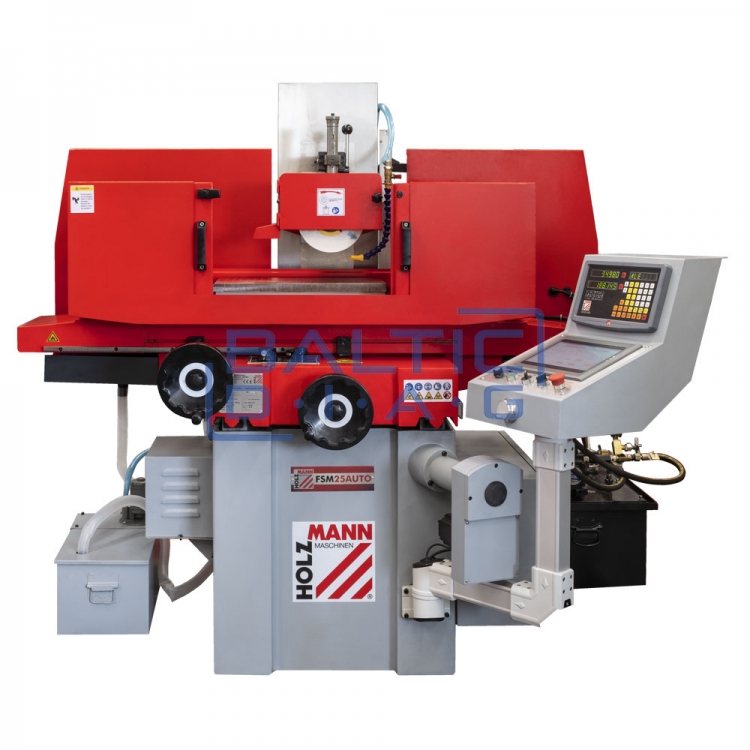

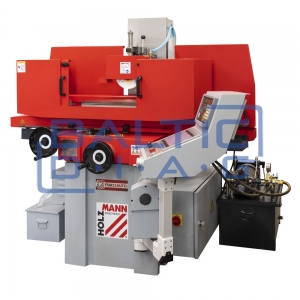

Automatic Metal Surface Grinding Machine Holzmann FSM25AUTO 400V

Features:

• Fully automatic surface processing of metal parts: preparatory, grinding, and finishing stages.
• Strong forged metal construction ensures high stability and resistance to vibrations.

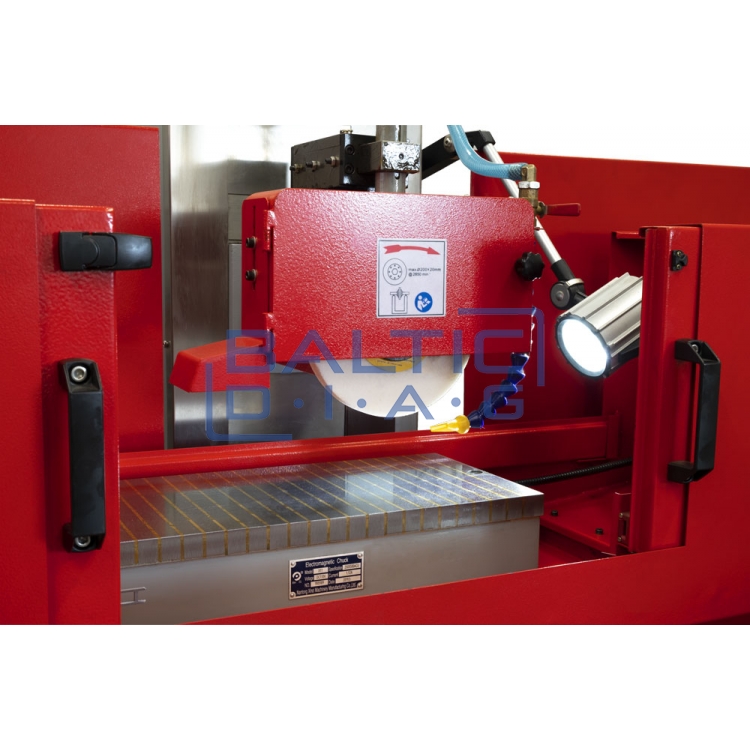

• Electromagnetic chuck (500 x 250 mm) for securing workpieces, controlled from the panel.
• V-shaped table slide in the longitudinal direction and double V-shaped in the transverse direction.
• Integrated coolant supply system with a 40 W pump and 12 l/min capacity.
• Diamond tool for grinding wheel dressing.

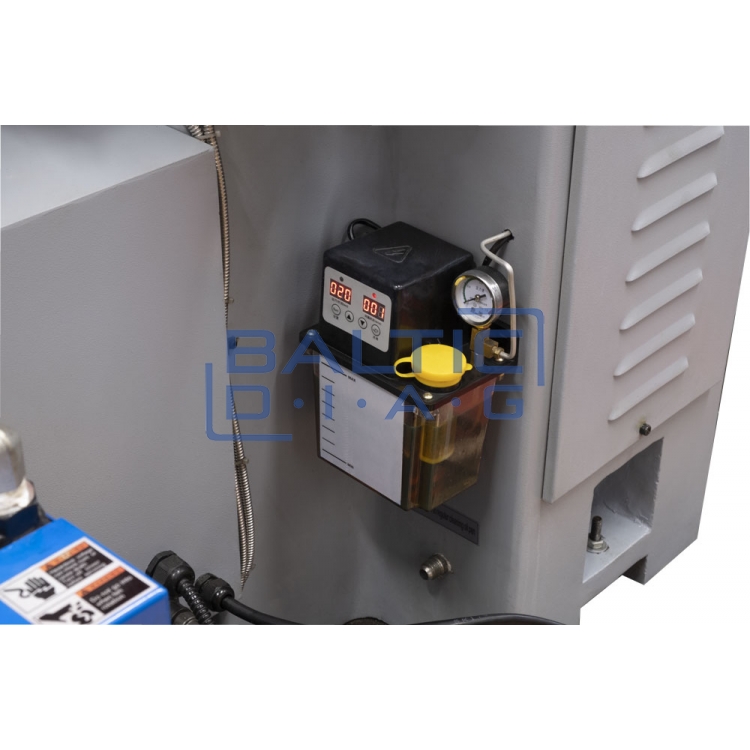

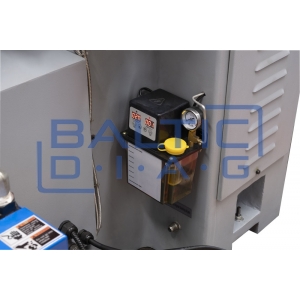

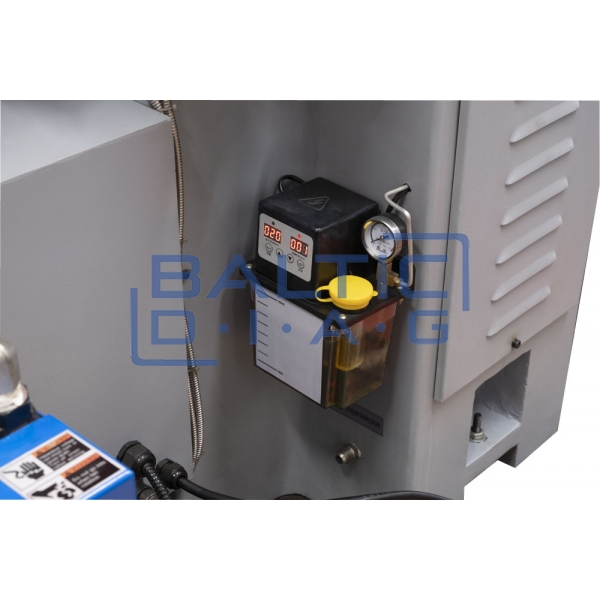

• Automatic centralized lubrication of guideways with time control function.
• Capability to grind workpieces up to 500 x 254 x 275 mm.

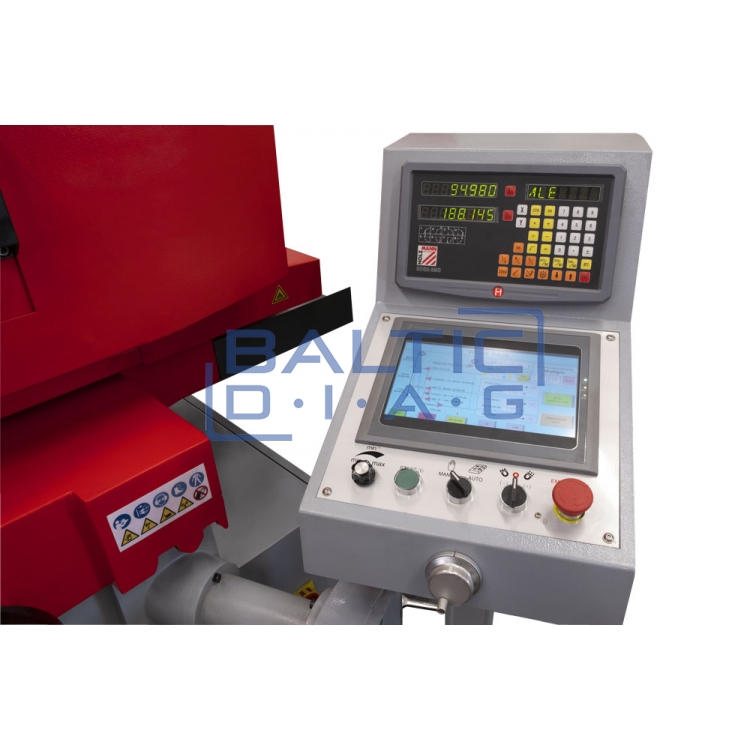

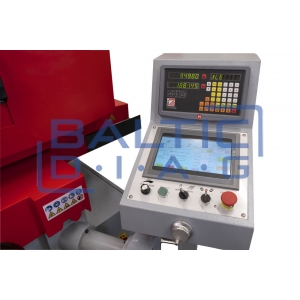

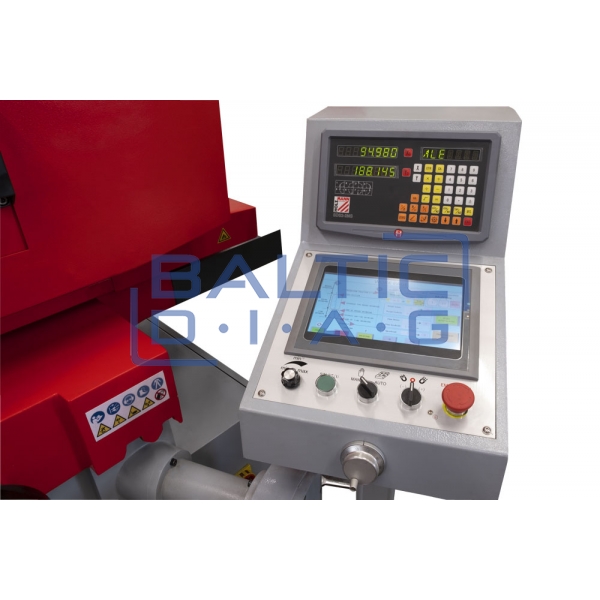

• Two-axis position monitoring on the screen (DRO).
• Hydraulic longitudinal feed with lever control and limit switch position adjustment.
• Manual longitudinal adjustment via spring-loaded handwheel.
• Manual cross feed adjustment (graduation 0.02 mm/rev).
• Separate motor for transverse movement, with step width adjustable via a potentiometer (0.1–11.2 mm/rev).
• Height adjustment using a 750 W servo motor.
• Maximum table load capacity: 180 kg.

Technical specifications:

• Motor power (S1 mode): 2200 W (1500/750/500 W)
• Power supply: 400V / 50Hz
• Spindle rotation speed: 2850 rpm
• Coolant pump power: 40 W
• Coolant flow rate: 12 l/min
• Stroke (travel): 450 mm
• Table dimensions: 250 x 510 mm
• Table height: 1000 mm
• Maximum permissible table load: 180 kg
• Overall dimensions: 1950 x 1650 x 1700 mm
• Machine weight: 1500 kg
• Total weight with packaging: 1600 kg
• Included equipment:
• Automatic metal surface grinding machine FSM25AUTO 400V
• Grinding wheel (Ø200 x 20 mm, WA/46)
• Coolant pump and tank
• Grinding wheel balancing device (shaft, stand)
• Maintenance tools
• Two-axis digital readout (DRO)
• LED lighting
• Hydraulic system with pump and cooling system
