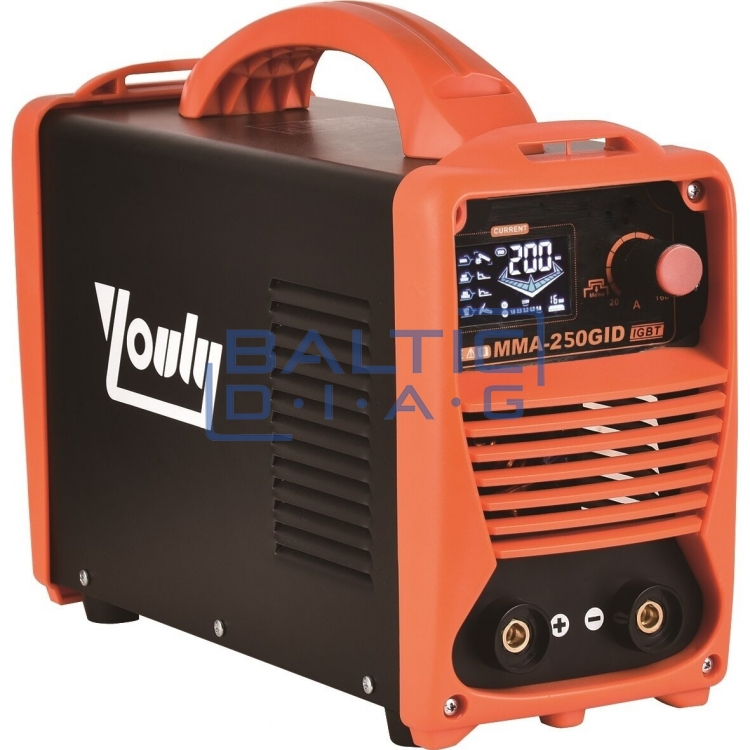

Inverter welding machine MMA-250 (IGBT)

Inverter welding machine MMA-250 (IGBT)

Functions: Electrode / tungsten electrode welding in an inert gas environment

For welding stainless and carbon steels, steels, copper and other non-ferrous metals

Equipment: power cable 2 m, electrode holder with cable MMA 2 m, ground cable 1.6 m, welder's panel and brush

Voltage 230 V, 50 Hz

Welding current range MMA 40A / TIG 27A

Idle voltage 65 V

Duty cycle 60%

Output current MMA 20 - 250 A / TIG 10 - 250

Rated input voltage MMA 30 V / TIG 20 V

Power factor 0.73

Efficiency 0.85

Gas Ar, He

Degree of protection IP21

Electrical insulation class F

Dimensions 400 x 160 x 310 mm

The dimensions of the package are 480 x 235 x 340 mm

Weight 7 kg

CE conformity
