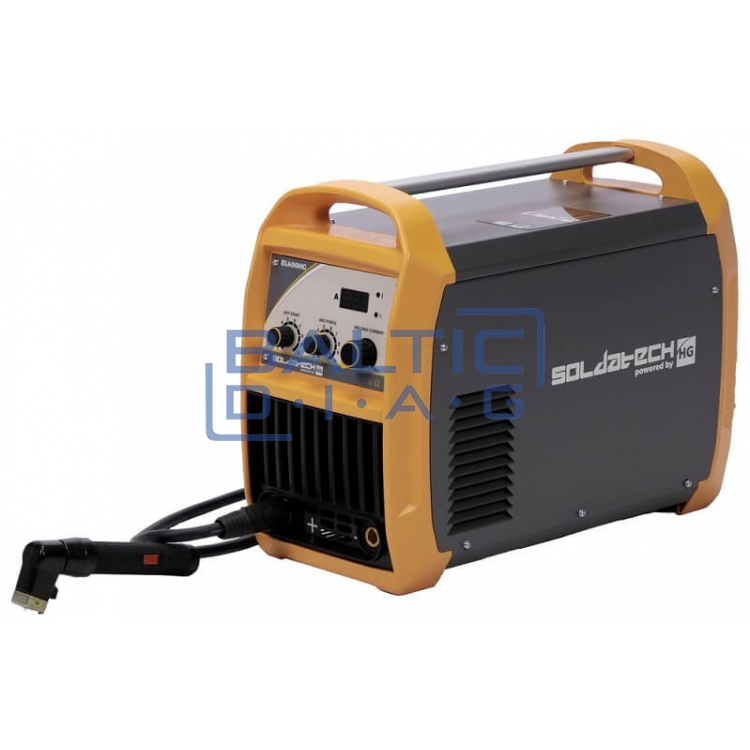

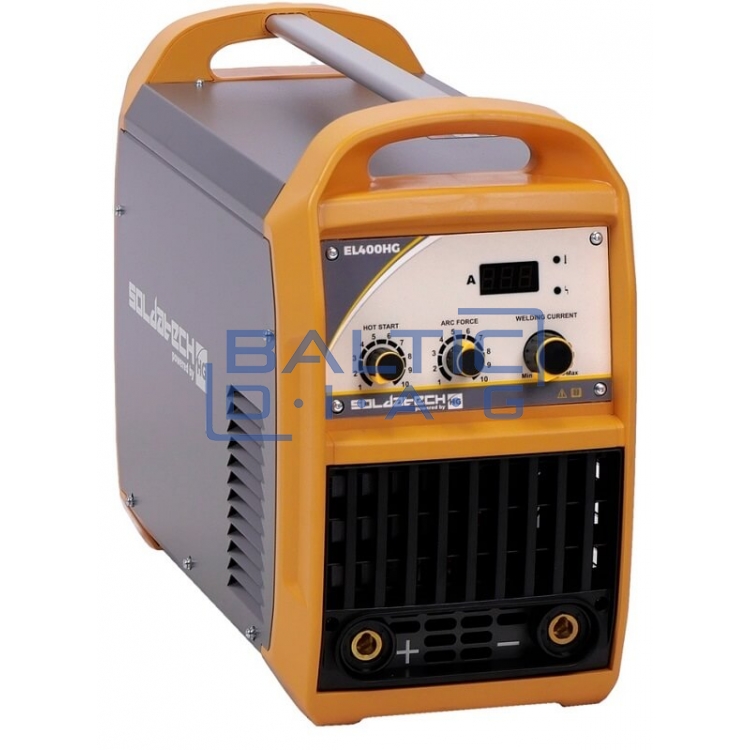

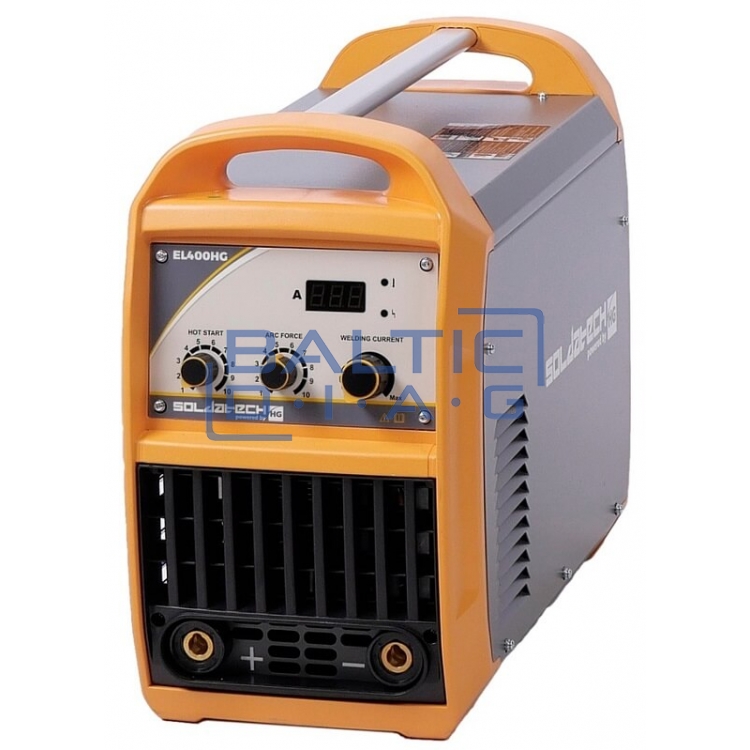

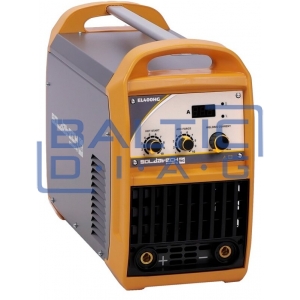

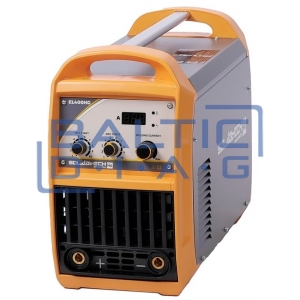

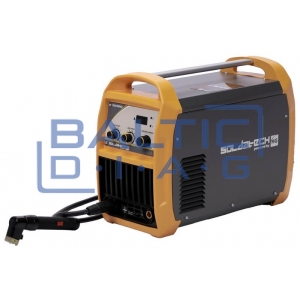

Inverter electrode welding machine 400A

Inverter electrode welding machine 400A

Warranty: By registering your equipment at www.soldatech-welding.com, you can extend the warranty period up to 5 years.

This Soldatechpowered electrode welding machine is the most powerful among electrode welding machines. Professional and high-quality productivity can be achieved quickly with this mobile device. The EL400HG has all the important functions of an electrode welder to make welding as easy as possible, e.g. ARC force function that determines the weld depth. The hot start/anti-stick feature rapidly increases the welding current to prevent the electrode from sticking to the workpiece. The easily adjustable welding current ensures that the EL400HG can be quickly used for welding jobs with different materials and thicknesses. Overload protection combined with a built-in fan prevents overheating and ensures high-quality welding performance for a long time. Ideal for welding carbon steel, low alloy steel and stainless steel. Boils well with rutile (E 6013) and basic (E 7018).

Standard equipment:

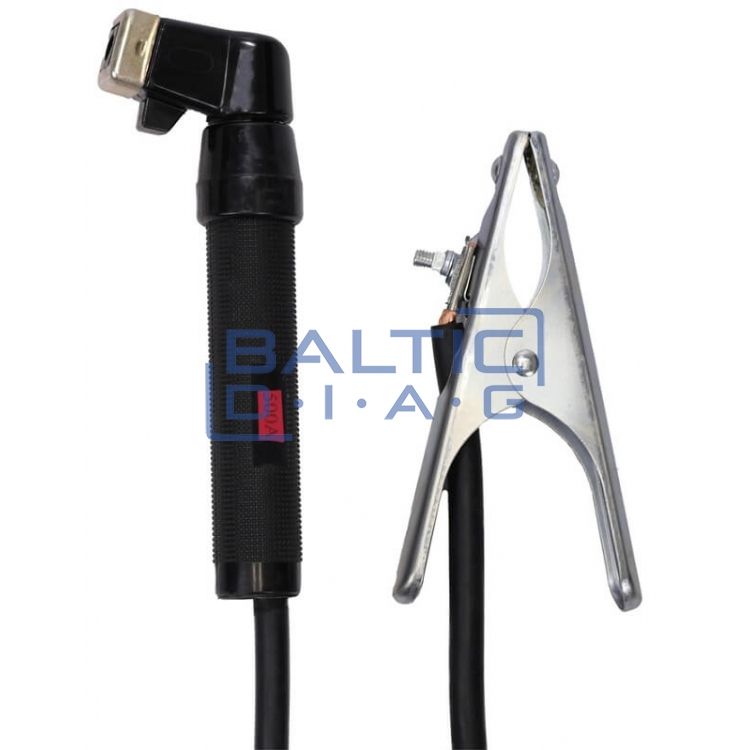

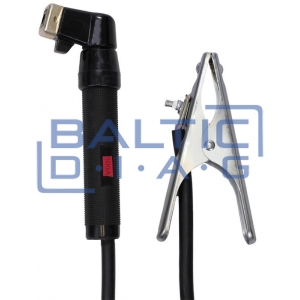

• Twistlock electrode torch with 5m 35mm² cable
• Welding ground terminal 500A with 3m 35mm² cable
• 5-pin 32A plug with 2.5 m 4x4.0 mm² cable
• European dinse connectors 13mm

Technical specifications:

• Voltage = 400V – 3 phases
• Frequency = 50/60Hz
• Fuse protection = 3x 16A C-char
• Input power = 19kVA
• No load voltage = 82V
• Duty cycle (at 20°C ambient temperature) = 60% - 400A
• Duty cycle (at 40°C ambient temperature) = 25% - 400A
• Welding current range = 15 - 400A
• Welding electrodes = 1.6 - 4.0 mm
• Protection class = IP21S
• Dimensions = 550 x 245 x 430 mm
• Weight = 24.5 kg
