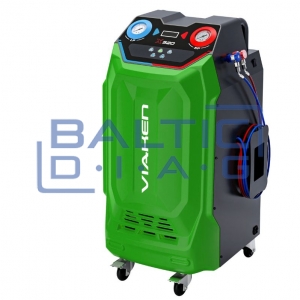

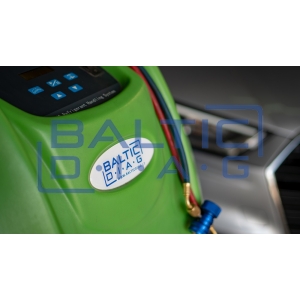

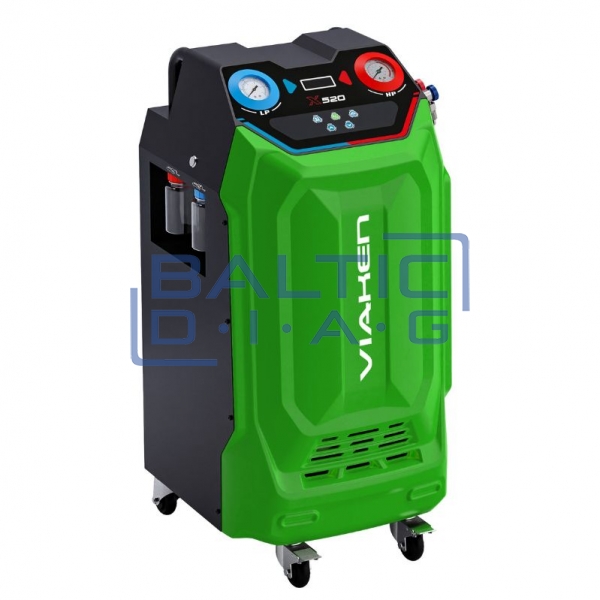

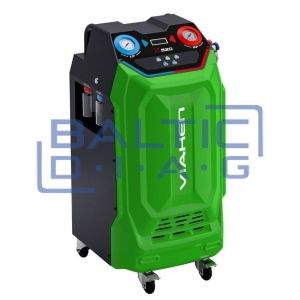

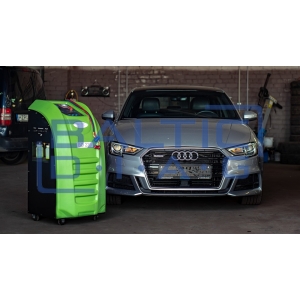

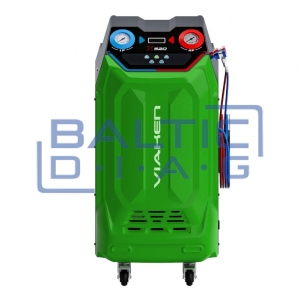

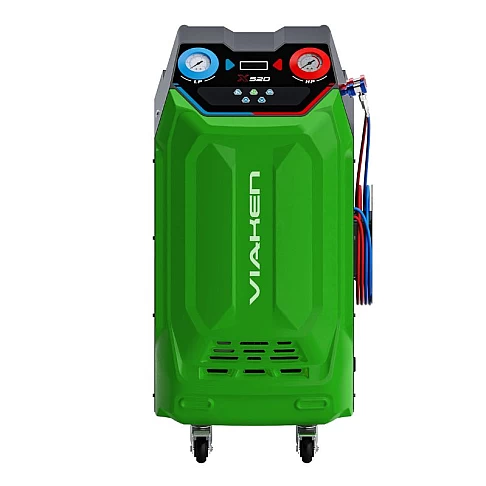

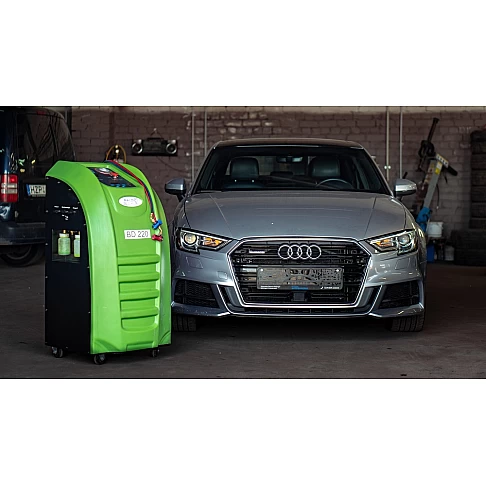

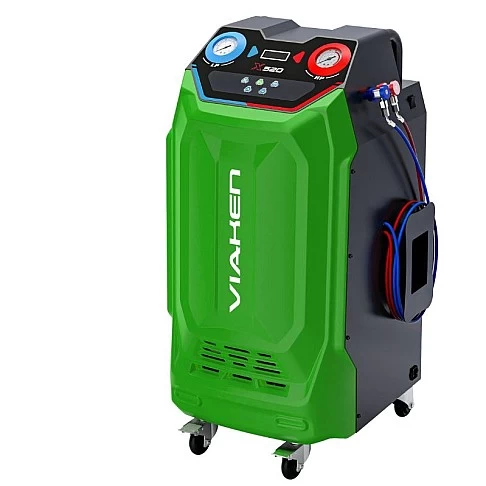

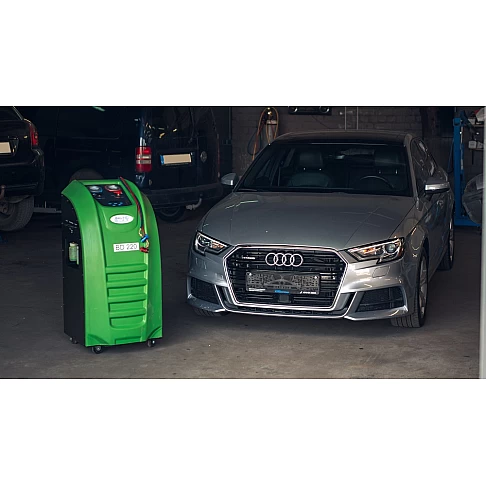

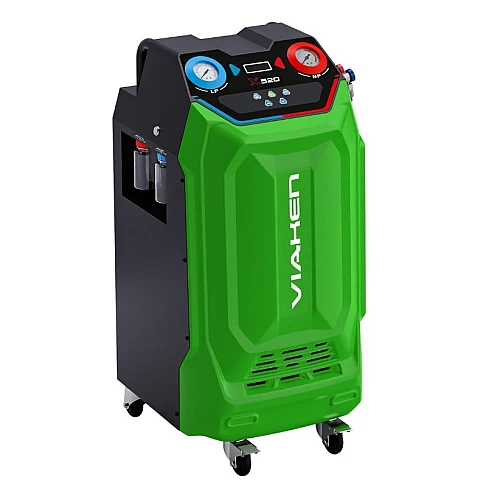

Semi-automatic air conditioning service station BD 220
- SKU: BD05600
1,599.00 €
Send Message
Description

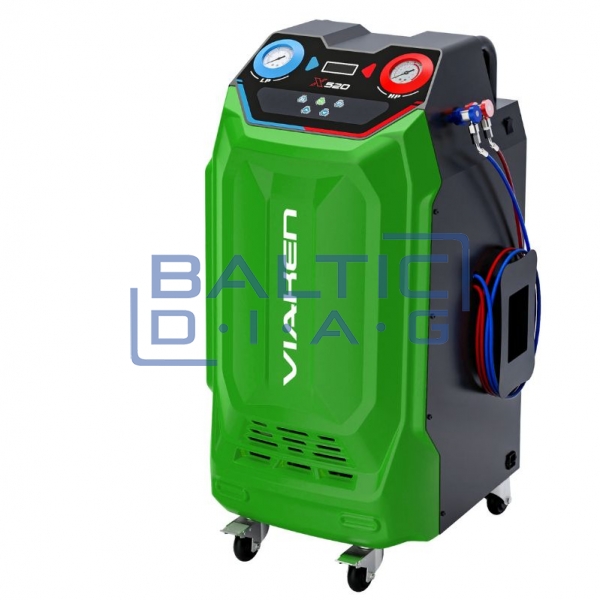

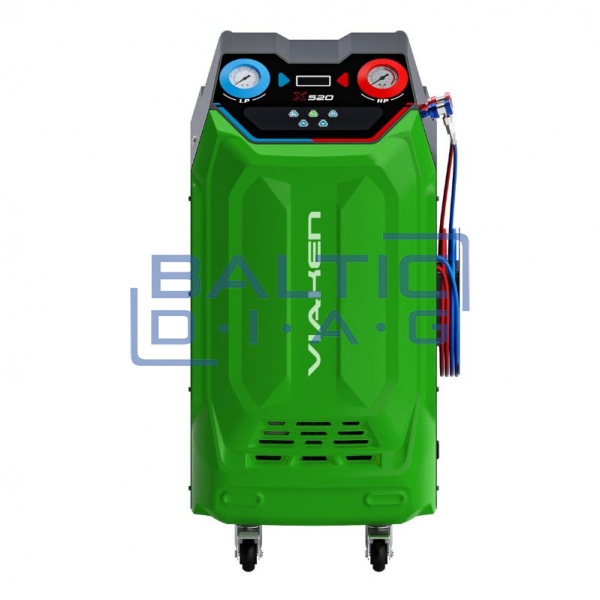

Semi-Automatic Air Conditioning Service Station BD 220
Country of origin: Poland, warranty period – 24 months

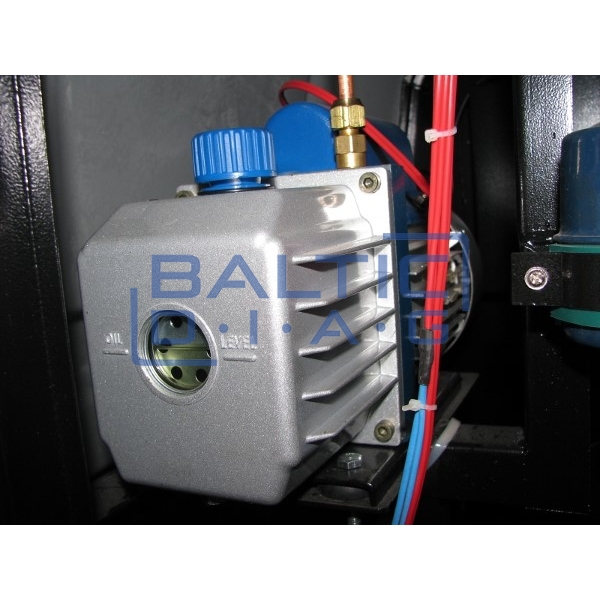

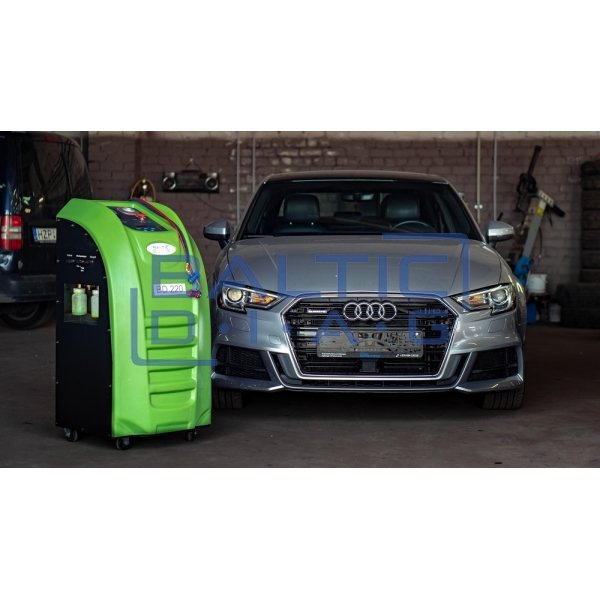

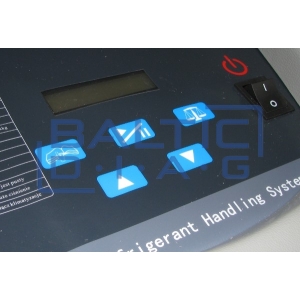

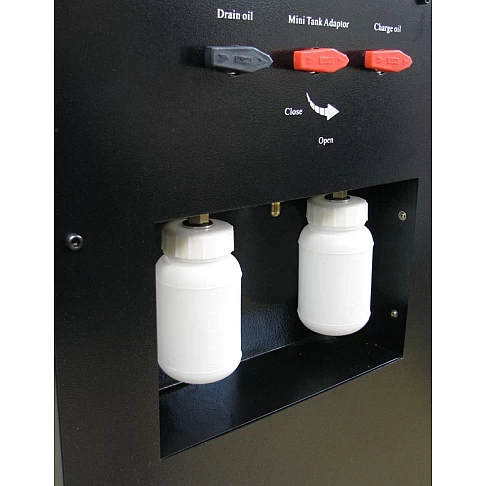

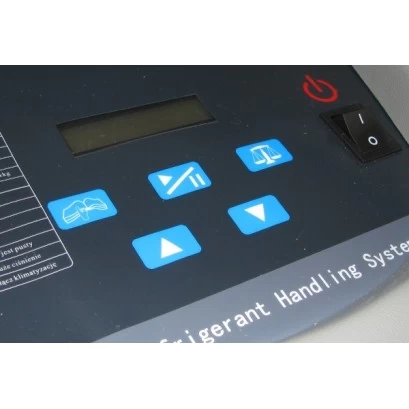

The BD 220 semi-automatic air conditioning service station, 2025 model, is designed for precise and efficient servicing of air conditioning systems in passenger cars, trucks, construction, and agricultural machinery. It is ideal for auto service centers, workshops, and maintenance stations. The CE-certified unit is equipped with advanced regeneration filters that allow for accurate recovery and reuse of the refrigerant while separating used oil. The new-generation model features a more compact design, deep recovery mode, convenient push-button oil dosing, transparent oil tanks, scale locking mechanism, a reliable vacuum pump, and a robust physical keyboard. The user interface is designed for easy operation and includes a menu in the Lithuanian language.
Functions:
- Refrigerant recovery from the air conditioning system
- Used oil recovery and separation
- Vacuum creation in the system
- Oil dosing
- Refrigerant charging
Technical Specifications:
- Refrigerant type: R134a
- Power consumption: 700 W
- Recovery rate: 250 g/min
- Filling rate: 800–1200 g/min

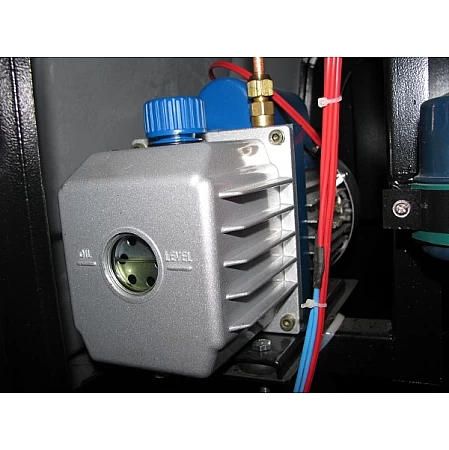

- Vacuum pump capacity: 5.4 m³/h
- Filtering capacity: 200 kg
- Scale accuracy: 10 g
- System capacity: 10 kg
- Scale locking function
- Unit dimensions (HxWxD): 1040 x 510 x 520 mm
- Package dimensions (HxWxD): 1260 x 565 x 570 mm
- Weight: 70 kg (net) / 82 kg (gross)
Included in the package:
- Air conditioning service station

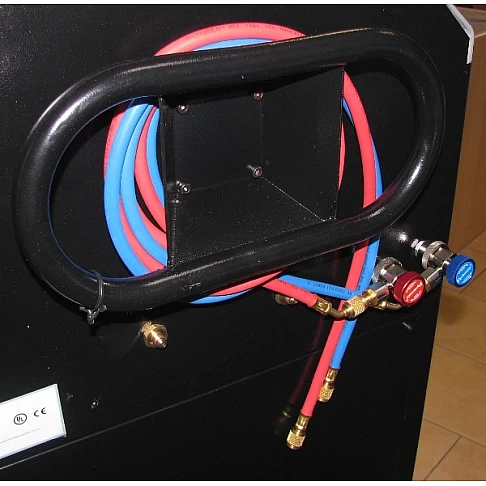

- Two service hoses
- Power cable
- User manual
