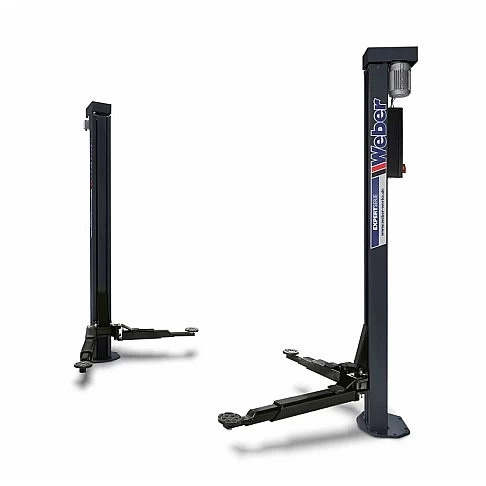

Weber C-2.30 two-column screw lift

Weber C-2.30 two-column screw lift

Manufacturer: Weber (Germany);

Description:

- Adjustable distance between columns thanks to electric synchronization of two motors

- The profiles of the hot-rolled columns are thin in design, but extremely strong and resistant to bending

- Lifting columns can be rotated 30 degrees, which makes it easier to open the car punch

- Precise lifting and lowering

- Extremely low column height of 2550 mm allows the lift to be installed in low rooms

- Asymmetrical lifting paws for better car door opening angles

- Automatic paw lock with manual unlocking

- Lifting paw bases with rubber guards

- Warning signal when the truck is approaching foot height

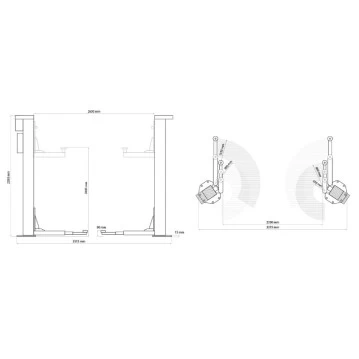

Technical parameters:

- Lifting capacity: 3000 kg

- Max. lifting height: 2005 mm

- Min. height: 90 mm

- Column height: 2550 mm

- Distance between columns: 2650 mm

- Passage width: 2350 mm

- Overall width: 3315 mm

- Min. room height: 2800 mm

- Length of long paws: 800 - 1350 mm

- Length of short paws: 470 - 890 mm

- Weight: 500 kg

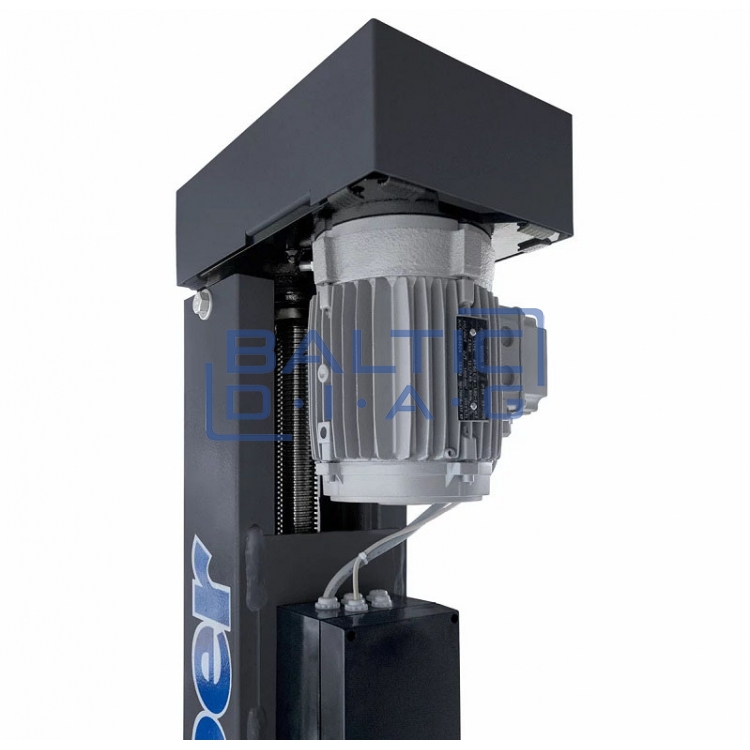

- Engine power: 2x 2.5 kW

- Lifting time: 45 s

- Power supply: 400V / 3 ph / 50 Hz

- Column color: gray RAL 9006

- Paw color: blue RAL 5002
