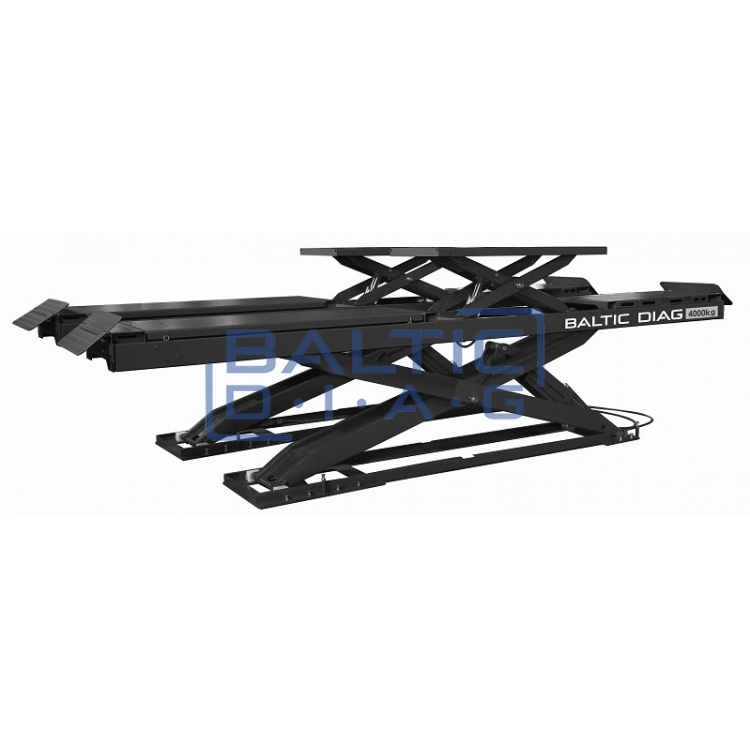

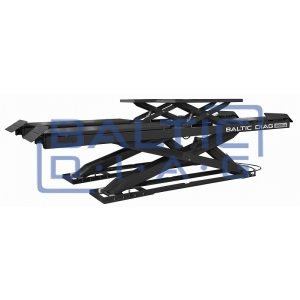

Scissor lift with integrated secondary lift BD640WA

Scissor Lift with Integrated Secondary Lift BD640WA

Features:

• Reliable scissor-type construction ensuring stability and safety
• Integrated secondary lift for undercarriage-related tasks
• Ergonomic, simple, and safe operation
• Suitable for various types of vehicles
• Floor-recessed installation

Technical specifications:

• Lifting capacity: 4000 kg
• Secondary lift capacity: 4000 kg
• Operating principle: electro-hydraulic
• Maximum lifting height: 1850 mm
• Secondary lift height: 450 mm
• Minimum lift height: 330 mm
• Main platform length: 4500 mm
• Secondary lift platform length: 1450 mm
• Main platform width: 605 mm
• Secondary lift platform width: 550 mm
• Clearance between platforms: 820 mm
• Lifting time: ~50 seconds
• Lowering time: ~60 seconds
• Electric motor power: 2.2 kW
• Power supply: 400 V or 230 V / 50 Hz
• Weight: 2000 kg
• Dimensions: 4760 x 2030 mm (length x width)
