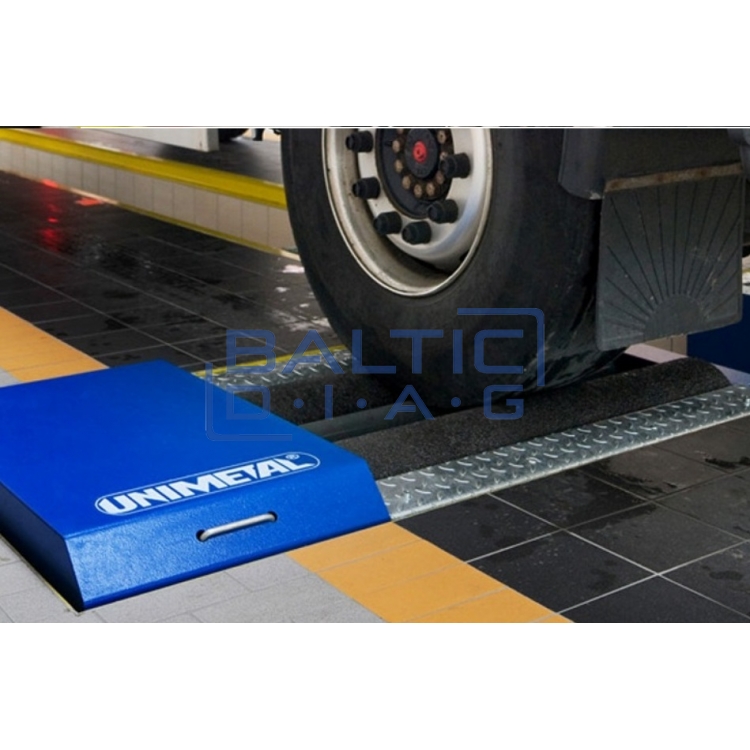

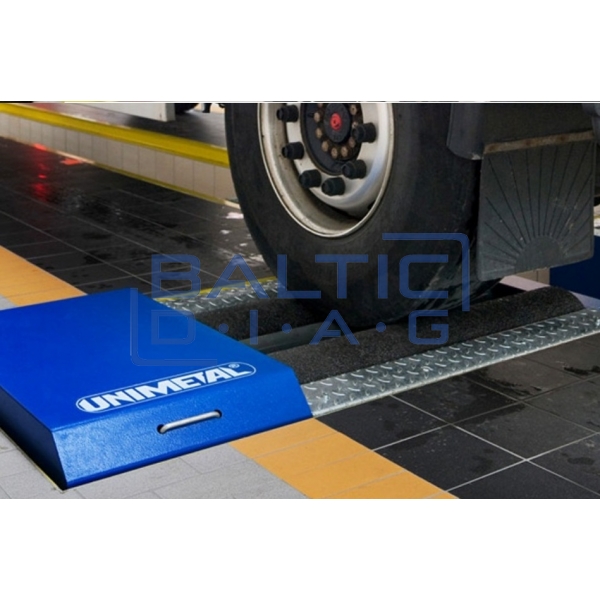

Brake testing stand for heavy-duty vehicles over 3.5 t Unimetal RHC-30

Brake testing stand for heavy-duty vehicles over 3.5 t Unimetal RHC-30
Brake testing stand for heavy-duty vehicles over 3.5 t Unimetal RHC-30
Installation is available upon request!
The price includes the brake testing stand and the control unit.
Additionally, it is necessary to purchase a computer set or other accessories such as a concrete mounting frame, wireless control panel, and others!

Pre-order
21,999.00€
Ex Tax: 18,180.99€
UNIMETAL UNIMETAL
Prices include VAT
Add to Cart
Add to Wish List
Want to buy or learn more?

Fill out the inquiry form

Brake Testing Stand for Heavy-Duty Vehicles Over 3.5 t – Unimetal RHC-30
Country of origin: Poland, warranty period – 24 months

The Unimetal RHC-30 is a professional brake testing stand designed for heavy-duty vehicles with axle loads up to 18 tons. This stand is ideal for testing the braking systems of trucks, buses, tractors, trailers, and 4x4 drive vehicles. It can be used as a standalone unit or integrated into the UNILINE QUANTUM 3000 testing line. Its innovative microprocessor control system, combined with UNILINE QUANTUM software, ensures smooth and precise testing processes, while optional functionalities allow for in-depth analysis. The RHC-30 is intended for professional use in heavy vehicle maintenance centers, service facilities, and vehicle inspection stations.

Features:
  • Suitable for trucks, buses, tractors, trailers, and 4x4 vehicles
  • Can be used independently or as part of the UNILINE QUANTUM 3000 testing line
  • Optional automatic 4x4 transmission detection and testing (upon request)
  • Compatible with control units: CJS U5 and Galaxy U5
  • User-friendly interface with support for advanced testing scenarios
  • Option to integrate weighing systems, pressure sensors, and other accessories
  • Durable construction with an in-ground frame for floor installation
Technical Specifications:
  • Maximum axle load: 18 tons
  • Brake force measurement range: 0–30 kN
  • Track width: 990–2870 mm
  • Wheel diameter range: 14–33 inches
  • Roller drum length: 1000 mm
  • Measurable pressure range (with optional equipment): 0–1 MPa
  • Brake pedal pressure range (with optional equipment): 0–1000 N
  • Motor power: 2 x 7.5 kW
  • Coefficient of friction (dry/wet tires): 0.8 / 0.6
  • Testing speed: 2.5 km/h
Required Accessories:
  • Remote control panel
  • Control unit: CJS U5 or Galaxy U5
  • Standard Equipment:
  • Control unit (without computer)
  • Wireless radio remote control
  • Power and signal cables
  • Mounting frame for embedding in concrete
Optional Accessories (upon request):
  • Frame structure for in-ground installation (RHC)
  • Frame structure with additional frame for integrating weighing system
  • Automatic 4x4 transmission detection and 4WD testing functionality
  • Roller covers for motorcycle testing (compatible with HV testing stands)
  • Weighing system for RHC stand
  • Electromagnetic brake for RHC-30 model
  • Inverter / Soft Start / rollback assistance system (required with 7.5 kW motors)
  • Plates between rollers for in-ground RHC stands
  • Roller covers for RHC stands
  • Hydraulic axle load simulator (only for in-ground versions)
  • Wireless gauge
  • Brake pedal pressure sensor (0–1000 N)
  • Parking brake pressure sensor
  • Pressure sensor for pneumatic systems (0–1000 MPa)
  • Pneumatic wheel clamps
