Intelligent SCR / DPF filter cleaning machine brown

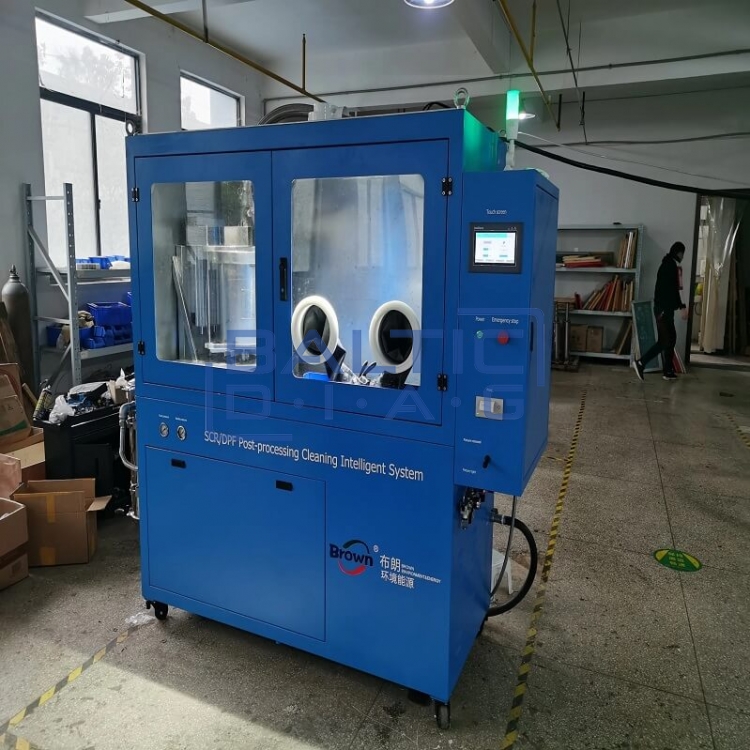

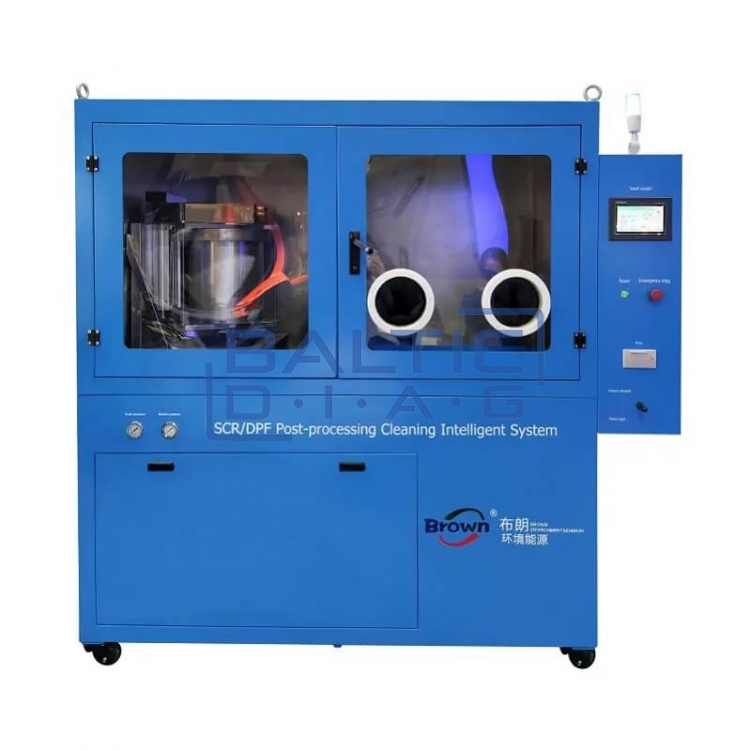

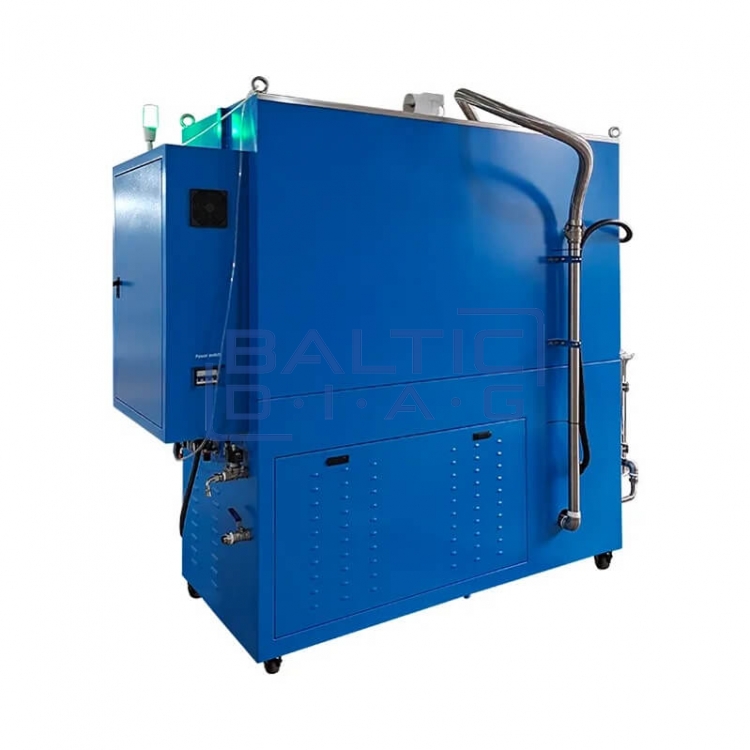

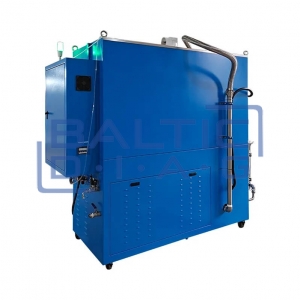

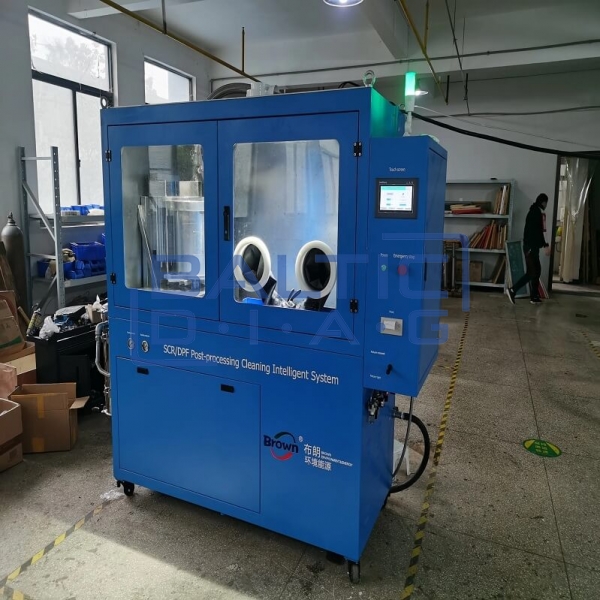

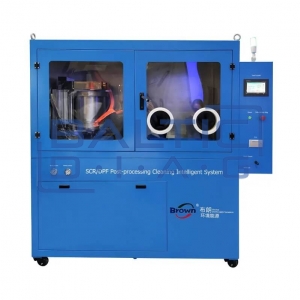

Intelligent SCR / DPF Filter Cleaning Machine Brown

Country of origin: China, warranty period - 24 months

The Intelligent SCR / DPF Filter Cleaning Machine Brown is a high-quality device designed for the efficient cleaning of DPF, SCR, DOC, and GPF filters in diesel vehicles, as well as catalytic converters. This machine performs all necessary cleaning cycles, including washing, drying, and testing, ensuring maximum efficiency, reduced emissions, and an extended filter lifespan.

Functions:

• Efficient cleaning of all types of DPF and SCR filters.
• Removes all solid particles, PM10 residues, cerium residues, and carbon deposits.
• Intelligent blockage assessment: The system automatically detects the level of filter clogging.
• Visual inspection: Allows real-time monitoring of the filter's condition during cleaning.
• Constant temperature heating ensures optimal cleaning conditions.
• Pulse cycle and micro-bubble washing: Adjustable cleaning intensity.
• Unique water-air mixture cleaning technology: Effectively removes even heavily clogged filters.
• Pressure testing: Verifies filter cleanliness before and after the cleaning process.
• Fast drying and noble metal regeneration in DPF and SCR filters.
• Intelligent frequency conversion system: Adjustable pressure for optimal performance.
• Data printing: Generates a cleaning report before and after the process.
• Fully automatic cleaning cycle (washing and drying) in one machine, saving time and costs.
• Easy and automated operation.
• High-quality SS304 stainless steel construction.
• Integrated gloves for manual filter cleaning.
• Fast operation: Regeneration of a car DPF takes only 30 minutes, while a truck DPF takes 120 minutes.
• Eco-friendly cleaning process designed for DPF / SCR filters.
• Option to connect an additional high-pressure cleaning device as needed.

Technical Specifications:

• Model: BR-SCR/DPF-MA01-CRP
• Dimensions (L x W x H): 2340 mm x 920 mm x 2140 mm
• Net weight: 720 kg
• Voltage: 380V, three-phase
• Rated power: 18 kW
• Input air pressure: 0.4–0.8 MPa
• Tank volume: 200 L
• Material: 304 stainless steel
