Digital oscilloscope MDO2504

Digital oscilloscope MDO2504

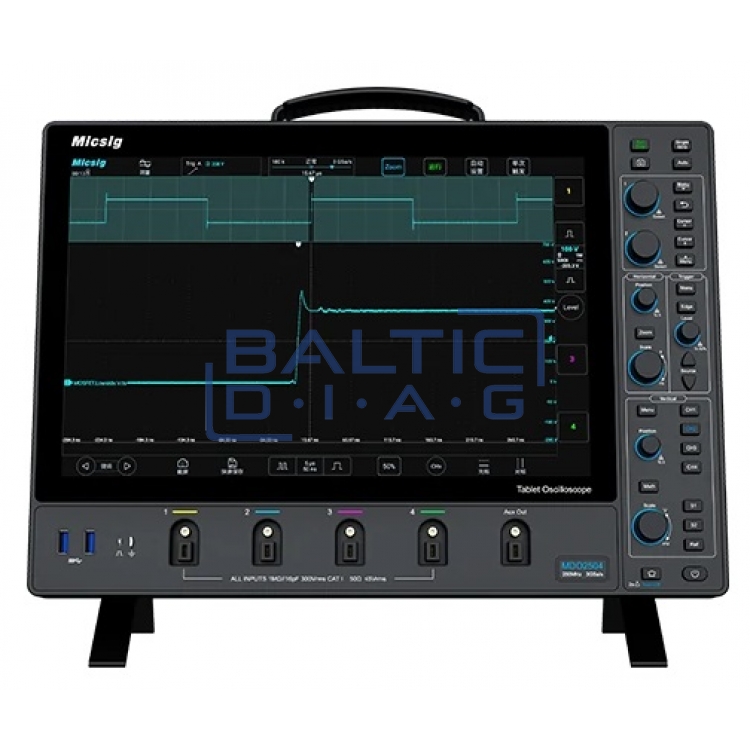

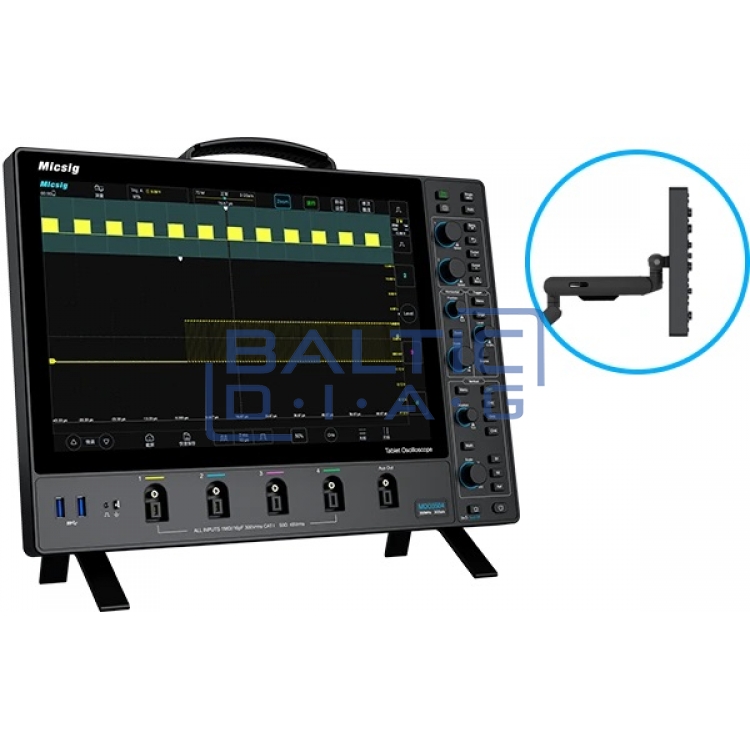

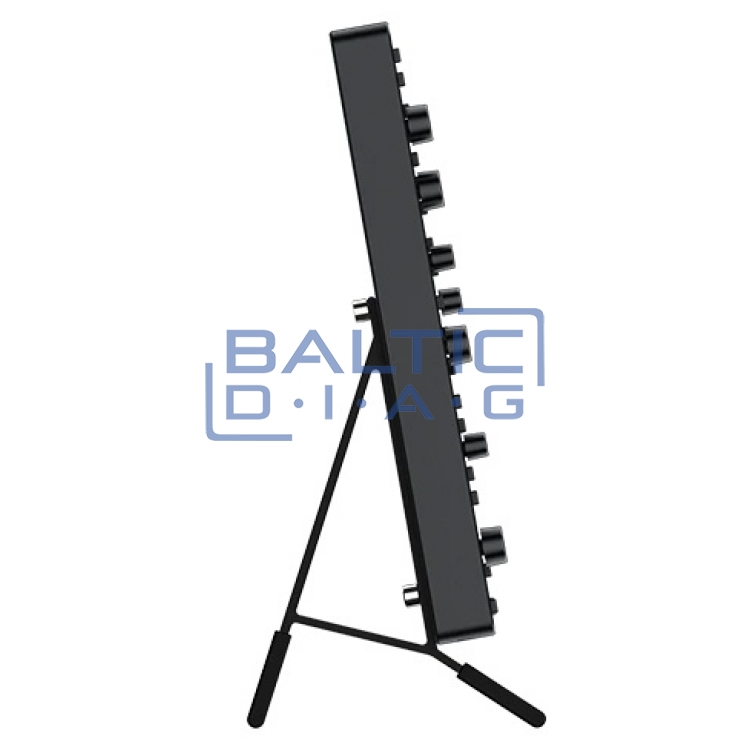

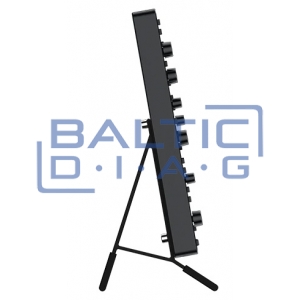

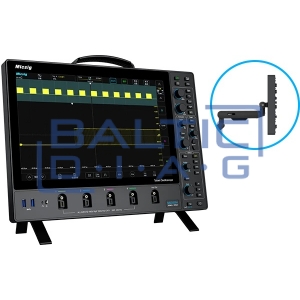

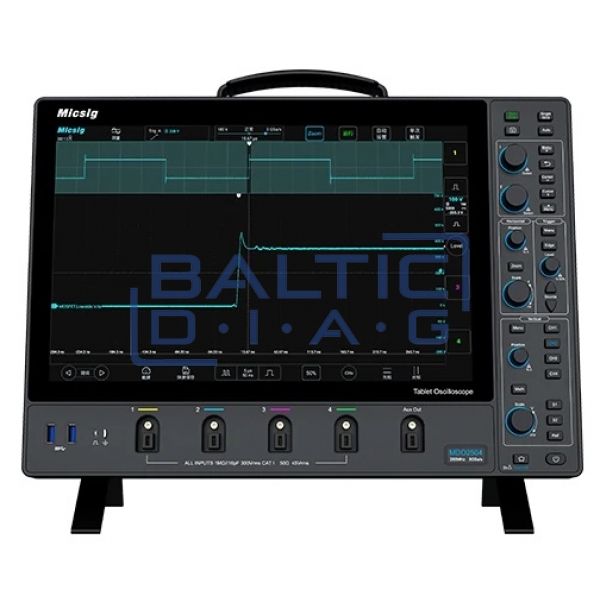

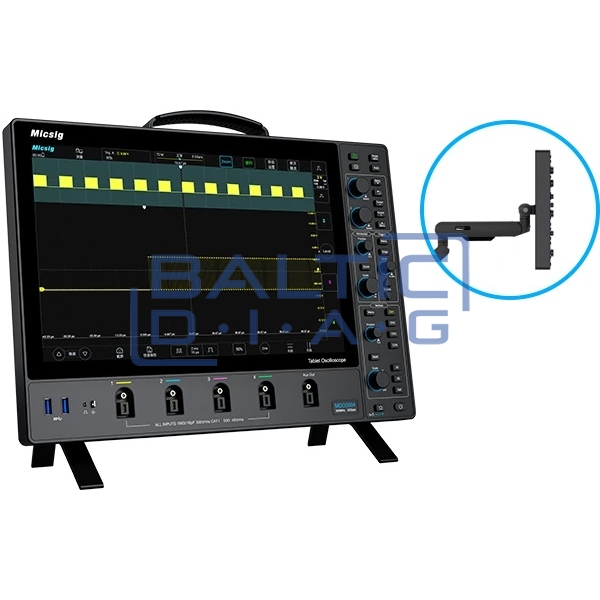

The MDO series is Micsig's fifth-generation digital storage oscilloscope with a bandwidth of 500 MHz, a data readout rate of 3 GSa/s, 4 analog input channels, and a memory depth of 360 Mpts; The 3.58 cm ultra-thin body allows the device to be conveniently mounted on the wall or on a special handle, significantly saving desk space. The integrated 14" touch-sensitive screen with a resolution of 1920 x 1200 ensures the smoothest form of displaying results.

Combining the SigTestUI™ operating system with 10 years of experience and user feedback has created the MDO series, which allows the user to enjoy a simplified user interface that novice users can learn to use in minutes. The original Mic-OPI™ probe interface automatically detects passive probe attenuation and performs automatic calibration at the touch of a button. The noise of the MDO series is less than 90 μVrms at full 500 MHz bandwidth, enabling engineers to accurately capture weak but important signals during daily system testing and debugging.

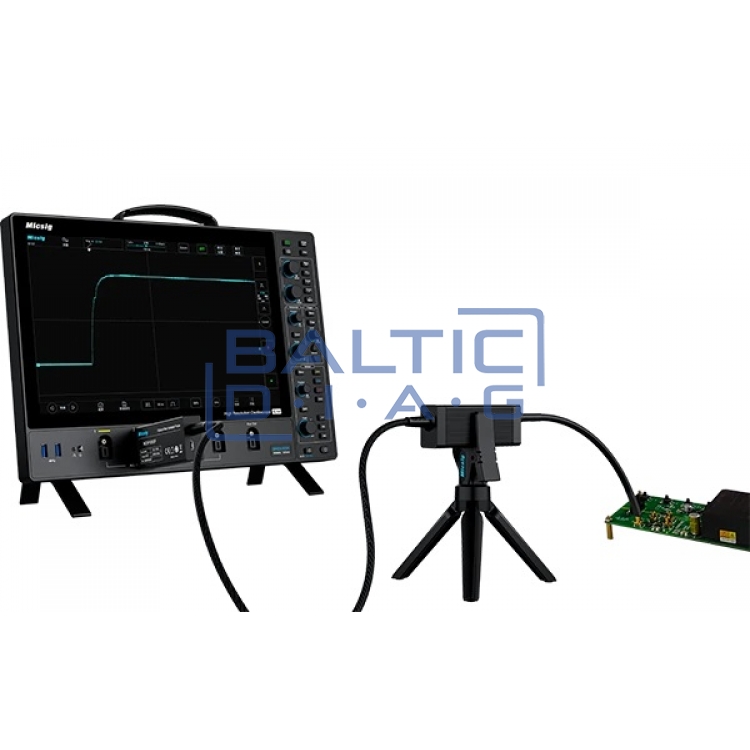

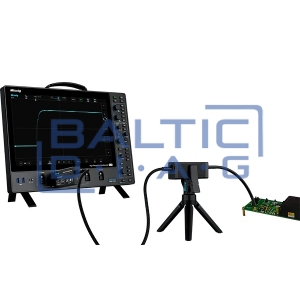

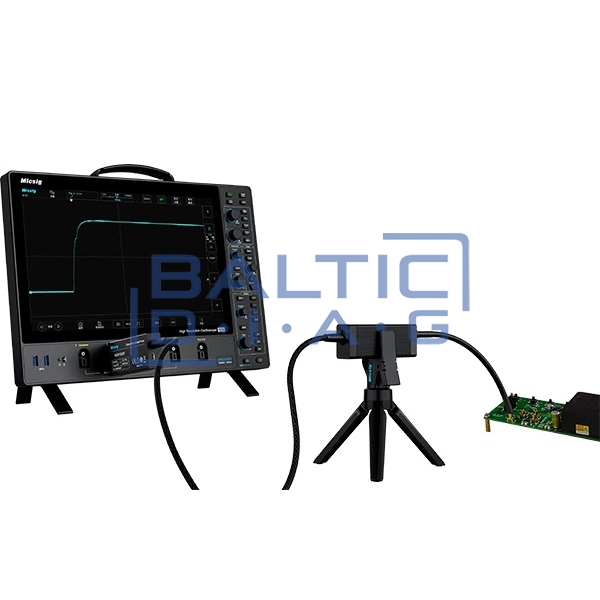

Memory depth of up to 360 Mpts ensures excellent signal fidelity. Segmented storage divides the limited memory space into several smaller segments and collects several generated pulses into one storage location. Very effectively captures target signals, many times over a long period of time and allows them to be played back for further analysis. In software, digital filtering can selectively pass or block signal components within a certain frequency range. This is very useful when analyzing specific frequency bands of a signal or observing changes in specific frequency components. In addition to standard passive probes, the MDO series communicates with all Micsig probes: fiber optic isolated probe, high voltage differential probes and AC/DC probes. Such device compatibility can maximize the performance and versatility of the probe and oscilloscope.

Technical parameters:

• Bandwidth: 250 Mhz
• Rise Time: ≤1.4ns
• Analogue channels: 4
• Real-time sampling rate: 3 GSa/s
• Memory depth: 360 Mbpts
• Maximum wave capture rate: 230,000 wfm/s
• Noise: <90 μVrms
• Interfaces: USB 3.0 Host; USB Type-C; HDMI, power socket
• Display: Full touch 14”, 1920 x 1200 resolution
• Dimensions: 400 x 280 x35.8 mm
• Weight: 4.3 kg
