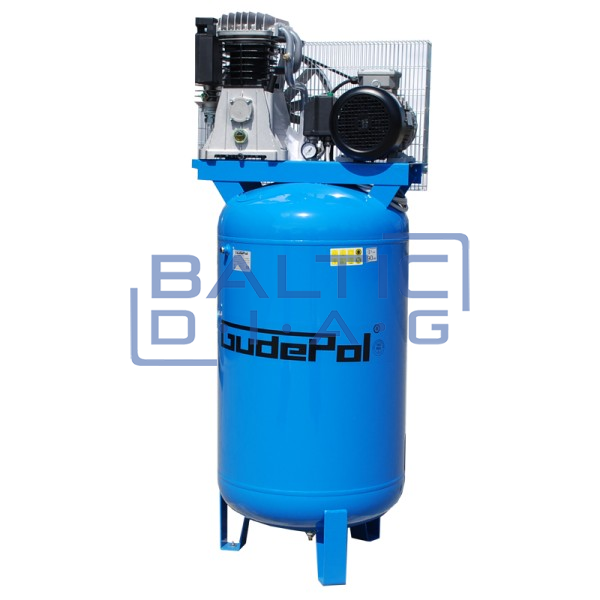

GudePol vertical air compressor 270L 650L / min 10bar

GudePol vertical air compressor 270L 650L / min 10bar

Manufacturer GudePol (Poland); warranty 24 months

Description:

Two-stage belt compressor.

A reciprocating compressor in which the motor is connected to the compressor unit via a belt drive.

Compressor with 400V / 50Hz power supply.

The compressor has thermal protection that protects the motor from overload.

Two pistons arranged side by side in one cylinder.

The cast iron cylinder guarantees a long service life and efficient cooling.

Sealing the cylinder pistons with three rings ensures low lubricity of the compressed air.

Simple control of the oil level through the sight glass.

Two-stage air compression using an air cooler in inter-stage compression at the same time, which results in higher efficiency.

Compressor with tank manometer.

The operation of the compressor is controlled by a pressure switch that ensures its operation in the machine.

Automatic start at minimum pressure and shut-off when maximum pressure is reached.

The compressor has a safety valve that protects the motor from overload and makes it easy to restart the compressor.

Compressed air tank protected by a safety valve and with a valve to facilitate the drainage of the tank.

The large bearing diameter used in the crankshaft bearing system guarantees a long service life.

Technical data:

Suction capacity: 650 l / min

Suction capacity: 39 m3 / h

Bako capacity: 270 l

Maximum pressure: 10 bar

Engine power: 4 kW

Number of cylinders: 2 n0

Pressure degrees: 2 n0

Voltage: 400 V

Engine power: 5.5 HP

Dimensions: 65x172 cm

Weight: 140 kg
