Jet ski diagnostic tool JalTest PC Link

Jet Ski Diagnostic Tool JalTest PC Link

Why Choose JalTest PC Link?

• Extensive Coverage in the Market
• Compatible with up to 99.5% of boats and watercraft models — from basic to complex systems.
• One Tool – Multiple Vehicle Types
• Suitable not only for marine diagnostics, but also for trucks, buses, agricultural machinery, and trailers.
• Frequent Updates and a Large Data Base
• The software is updated three times a year to ensure the latest information and coverage of manufacturers.
• Convenient Connectivity and Mobility
• Can be used via USB or Bluetooth — offering maximum flexibility for working in any conditions.
• Universal Diagnostic Cables and Adapters
• Connect to any system interface — a reliable solution for every situation.
• Durable and Shock-Resistant Housing
• Designed for outdoor use — shockproof and suitable for use in a wide range of weather conditions.

JalTest Marine Diagnostic Coverage:

• Different watercraft brands: 84 and growing
• Different watercraft models: 1499 and growing
• Technical data entries in the database: 2861 and growing
• Electronic diagram entries in the database: 2137 and growing

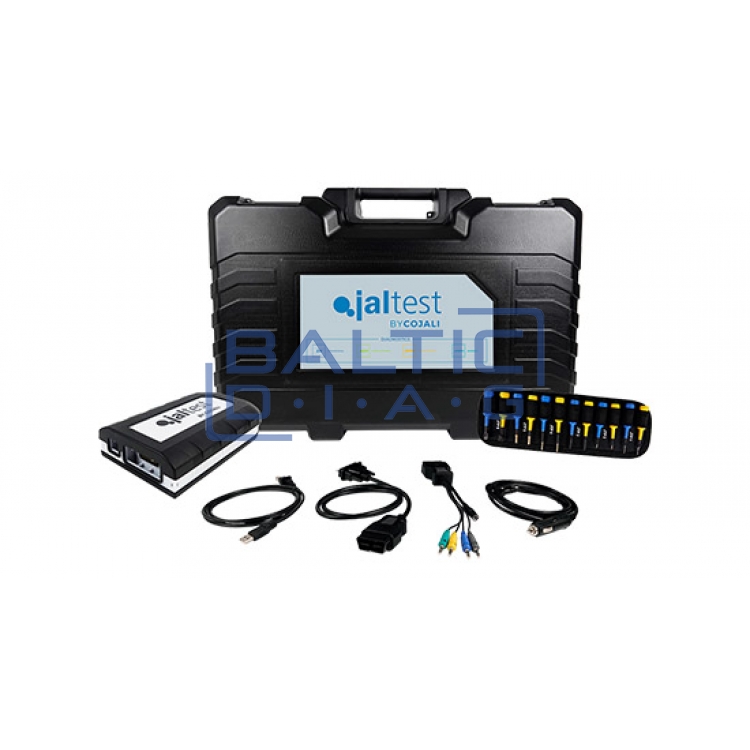

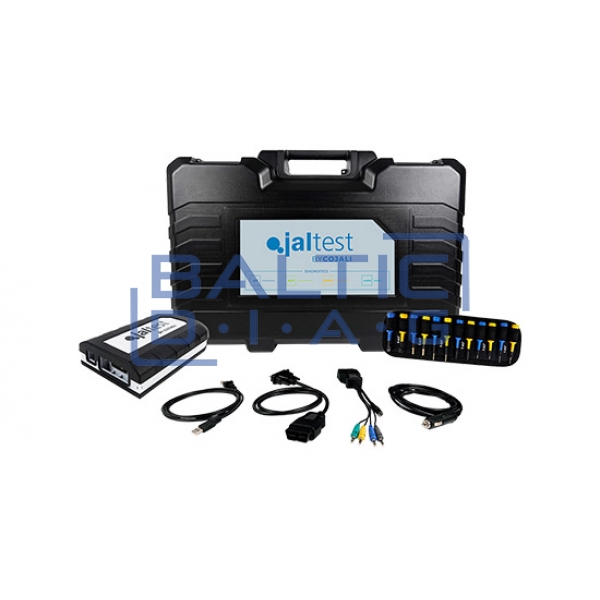

Standard Package:

• Jaltest Marine Jet Ski software 74502005
• Jaltest Marine Jet Ski license 74602005

Technical Specifications:

• Connects to desktop or laptop via Bluetooth interface or USB cable
• Bluetooth range: 20–50 m
• Minimum PC requirements: DVD drive, Windows XP, 7, 8, 10 64-bit OS, 2 GB RAM, 10 GB free disk space, USB port
• Powered via OBD connector or 12/24 V DC power supply
• Power consumption: 7W
• Shock-resistant housing
• Weight: 1.2 kg
• Dimensions: 183 x 131 x 56 mm
• Operating temperature: from 0°C to +45°C
• Multilingual menu
• Certifications: CE, FCC, RoHS
• Tester Features and Application Capabilities:
• ECU diagnostics via OBD interface or dedicated adapter
• Ability to connect to any diagnostic port using the universal diagnostic cable with specialized terminals
• Integrated automatic multiplexer – automatic switching of K and L, CAN, and SAE lines to any OBD terminal
• Supported diagnostic protocols:
• ISO 9141-2, K/L lines;
• ISO 14230 (KWP2000), K/L lines;
• SAE-J1850 VPW and PWM;
• ISO 11519-2;
• SAE J1708;
• ISO 15765-4 (OBD);
• CAN ISO 11898;
• CAN (High Speed, Middle Speed, Low Speed, Single-wire systems);
• SCI Haldex;
• RP 1210;
• SAE J2534 (PASS-THRU)

Optional Equipment:

• Cable set for heavy boat and vessel diagnostics
• Thermoking diagnostic cable COJALI JDC113A
• JalTest Soft + INFO Online software for trucks, trailers, buses, and vans
• JalTest Soft + INFO Online 12-month update subscription
• Software packages: diagnostics for trucks, tractors, buses, and commercial vehicles

Who Is This Device For?

• This device is built for workshops servicing boats, jet skis, outboard and inboard engines, as well as stationary marine engines. It is an ideal solution for both independent technicians and service centers looking to expand their service offerings or provide more efficient support for marine equipment.

Expand Your Service Offering with Advanced Diagnostics!

• JalTest PC Link is the solution that allows you to professionally service marine vehicles — and beyond.

Contact us today and receive a personalized offer tailored to your workshop!
