Platform scissor lift for heavy-duty vehicles Stertil-Koni SKYLIFT SKY.350

Platform Scissor Lift for Heavy-Duty Vehicles Stertil-Koni SKYLIFT SKY.350

Country of origin: Netherlands, warranty period – 24 months

Base version: SKY350 ebright, platform length 8 m / 26' (including 2 sets of short drive-on/off ramps)

Available platform lengths:

• SKY350 ebright, platform length 9 m / 30' (including 2 sets of short drive-on/off ramps)
• SKY350 ebright, platform length 10 m / 33' (including 2 sets of short drive-on/off ramps)
• SKY350 ebright, platform length 12 m / 40' (including 2 sets of short drive-on/off ramps)
• SKY350 ebright, platform length 14.5 m / 48' (including 2 sets of short drive-on/off ramps)

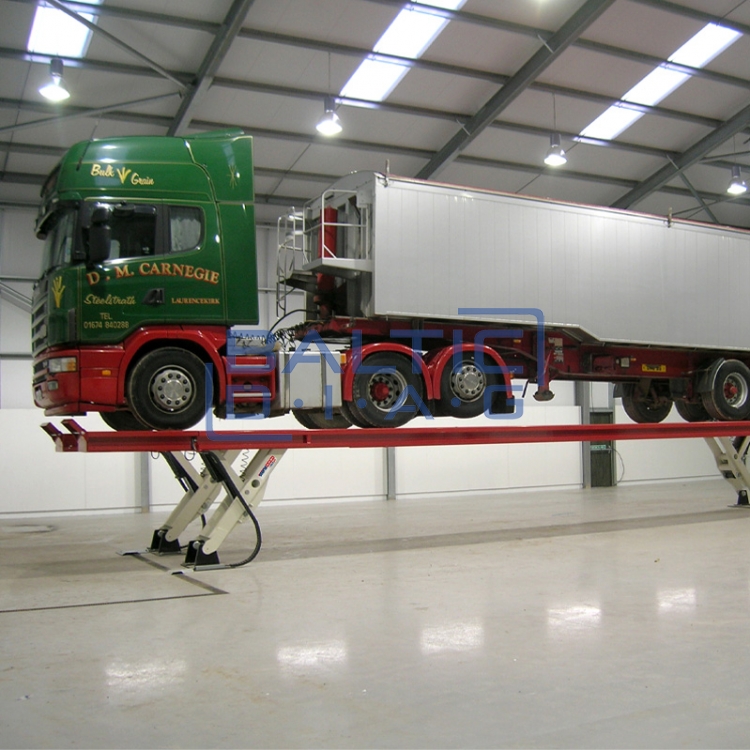

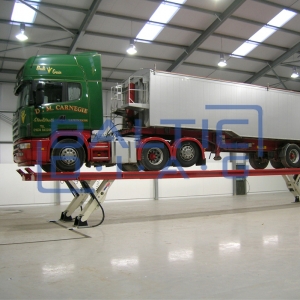

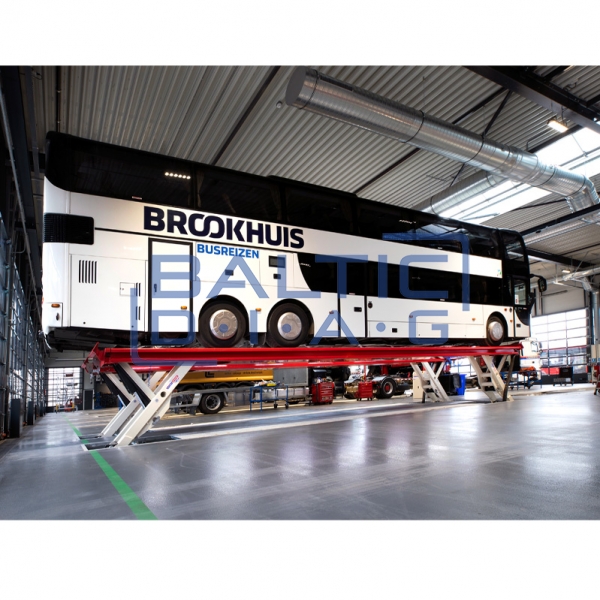

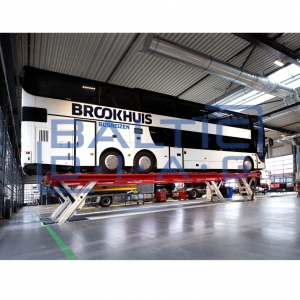

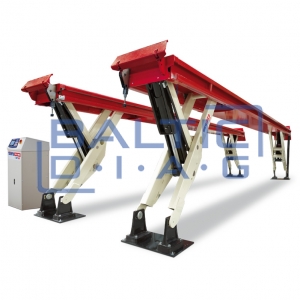

The Stertil-Koni SKYLIFT SKY.350 is a highly powerful and advanced platform scissor lift designed for heavy-duty vehicles such as trucks, buses, and specialized machinery. It boasts a lifting capacity of up to 35,000 kg and a maximum lifting height of 1,750 mm. Thanks to its Y-shaped construction and four independent support legs, the lift ensures optimal workplace safety and maximized space for the technician. The unit can be installed as a surface-mounted, flush-mounted, semi-flush-mounted, or moisture-resistant version, making it suitable for both new workshop installations and renovation projects.

Features:

• Hydraulic lifting system with automatic synchronization, virtually maintenance-free
• Ebright SMART Control system with 7” full-color touchscreen, intuitive operation, and PIN code security

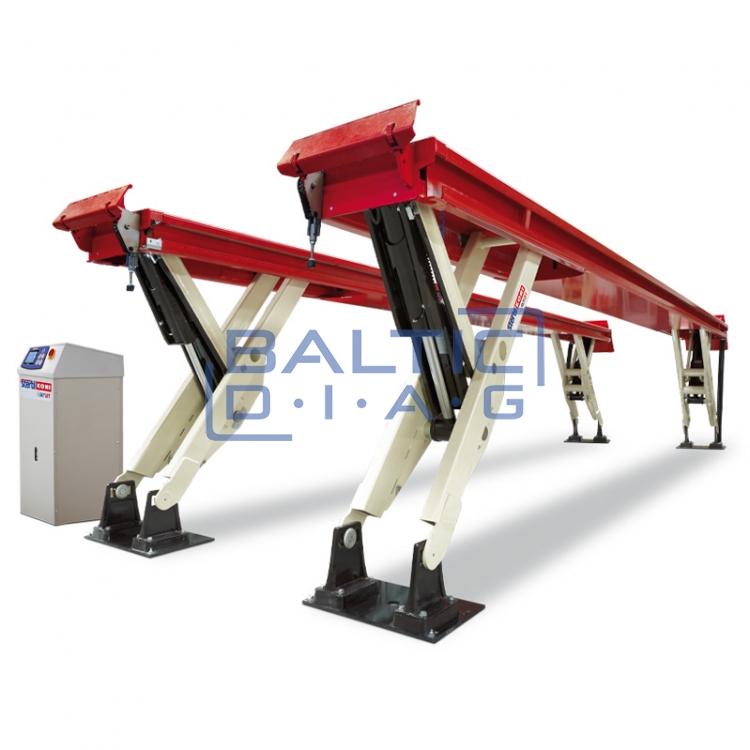

• Y-frame design – robust yet compact structure for efficient use of workspace
• Automatic recess cover plates (flush-mounted version) – safety and easy access
• Modular drive-on ramps – adaptable to different types of vehicles
• Anti-slip surface: 3-component epoxy coating or aluminum plates
• Overload protection, quiet operation, automatic mechanical locking
• Synchronization of two lifts possible – up to 30 m in total length and 70 t total lifting capacity
• Easy installation – only 16 anchor points required in the floor
• Optional accessories: LED lighting, jacking beams, wheel alignment turntables, platform extensions
• Safe working height, adjustable to need, ample workspace beneath the platform
• Independent mechanical locks – on each support leg for maximum safety

Technical Specifications:

• Operating principle: Hydraulic
• Lifting capacity: 35,000 kg
• Lifting height: 1,750 mm
• Lifting time: 90 sec
• Available platform lengths: 8 / 9 / 10 / 12 / 14.5 meters
• Motor power: 9 kW

AVAILABLE PLATFORM LIFT CONFIGURATIONS:

Flush-mounted

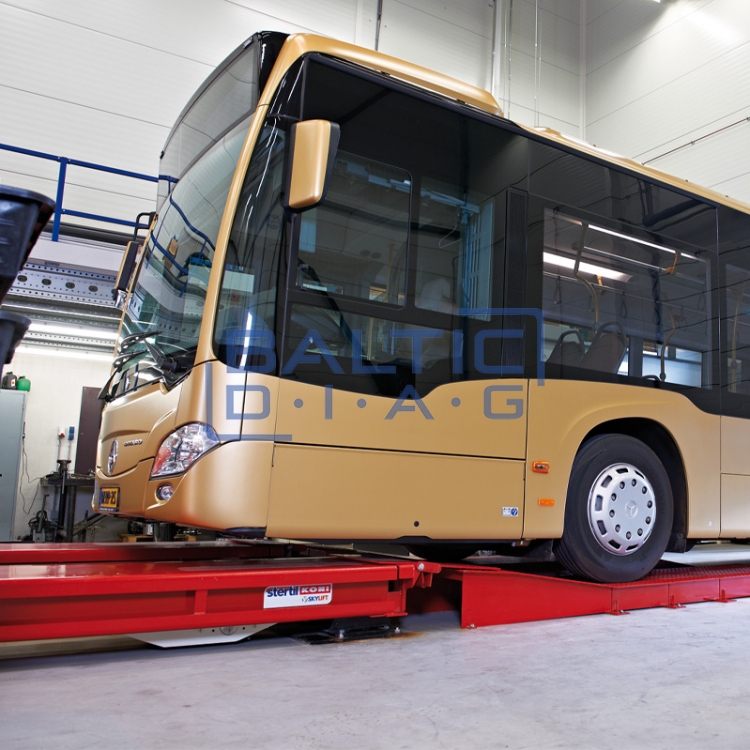

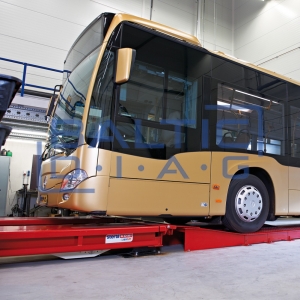

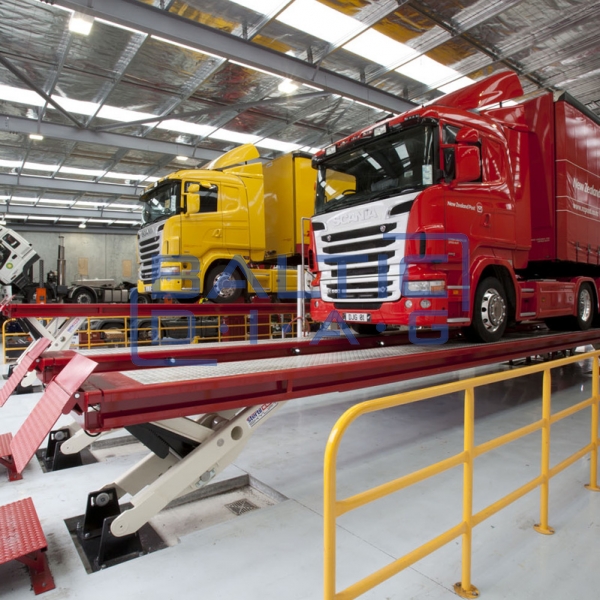

• This configuration provides completely unobstructed access – platforms are flush with the workshop floor, ideal for low-clearance vehicles. Lifting height up to 1,750 mm. Optional automatic cover plates eliminate the need for drive-on ramps, saving space.

Semi-flush-mounted

• This special configuration offers an extremely low drive-on height of just 260 mm, achieved through 90 mm deep recesses in the supports. An excellent solution when easy vehicle access is needed but full flush mounting is not desired.

Surface-mounted

• This version requires no preparatory construction work. It enables fast and convenient installation and offers sufficient working space for mechanics.

Moisture-resistant

• Designed for wet environments or outdoor use. The platforms are hot-dip galvanized and treated with anti-corrosion coating, and the control panel is made from stainless steel. Perfect for wash bays and water-exposed work areas.

Independent Mechanical Locks

• Each support leg is equipped with its own mechanical safety lock. This guarantees the highest level of safety even in the event of hydraulic system malfunction. Technicians can work safely beneath the platform.

Reverse Roll-off Protection

• A special barrier prevents the vehicle from accidentally rolling backward off the platform. This feature is crucial when working with trucks and buses.

Modular Drive-on Ramp

• A segmented ramp system that can be adapted to suit vehicle types and workshop layouts. Ensures smooth and quick vehicle access, especially with surface-mounted configurations.

Ebright Smart Control System

• 7” color touchscreen control panel ensures intuitive and safe lift operation. Can be used while wearing gloves. PIN code protection prevents unauthorized use.
