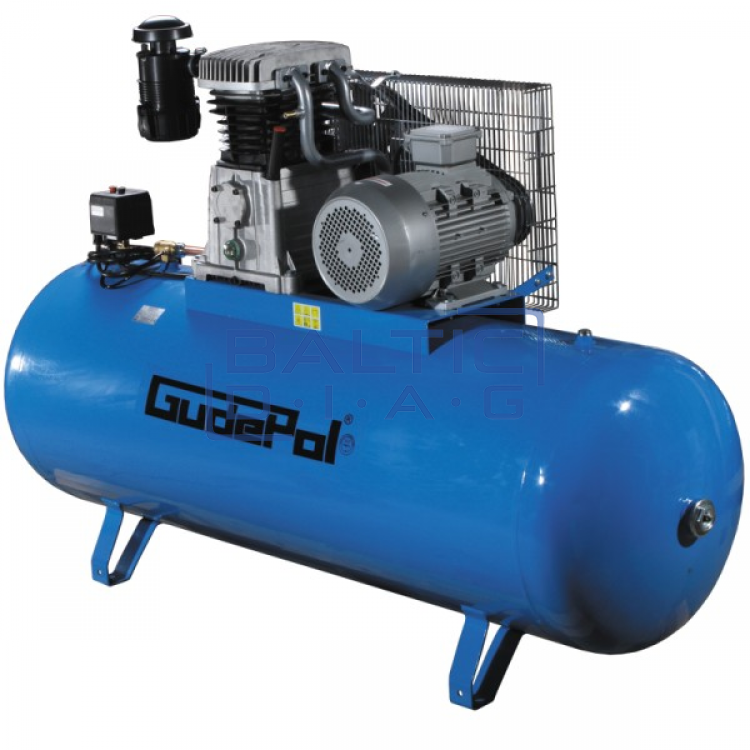

GudePol air compressor 500L 1100L / min 15bar

GudePol air compressor 500L 1100L / min 15bar

Manufacturer GudePol (Poland), warranty 24 months

Description:

Two-stage belt compressor with increased pressure.

Compressor with 25um air intake filter.

The cast iron air tank guarantees longer service life and efficient cooling.

Three-ring sealing in the piston cylinder ensures low lubricity of the compressed air.

Due to the continuous cooling through the suction air flow, the modular valve plate ensures a constant air flow.

Simple control of the oil level through the sight glass.

Two-stage compression process initially up to 4 bar and finally up to maximum pressure in the tank with indirect cooling system.

400 / 50Hz power supply.

A reciprocating compressor in which the motor is connected to the compressor unit via a belt drive.

Two pistons arranged side by side in one cylinder.

Two-stage air compression, with the simultaneous use of stage compression, uses an air cooler, which results in higher efficiency.

Equipped with a pressure gauge to check the tank pressure and pressure reducer, with two quick connections for easy connection of tools.

The operation of the compressor is controlled by a pressure switch that ensures its operation in the machine.

Automatic operation at minimum pressure and shutdown when maximum pressure is reached.

The compressor has a safety valve that protects the motor from overload and makes it easy to restart the compressor.

Compressed air tank protected by a safety valve and with a valve to facilitate the drainage of the tank.

The large bearing diameter used in the crankshaft bearing system guarantees a long service life.

Technical data:

Suction capacity: 1100 l / min

Suction capacity: 66 m3 / h

Bako capacity: 500 l

Maximum pressure: 15 bar

Engine power: 7.5 kW

Number of cylinders: 2 n0

Pressure degrees: 2 n0

Voltage: 400 V

Noise: 82 dB

Speed: 1000 rpm

Dimensions: 203x68x140 cm

Weight: 345 kg
