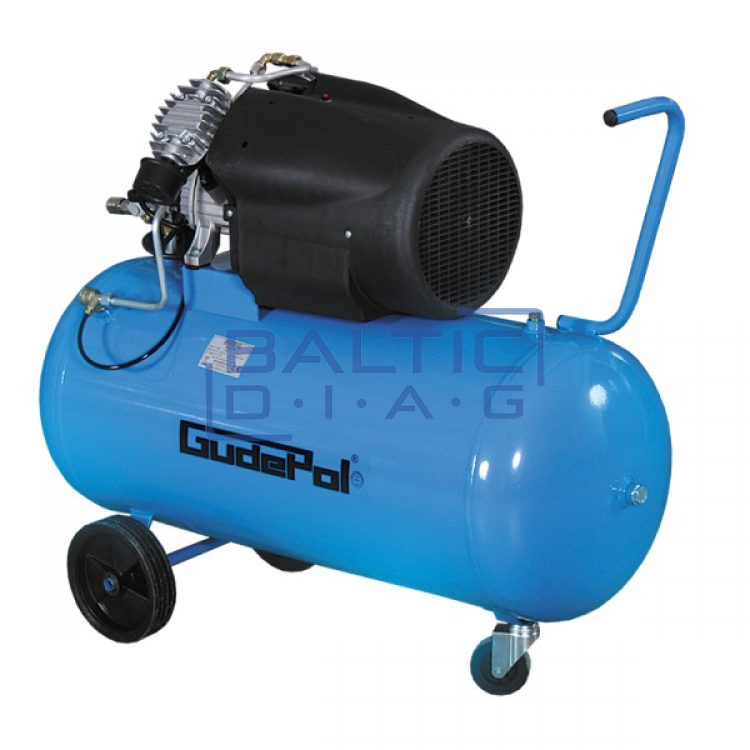

GudePol air compressor 100l 380l / min 8bar

GudePol air compressor 100l 380l / min 8bar

Manufacturer GudePol (Poland), warranty 2 years

Description:

Oil compressor.

A reciprocating compressor in which the engine is permanently connected to a compressor unit, which makes their design compact.

Compressor with electrical connection cable and plug supplied from 230 V / 50 Hz.

The cast iron cylinder guarantees a long service life and efficient cooling.

Three-ring sealing in the piston cylinder ensures low lubricity of the compressed air.

Due to the continuous cooling through the suction air flow, the modular valve plate ensures a constant air flow.

The compressor has a pressure gauge to check the tank pressure and a pressure reducer with a quick connection for easy connection of the tool.

The operation of the compressor is controlled by a pressure switch that ensures its operation in the machine.

Automatic start at minimum pressure and shut-off when maximum pressure is reached (6-8 bar).

In addition, the compressor has a safety valve that protects the motor from overload and makes it easier to restart the compressor.

Compressed air tank protected by a safety valve.

Technical parameters:

Suction capacity: 380 l / min

Suction capacity: 22.8 m3 / h

Bako capacity: 100l

Maximum pressure: 8 bar

Engine power: 2.2 kW

Number of cylinders: 2 n0

Compression ratio: 1 n0

Voltage: 230 V

Noise: 77 dB

Engine power: 3 hp

Rpm: 2850 rpm

Dimensions: 107x39x80 cm

Weight: 50 kg
