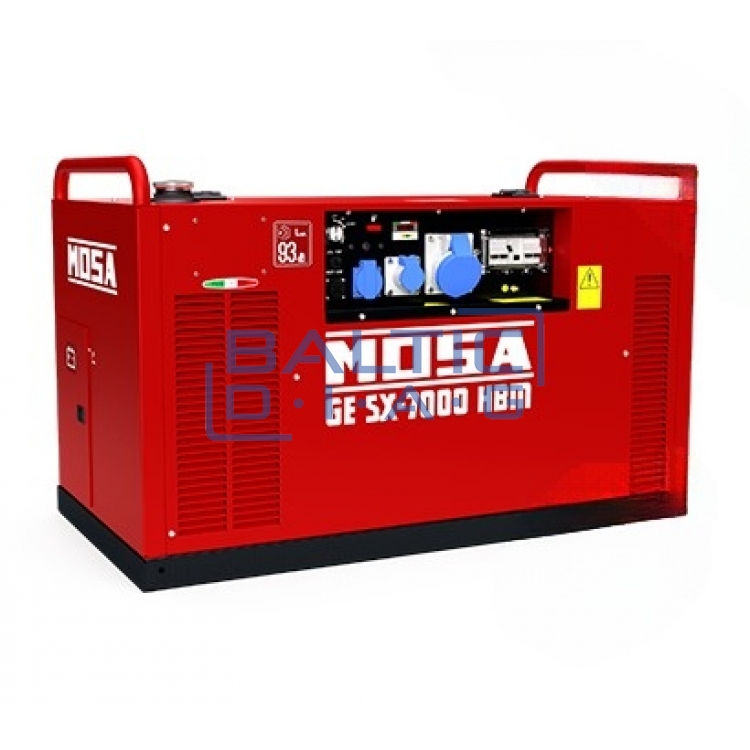

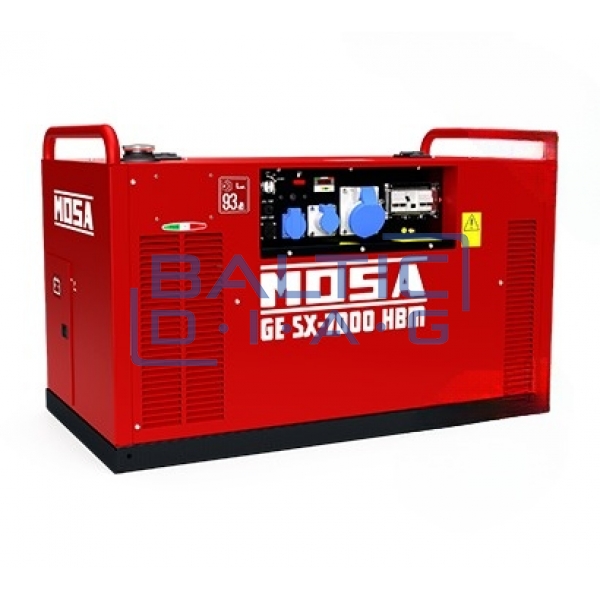

Generator GE SX-7000 HBM, 6 kVA

Generator GE SX-7000 HBM, 6 kVA

Advantages:

• HONDA iGX engine with electronic cruise control
• Electric and manual start
• AVR Automatic Voltage Regulation
• Engine stopped due to low oil level (oil warning)
• Automatic starter (automatic throttle)
• Circuit breaker
• ELCB-GFI (earth fault circuit breaker)
• Muted
• Ready for connection to the automatic transfer device EAS
• Complies with EC directives on noise and safety

Panel:

• Engine start and stop key
• Low fuel warning light
• Local remote start switch
• EAS connector
• Multifunction digital device: voltmeter - frequency meter - full hour
• counter - partial hour counter (can be reset)
• Switch to magnetic
• Differential switch

Output sockets:

• 1x 230V 32A 2P + T CEE IP44
• 1x 230V 16A 2P + T CEE IP44
• 1x 230V 16A 2P + T Schuko
• 2 thermal magnetic switches for 230V / 16A sockets
• Ground terminal (PE)
• Traction on start-up (if battery is missing or discharged)
• Fuel tap

Power ratings:

• Standby single-phase power supply (LTP) 6.7 kVA (6 kW) / 230V / 29.1A
• PRP single-phase power 6 kVA (5.4 kW) / 230V / 26 A
• Frequency 50 Hz

Technical parameters:

• Standby power - 8.2 kWm (11.1 hp)
• PRP net power - 6.4 kWm (8.7 hp)
• Cylinders / displacement 1/389 cm³ (0.39 lt.)
• Hole / Impact - 88/64 (mm)
• The compression ratio is 8.2: 1
• Cruise control type - electronic
• Fuel tank capacity - 18 lt.
• Operating time (from 75% to PRP) - 7.5 hours
• Starter battery - 12 Vdc -18Ah
• IP protection level - IP 23

Fuel consumption:

• 110% (standby power) - 3.5 lt./h
• 100% up to PRP - 3.2 LTL / h
• 75% up to PRP - 2.4 LTL / h
• 50% up to PRP - 1.6 lt./h
