Diesel injector test bench Codeman Quattro

Diesel injector test bench Codeman Quattro

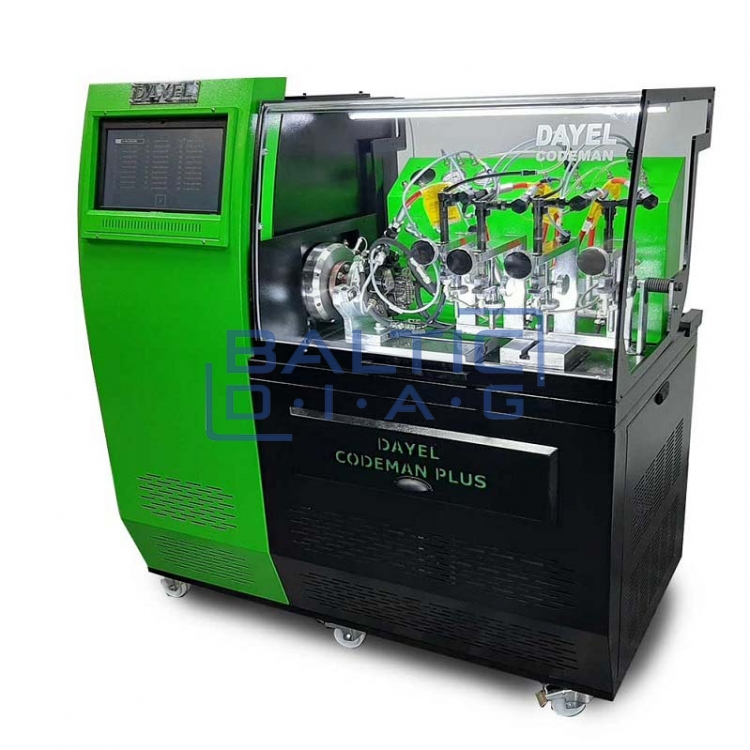

This Codeman Quattro is a professional common-rail injector test and coding bench designed to accurately and efficiently diagnose and code diesel injectors. The device helps to quickly and reliably determine the condition of the nozzles, adjust and code their parameters. And this allows you to ensure the perfect operation of the nozzles. The Codeman Quattro test and coding stand is a must-have tool for every auto repair shop working with diesel car injectors. Because it allows you to quickly and accurately determine or bring expected problems and failures.

Features:

• Codeman Quattro significantly reduces setup and testing time, and has a user-friendly and user-friendly control menu
• Sensitive flow sensors - capable of testing 4 nozzles in approximately 8 minutes using manual test mode

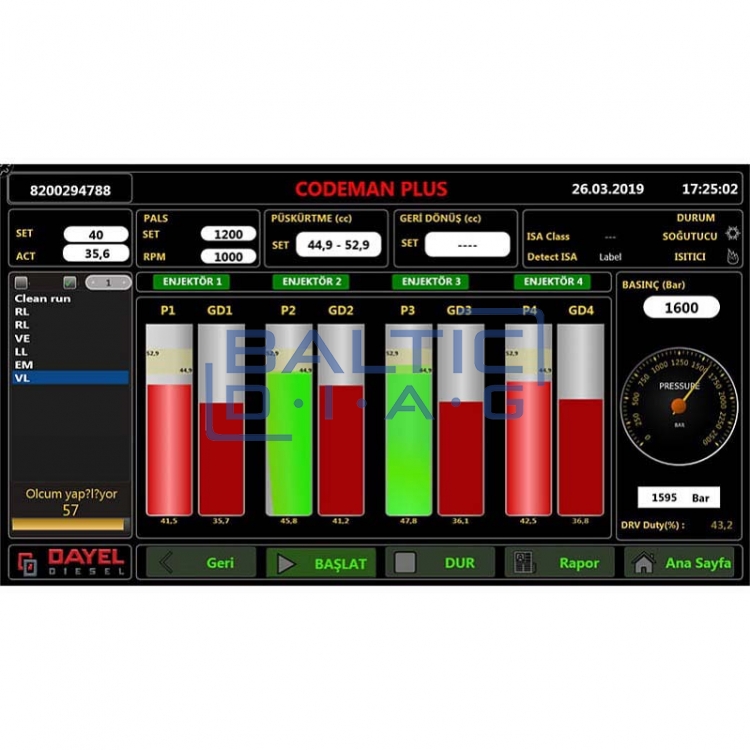

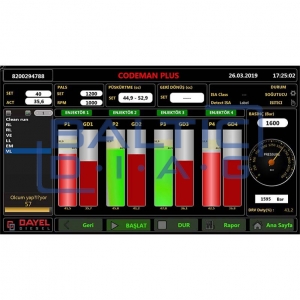

• The equipment uses a touch, 15.6" control screen
• Fully automatic and semi-automatic inspection modes provide accurate and fast inspection results
• Ergonomic design and pneumatic protective cover

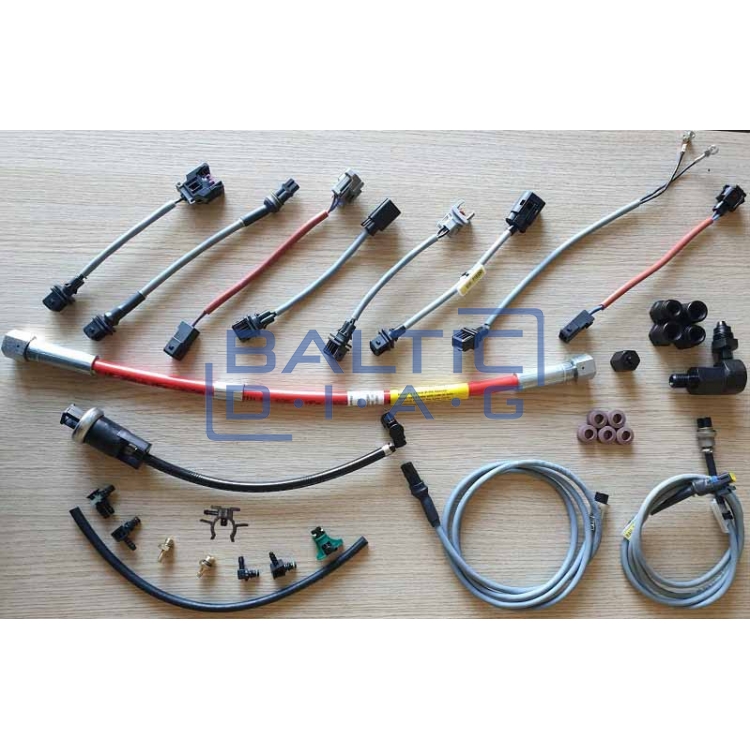

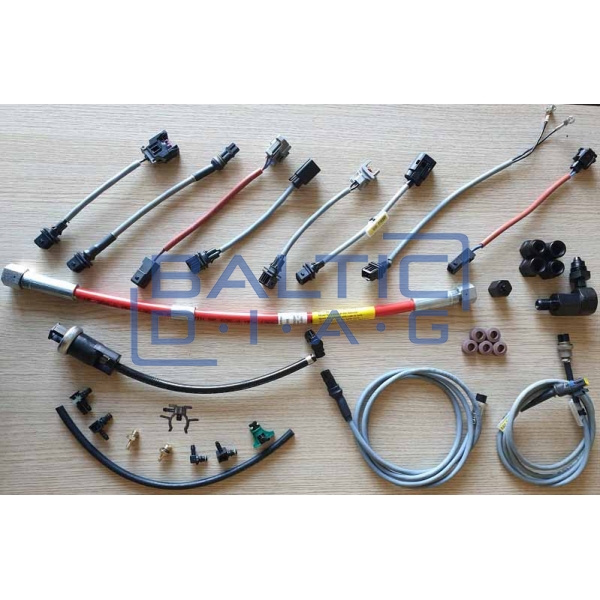

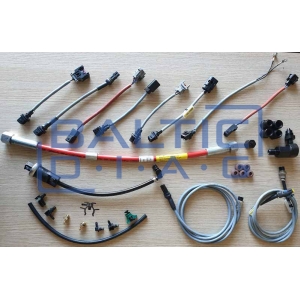

• Easy mounting with 90˚ fittings and 2500 bar Flexi hoses
• Extensive database where you can find 7 groups and more than 3000 test modes
• Ability to connect remotely

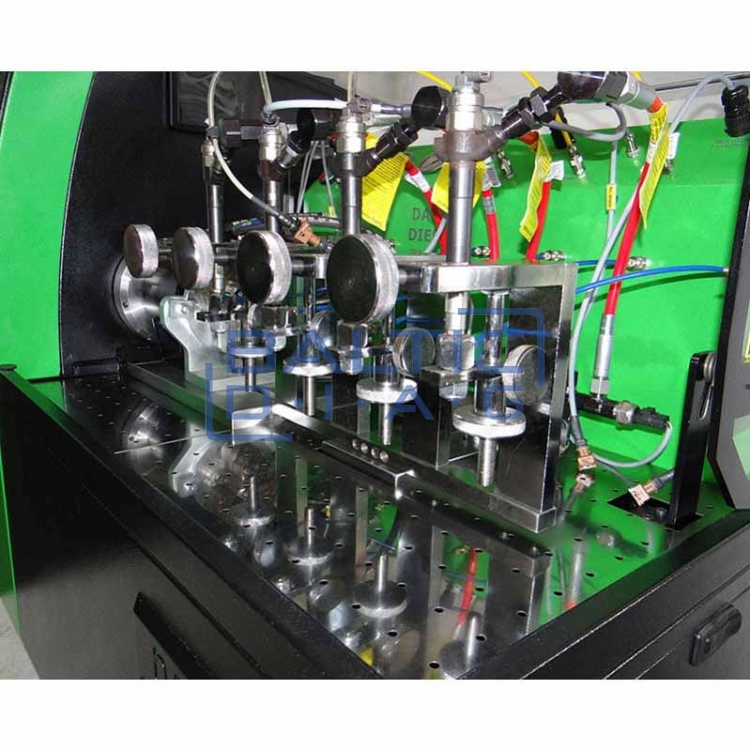

• Four nozzles can be checked and coded at one time

Tested Common-rail injector models:

• Bosch
• Delphi
• Dance
• Siemens VDO
• CAT
• Scania

Encoded nozzle models:

• Bosch Solenoid IMA
• Bosch Piezo ISA
• Delphi C2i/C3i/C4i
• Denso QR Coding
• Siemens IIC Coding
• Siemens 6&7 Digit code

Technical parameters:

• Supply voltage: 400 V / 50 Hz / 3 fz
• Engine power: 7.5 kW / 11 Ag
• High pressure pump pressure: 0 – 2200 Bar (Opt. 2500 bar)
• Flow sensor filter: 20 µM
• Nozzle flow sensor range: 0.1 - 500 cc/min
• Oil capacity: 20 l
• Oil type: ISO 4113
• Dimensions: 1350 x 1600 x 750 mm
• Weight: 440 kg
• Power output: 6 kW
