Plasma cutter Hugong 70A PFC

Plasma Cutter Hugong 70A PFC

Country of origin: Netherlands, warranty period – 24 months

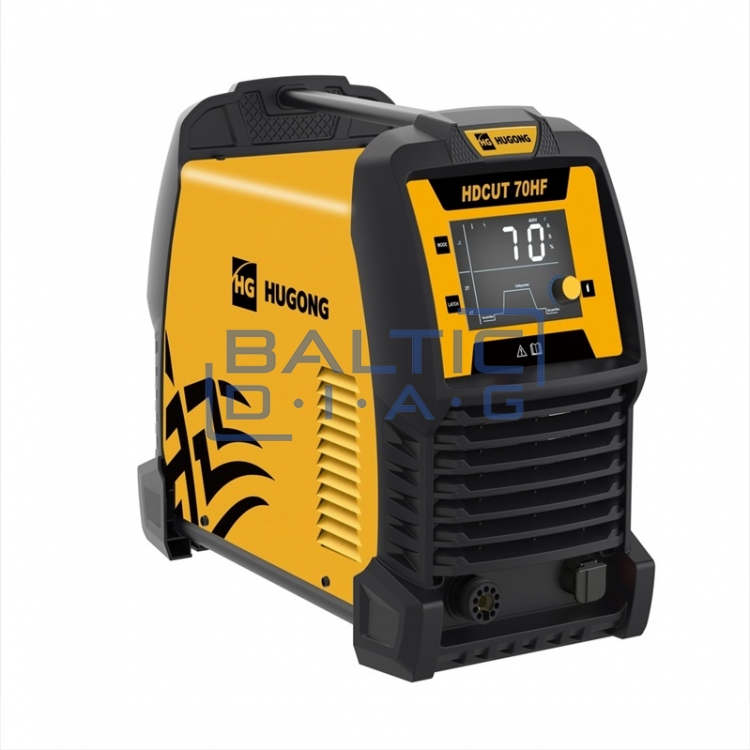

The Hugong Plasma Cutter 70A PFC is a high-performance 400V class cutting device designed for professional use in metalworking and industrial environments. It features IGBT inverter technology, a digital HDVision control panel, Pilot ARC ignition, and advanced PFC functionality that ensures smooth electrical flow and reduced power grid load. Thanks to HF ignition, the device cuts through rusted, painted, or coated materials up to 25 mm thick effortlessly – without direct contact with the workpiece.

With its robust construction, adjustable cutting current, and smart air management, this model is perfectly suited for intensive cutting tasks.

It is suitable for cutting low-alloy steel, stainless steel, and aluminum alloys.

Features:

• PFC module (Power Factor Correction): reduces power grid load and ensures stable operation even under fluctuating voltage conditions
• HDVision control panel: digital LED display with clear and intuitive controls for simple and precise adjustments
• Pilot ARC with HF ignition: allows contactless cutting – effectively through rust, paint, or coatings
• Shock-resistant ABS housing: resistant to dirt and impacts – suitable for demanding work environments

Technical Specifications:

• Frequency: 50/60 Hz
• Voltage: 400 V, 3 phase
• Input power: 9.2 kVA
• Start-up voltage: 305 V
• Nominal current: 10.5 A
• Cutting current range: 25 – 70 A
• Duty cycle (at 20°C): 100% at 70 A
• Duty cycle (at 40°C): 60% at 70 A
• Recommended cutting thickness: 17 mm
• Maximum cutting thickness: 25 mm

Supplied with:

• P80 plasma cutting torch – 5 m
• Ground clamp with 3 m cable (16 mm², 200 A)
• 10–25 quick couplings
• Gas hose Ø 8 mm – 3 m
• Hose clamps 10–16 mm (4 pcs)
• Air quick couplings – 2 pcs
• Pressure reducing valve – 1 pc

Product Dimensions:

• Length: 550 mm
• Width: 250 mm
• Height: 420 mm
• Weight: 20.0 kg

Packaging Dimensions:

• Length: 700 mm
• Width: 340 mm
• Height: 465 mm
• Weight: 28.50 kg
