FULL generator FR 35 28 kW diesel generator
FULL generator FR 35 28 kW diesel generator
FULL generator FR 35 28 kW diesel generator
FULL generator FR 35 28 kW diesel generator
FULL generator FR 35 28 kW diesel generator

FULL generator FR 35 28 kW diesel generator

  • SKU: BD10076
6,050.00 €

Prices shown include tax

Send Message

Description

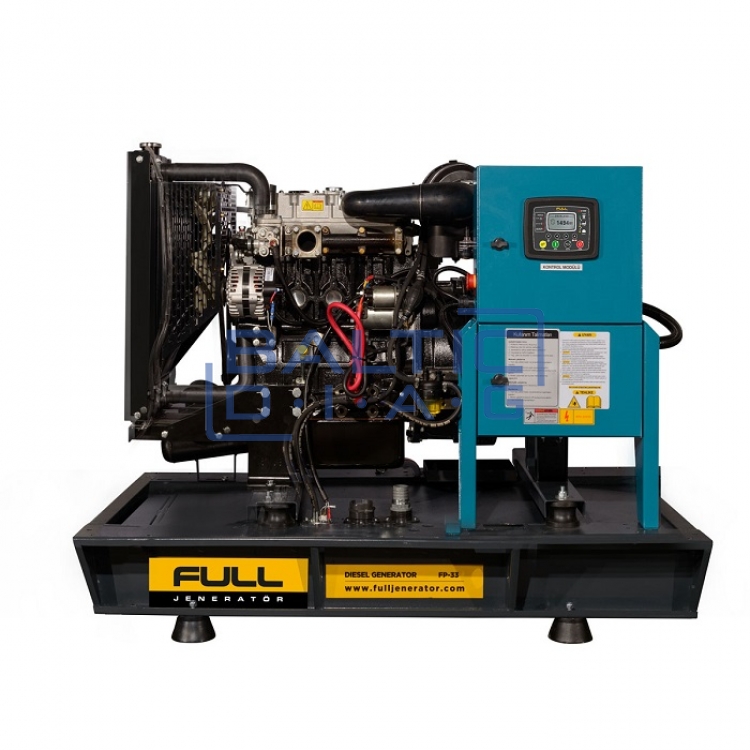

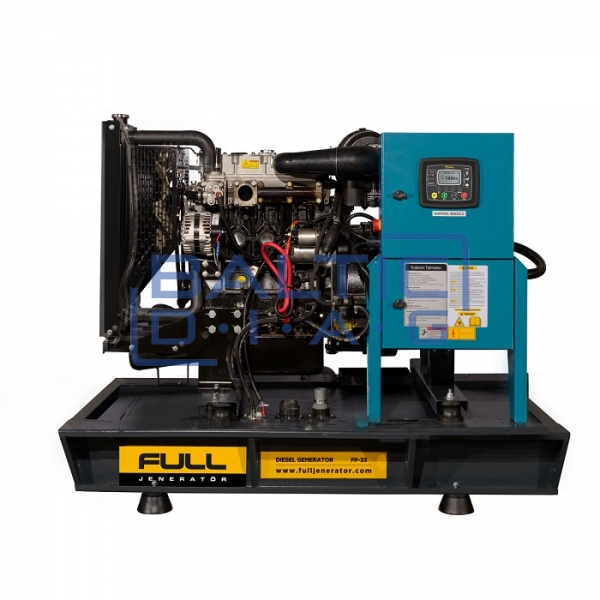

FULL generator FR 35 28 kW diesel generator

Manufacturer: Full generator, Turkey. Warranty: 12 months. or 500 working hours.

FULL Generator is a generator manufacturing company whose purpose was to change the established stereotypes about generators that they are a luxury commodity. Efforts have been made to prove that it is an indispensable and efficient device in many sectors. Due to the company's extensive work experience and strong market position, these generators are sold in more than 50 countries around the world. In addition to standard petrol generators from 3 kVA to 14 kVA and industrial diesel generators from 17 kVA to 2500 kVA. FULL generator manufacturers offer special solutions for each customer's need and can provide all kinds of additional systems such as, synchronization, remote monitoring capability. To ensure quality and customer satisfaction, the manufacturer pays special attention to working with well-known engine companies such as PERKINS, CUMMINS, SD, YANGDONG, RICARDO and generator suppliers LEROY SOMER and STAMFORD. Every generator produced is thoroughly inspected to all applicable national standards.

Advantages:
  • Powerful and efficient RICARDO engine.
  • 12 V starter and its battery.
  • Replaceable, air, fuel and oil filters.
  • Manual operation.
  • Tropical type cooling radiator.
  • Flexible fuel hoses.
  • Oil drain valve and extension hose.
  • Industrial silencer and steel expansion joints.
  • Maintenance-free starter battery.
  • Coolant heater.
  • Sound-insulating construction and base:
  • High quality sound insulating construction.
  • Convenient design for generator transportation and lifting.
  • Modular design connected with easily accessible bolts and nuts.
  • Lockable doors.
  • Transparent box for control panel monitoring.
  • Emergency shutdown button.
  • Fuel tank fitted together.
  • Anti-vibration couplings - motor / frame, frame / ground.
Technical specifications:
  • Electricity production (instantaneous): 35 kVA / 28 kW.
  • Electricity production (continuous): 31.8 kVA / 25.4 kW.
  • Generated current: 45.79 A.
  • Alternator engine: RICARDO.
  • Engine model: K4100-D.
  • Number of cylinders: 4 cylinders.
  • Fuel Injection System: Direct
  • Degree of compression of the cylinder: 19/1.
  • Piston diameter: 100 mm.
  • Piston stroke: 115 mm.
  • Engine displacement: 3610 cm3.
  • Engine air intake: atmospheric.
  • Engine speed: 1500 rpm.
  • Engine oil content: 13 liters.
  • Engine power output (instantaneous): 33 kW / 44.2 Ag.
  • Engine power output (continuous): 30.1 kW / 40.3 Ag.
  • Fuel type: Diesel.
  • Control: Mechanical.
  • Generator cooling: liquid.
  • Coolant capacity: 15 liters.
  • Fuel consumption (full load): 9 l / h.
  • Fuel consumption (75% of load): 6.5 l / h.
  • Fuel consumption (50% of load): 4.7 l / h.
Generator:
  • Generated frequency: 50 Hz.
  • Power: 35 kVA.
  • Generated voltage: 230/400 V.
  • Number of phases: 3 phases.
  • Automatic voltage regulator (A.V.R.): AS440.
  • Voltage regulation: + - 1%.
  • Insulation class: H.
  • Protection class: IP22 - IP23.
  • Power ratio: 0.8.
Dimensions:
  • Closed generator:
  • Weight: 860 kg.
  • Length: 2200 mm.
  • Width: 900 mm.
  • Height: 1350 mm.
  • Tank capacity: 135 liters.
Additional accessories available:
  • Extremely quiet construction.
  • Mobile generators.
  • Thermomagnetic CB for automatic models.
  • Automatic refueling system.
  • Sync panel.
  • 3-pole and 4-pole ATS, automatic transmission connection.
  • Fuel, oil heater.
  • External fuel tank and automatic refueling system.
  • Moisture filter for fuel.
  • Remote monitoring and control system.
Available versions:
  • Full / open - 5000,00 EUR + VAT

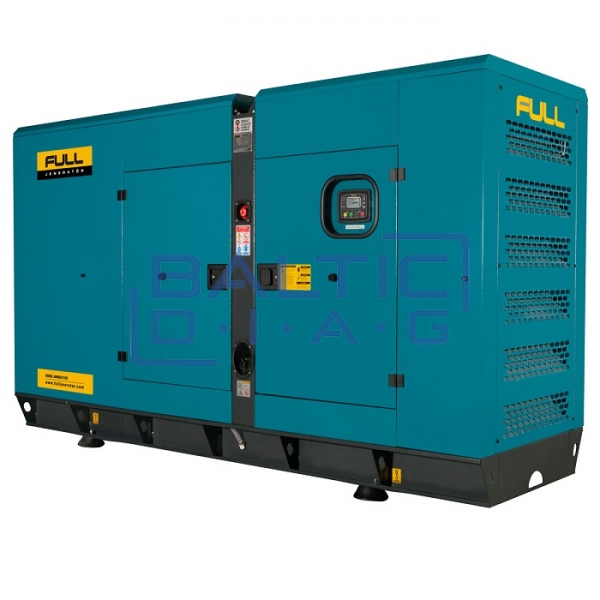

  • Full / closed - 6200,00 EUR + VAT
