Fixed welding fume extraction elbow with filtration system Worky SPARK-415


Manufacturer: Worky, Italy; Warranty: 24 months


Description:

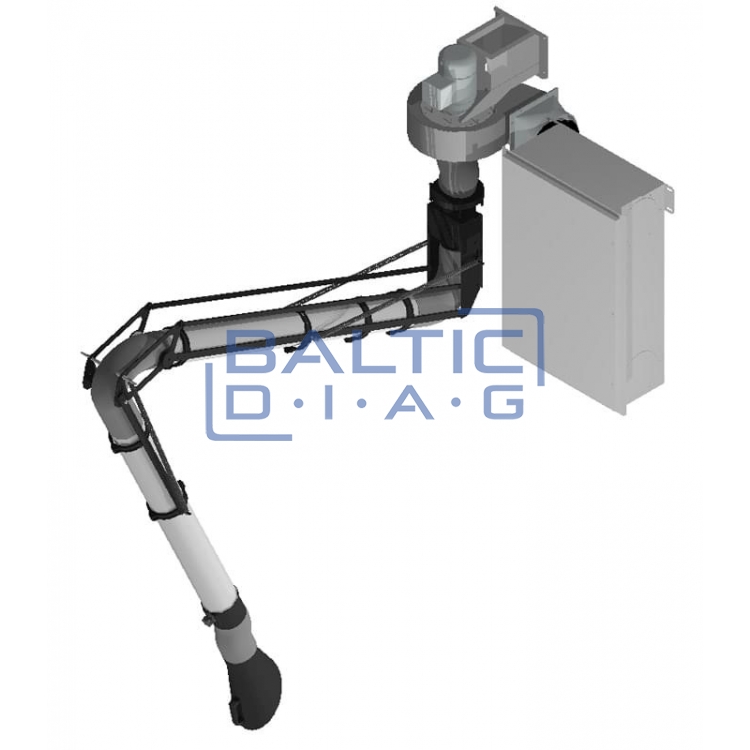

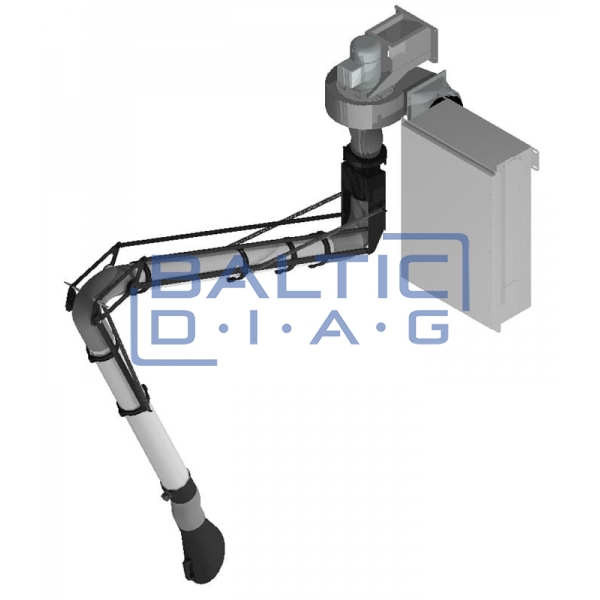

The complete SPARK kit is designed to extract and filter welding fumes and consists of: an extraction elbow, a wall-mounted fan, a filter to clean the fumes and deodorize them using activated carbon, and to release the filtered air back into the environment.

The SPARK model has a spark filter, a synthetic pre-filter, a main filter element and 4.5 kg of activated carbon, which removes all unpleasant welding odors from the air.


Technical parameters:

- Fan power: 1.1 kW

- Pull-out elbow length: 4 m

- Extraction capacity: 1400 m3 / h

- Activated carbon content: 4.5 kg

- Exhaust pipe diameter: 150 mm

- Elbow tip diameter: 160 mm
