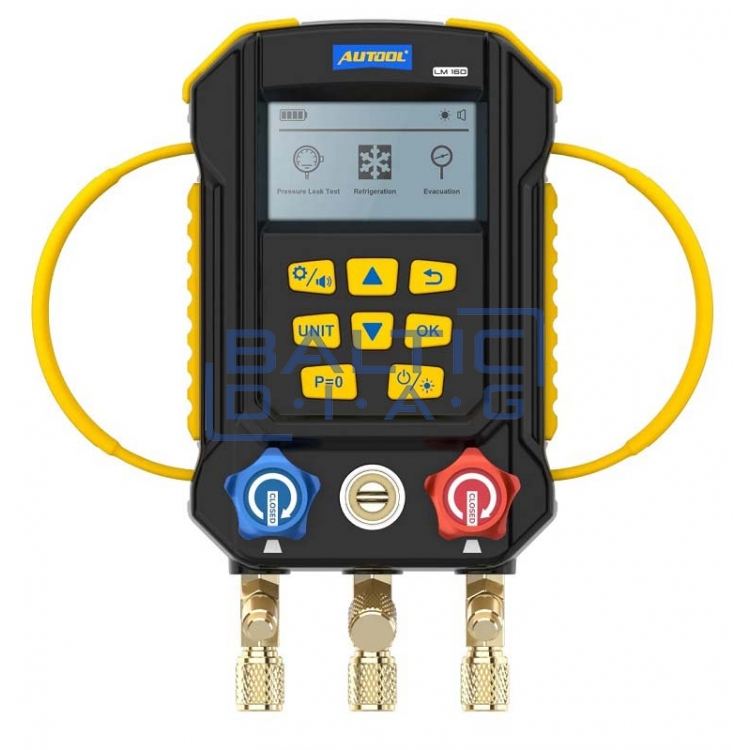

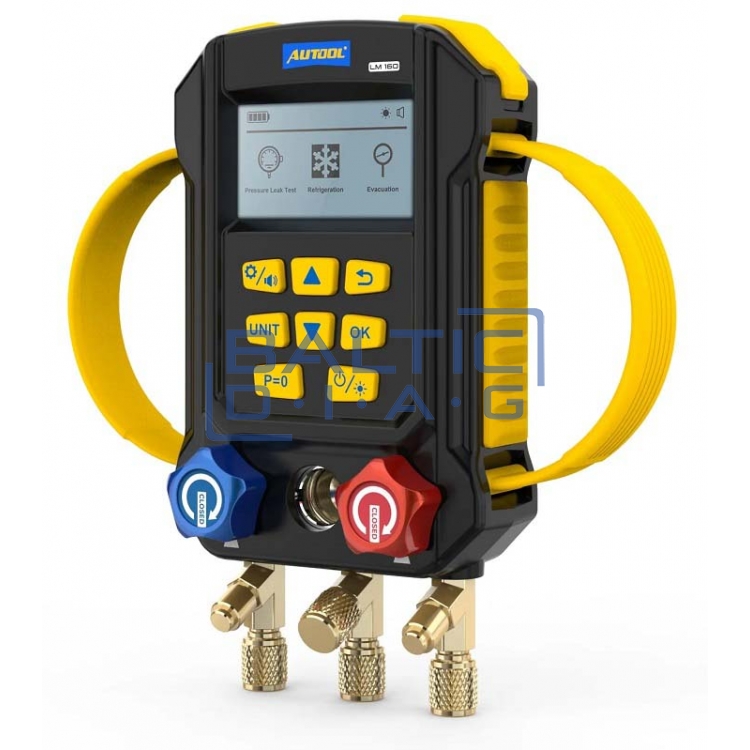

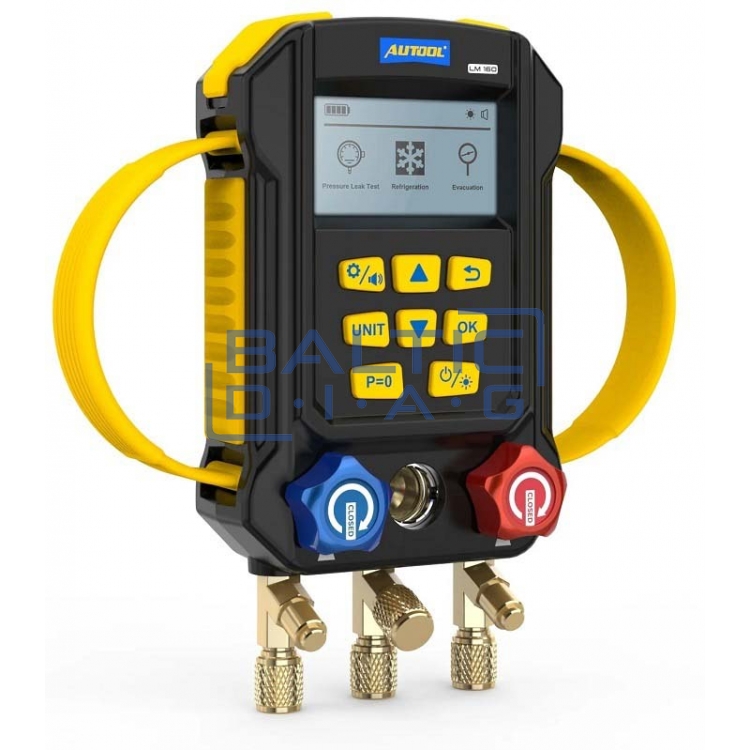

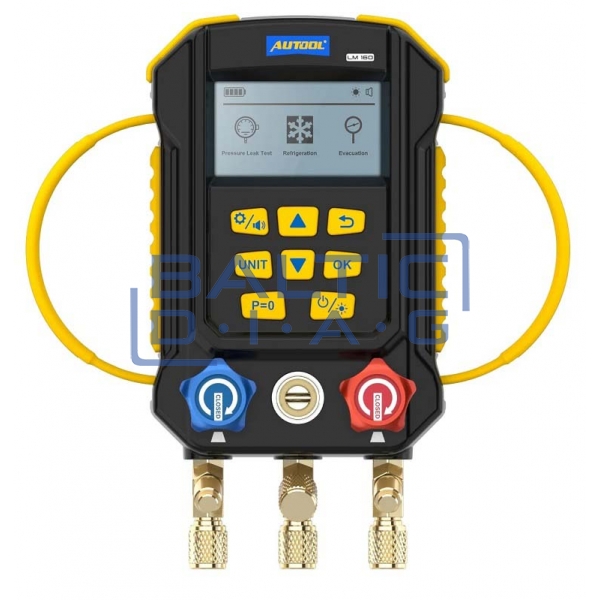

Digital refrigerant service unit Autool LM160

Digital refrigerant service unit Autool LM160

Autool LM160 is a very useful device that is intended for installation, testing and maintenance of refrigeration equipment. It can perform system pressure, temperature, vacuum and pressure leakage testing and measurements. Also, the LM160 has a built-in database of 95 refrigerant types based on NIST data.

Features:

• Automatic calculation of cooling and overheating - the device has a built-in 32-bit microprocessor, which digitally analyzes the collected information with high accuracy. Data processed in this way are presented to the user in a particularly accurate and complete manner. The service device can also calculate the degrees of supercooling and superheating, so it is convenient to determine the real data during the operation. In addition, the refrigerant service unit can check the percentage of vacuum tightness, pressure leakage and leakage intensity.
• Inspection screen, refrigerant filling and vacuuming - thanks to a special transparent glass screen, it is possible to directly monitor the refrigerant filling process, which is much more convenient to manage with a direct, analog display. Thanks to its semi-automated system, the LM160 can realize the operation of a vacuum pump. Connect the air conditioning system and the vacuum pump. Note: When connected to the system, the device may display high pressure values. Therefore, we recommend you restore them by pressing the restore values button.
• Pressure Leak Check - The LM160 calculates the pressure differences between the initial measured pressure and the pressure recorded during the second test to determine if there is a pressure drop in the refrigeration system.

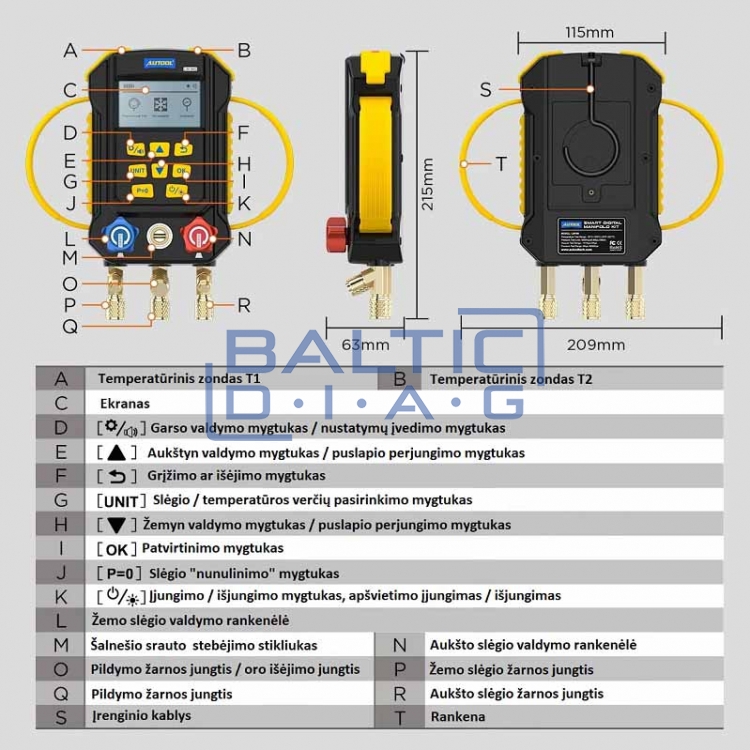

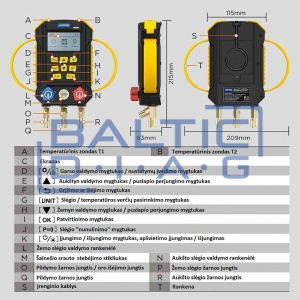

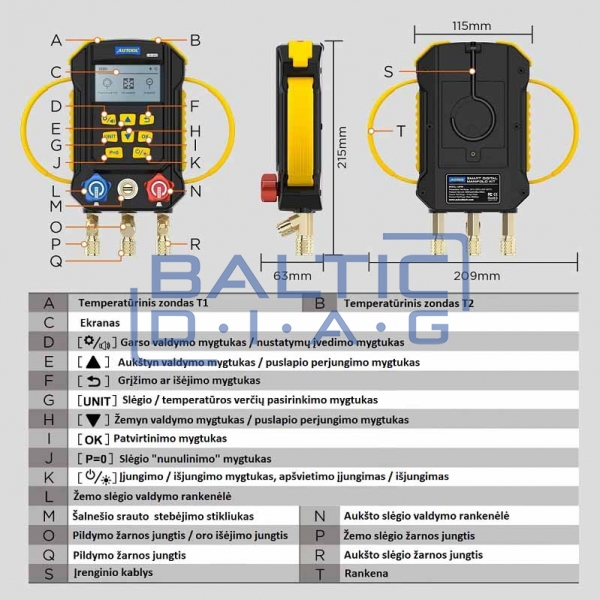

• Spray valve, LCD screen and hook - thanks to durable manufacturing materials and non-slip design, the device is sturdy and easy to hold. Large design, LCD screen, so the data displayed on it is clear and easy to read. And thanks to the built-in screen illumination, they are easy to read even in poor visibility. Complete with a new design ball valve that has a longer service life.
• Warranty - Provided for 24 months. warranty.

Technical parameters:

• Pressure measurement values: psi; kPa; MPa; bars; kg/cm2
• Temperature measurement values: °C; °F
• Vacuum measurement values: Micron; hPa; mbar; mTorr; Torr
• Pressure range: 0 - 870 psi; 0 - 60 kg/cm2; 0 - 60 bar
• Temperature range: - 67 ~ 257 °F; -55 ~ 125 °C
• Vacuum range: -14.7 ~ 0 psi; -1 ~ 0 bar
• Overload: 942.5 psi; 65 bar; 65 kg/cm2
• Resolution of pressure values: 0.1 psi; 0.01 bar; 1 kPa; 0.005 MPa; 0.01 kg/cm2
• Resolution of temperature values: 0.1 °F; 0.1°
• Resolution of vacuum values: 1 micron; 1 hPa; 1 mbar; 1 Torr; 1 mTorr
• Pressure values accuracy : ±0.9 °F (±1); ±0.5K (±1); ±0.5 °C (±1)
• Temperature values accuracy : ±0.5%
• Vacuum values accuracy : ±0.5%
• Screen: 2.8" inch, LCD

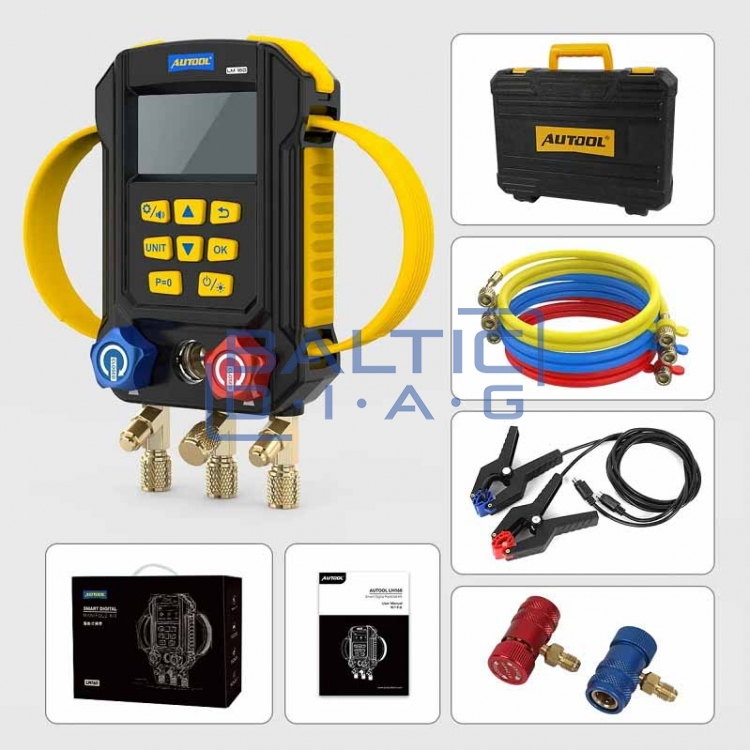

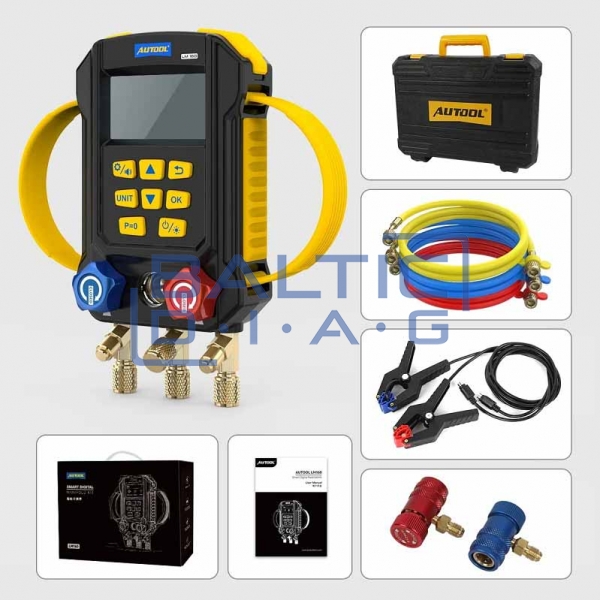

Complete set:

• Autool LM160 device
• Suitcase
• Hoses in three colors
• Power terminals
• Air conditioning systems quick connection LP / HP
• User manual
