Carbon Monoxide (CO) Incident Investigation Analyser KANE-IIA

Country of origin: United Kingdom, warranty period - 24 months

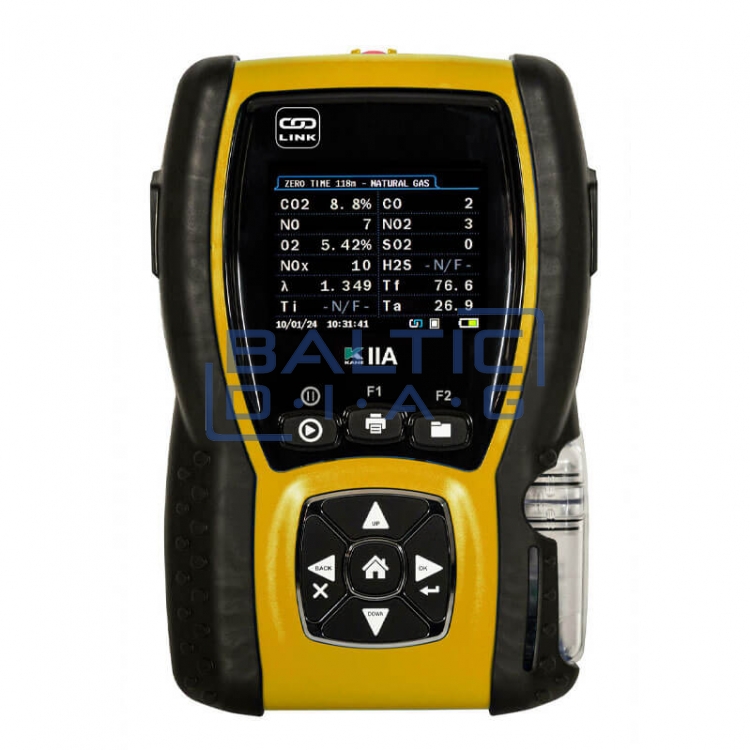

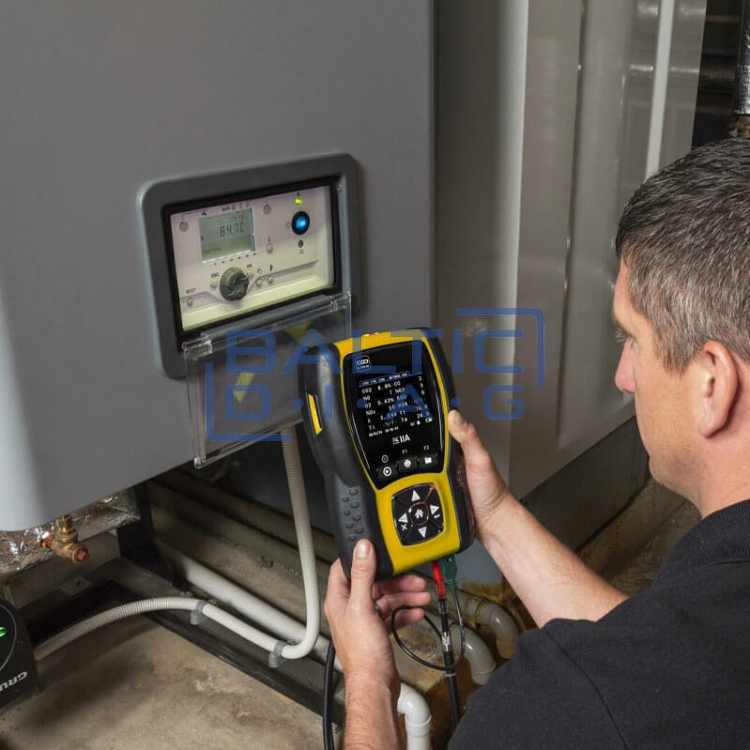

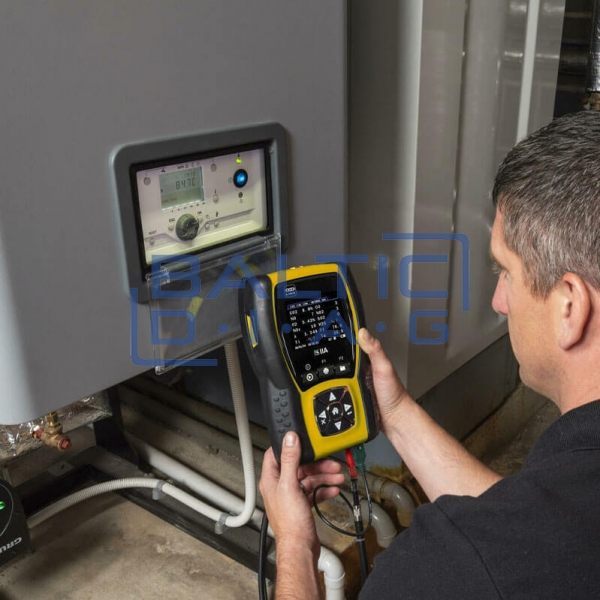

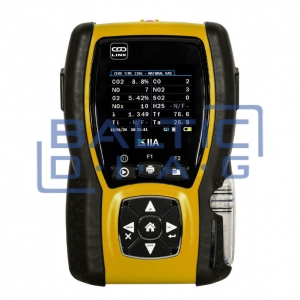

The KANE-IIA is an advanced CO incident investigation analyser designed to conduct various tests related to carbon monoxide leakage and its environmental impact using a single device. The analyser allows for tightness, let-by, and gas pressure tests up to 2 psi (160 mbar), measures appliance CO emissions up to 100,000 ppm (10%), and analyses oxygen (O₂) and carbon dioxide (CO₂) emissions in flue gases regardless of the fuel type. The built-in KANE LINK wireless technology enables real-time connection of additional sensors.

Functions:
  • Conduct incident investigations using a single analyser
  • Tightness, let-by, and gas pressure measurement up to 2 psi (160 mbar)
  • CO emission measurement up to 100,000 ppm (10%)
  • O₂ and CO₂ measurement in flue gases independent of fuel type
  • Ability to link multiple KANE-COL CO monitors for ambient air tests
  • Wireless KANE-DTHA2 sensor for real-time indoor air quality monitoring
  • Set timers, view, and save results
  • BS7967 2-minute appliance sweep test
  • Send results to the KANE LIVE app or print them using an optional printer
  • Standard UKAS calibration certificate
Technical Specifications:
  • Measurements:
  • Differential pressure: up to 2 psi (-160 to +160 mbar)
  • CO measurement: up to 10,000 ppm with overload protection
  • CO₂ and O₂ measurement: up to 20.9%
  • Differential temperature: -20 to +1350°C
  • Combined appliance and room CO tests with up to 4 KANE-COL CO monitors
  • Indoor air movement measurement with the KANE-DTHA2 wireless anemometer

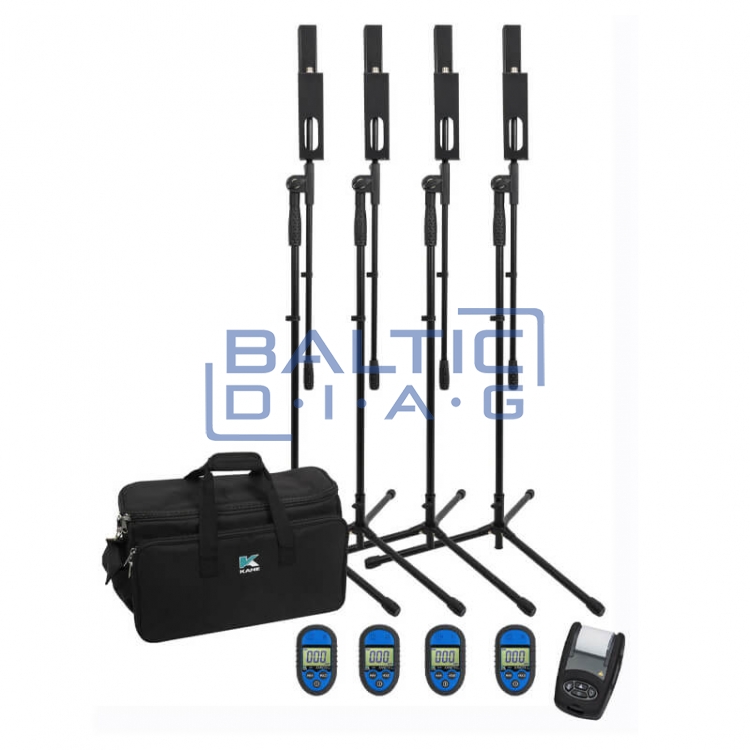

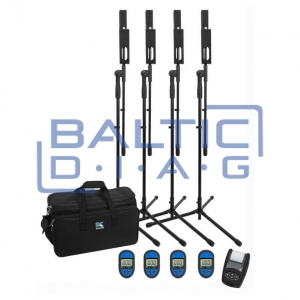

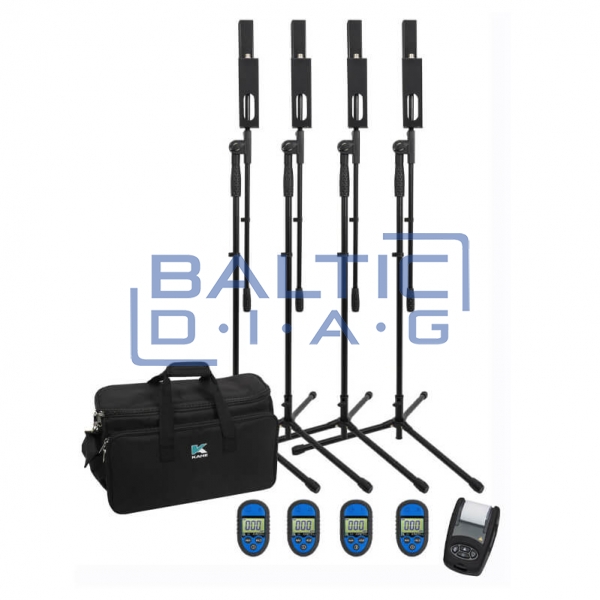

Box Contents:
  • KANE-IIA KIT
  • 4 x KANE-COL CO monitors with UKAS certificates
  • 4 x CPS1 probe stands
