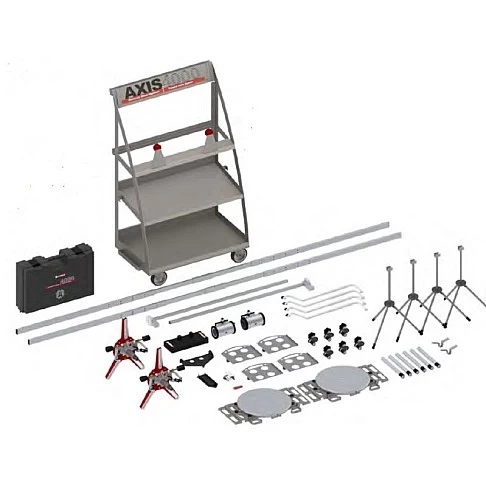

Camera-based computerized wheel/axle alignment system for heavy-duty vehicles Haweka AXIS4000 PRO

Camera-based Computerized Wheel/Axle Alignment System for Heavy-Duty Vehicles Haweka AXIS4000 PRO

Country of origin: Germany, warranty period – 24 months

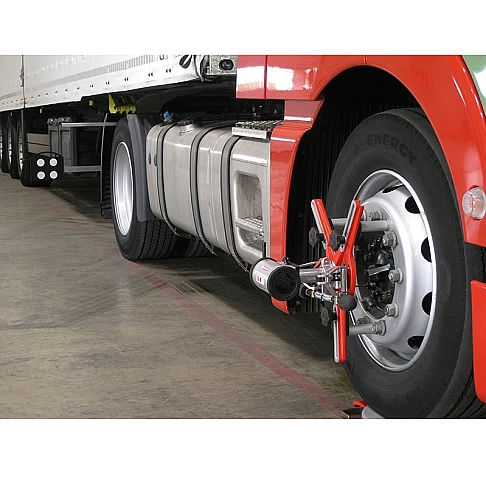

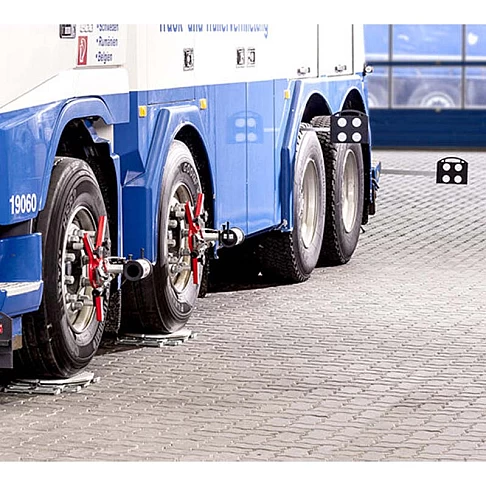

Haweka AXIS4000 PRO is the most advanced camera-based computerized wheel alignment system, specially designed for heavy-duty and commercial vehicles such as trucks, buses, trailers, minibuses, and transporters. Developed by HAWEKA, this system combines modern camera technology, wireless data transmission, and ergonomic usability, allowing for precise and fast wheel and axle alignment without lifting the vehicle – alignment is performed in a "driven position."

The 360° rotating camera sensors, wireless transmission of measurement data, intuitive software, and unique magnetic mounting solutions ensure efficient, safe, and error-free operation – even on vehicles with dual steering axles or trailers.

Functions:

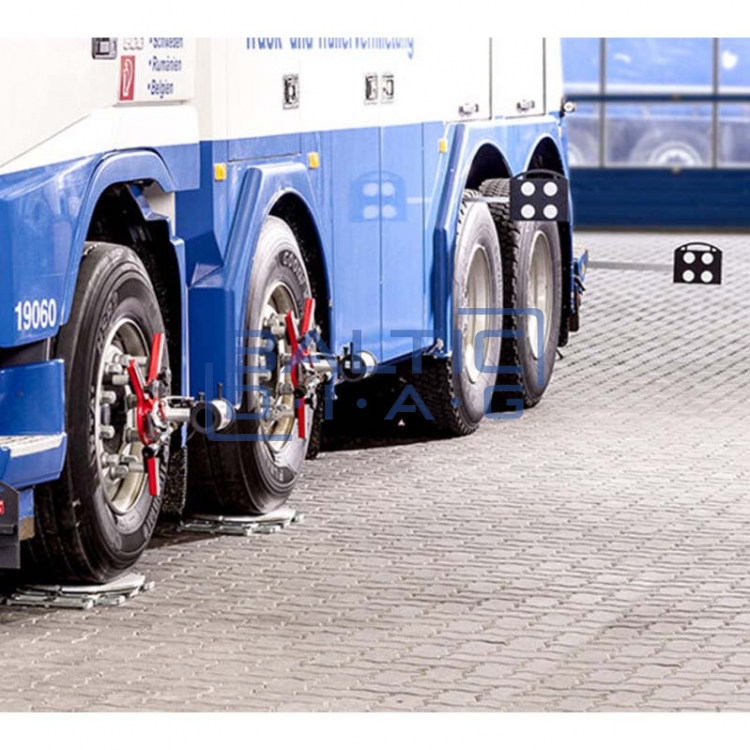

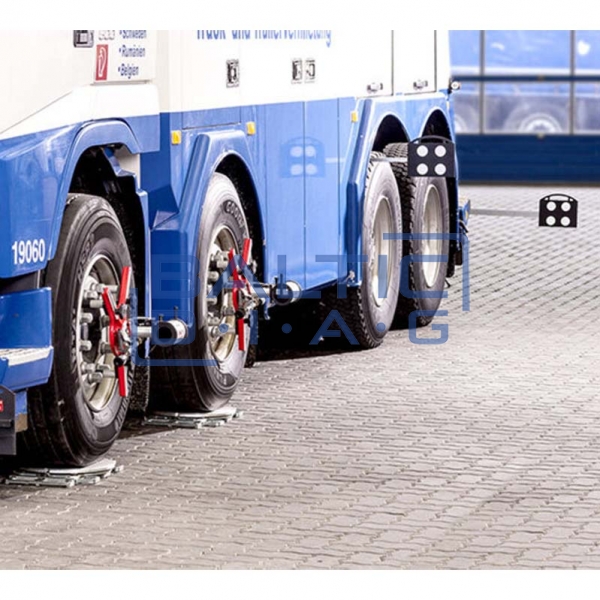

• Alignment without lifting the vehicle – all measurements are carried out in the driven position.
• 360° rotating camera sensors allow real-time recording of precise measurement data.

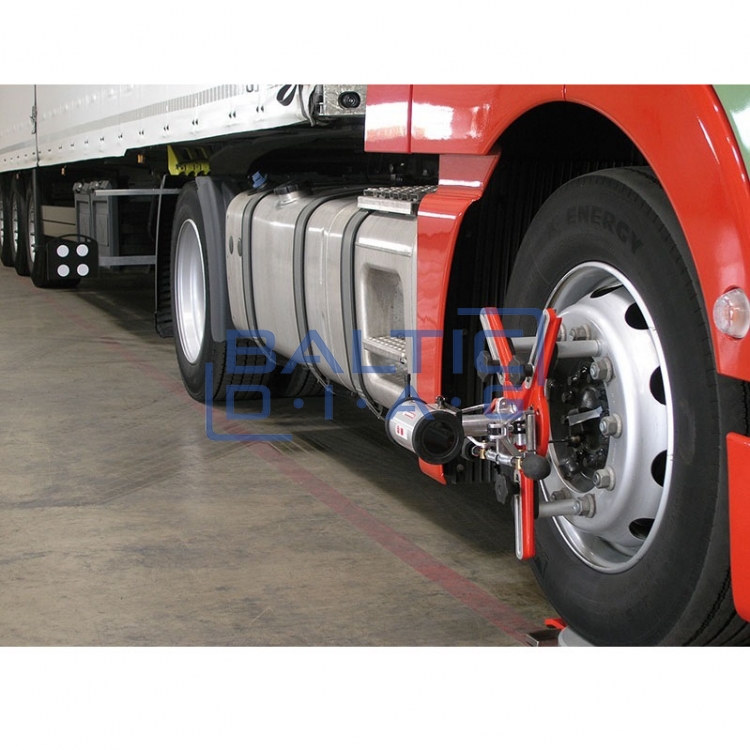

• ProClamp patented clamps are ideal for aluminum rims.

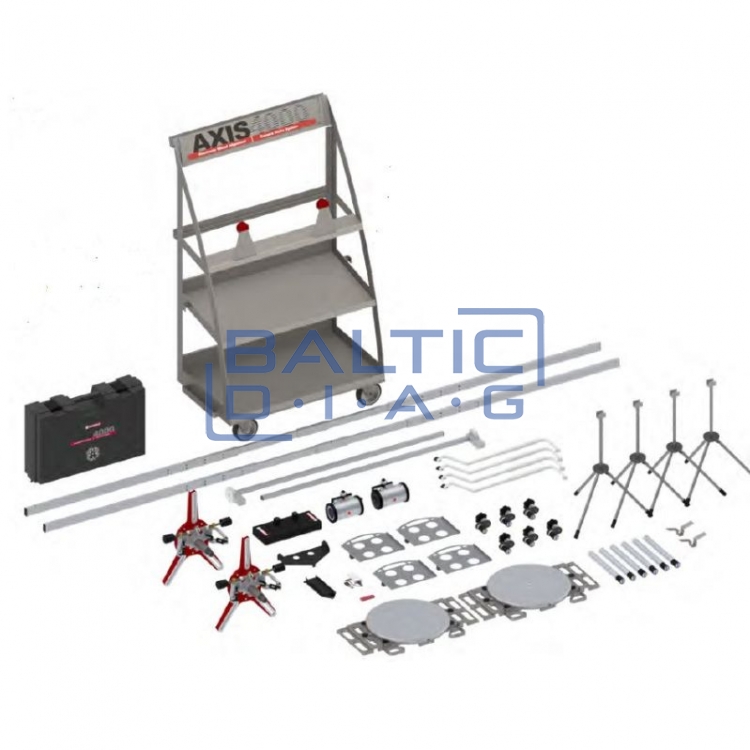

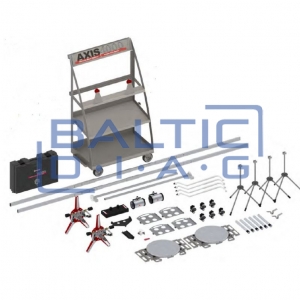

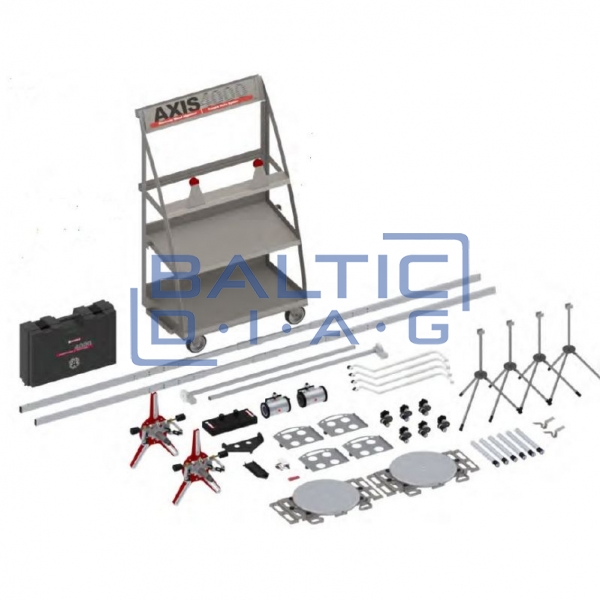

• Magnetic bases with interchangeable designs ensure quick adaptation to different wheel types.
• Softline mounting solutions enable safe adjustment of axles on minibuses and specialized transporters.
• Clear graphical user interface with step-by-step guidance helps the operator efficiently complete each alignment process.
• Before and after measurement comparison, with the option to print a detailed report.
• Wireless data transmission directly to the screen and printer module.
• Suitable for vehicles with multiple steering axles – can be aligned using additional turntables.

Applications:

• For trucks and buses – camera technology allows quick and accurate alignment and adjustment.
• For trailers and semi-trailers – additional adapters allow precise alignment of angles, offsets, and other geometry parameters.
• For transporters and minibuses – special Softline bases allow safe and easy adjustment even with softer tires.
• For vehicles with multiple steering axles – alignment can be performed quickly and precisely using additional turn plates.

Technical Specifications:

• Measuring ranges:
• Toe: ±5° | Accuracy: ±0°05’
• Camber: ±15° | Accuracy: ±0°05’
• Caster: ±18° | Accuracy: ±0°05’
• KPI: ±20° | Accuracy: ±0°20’
• Maximum steering angle: ±70°
• Other:
• Radio module frequency: 2.4 GHz
• Data transmission power: 10 mW
• Charger input voltage: 100–240 V
• Operating time with a fully charged battery: >10 hours
• Maximum load capacity on turntables: up to 6 tons per axle
