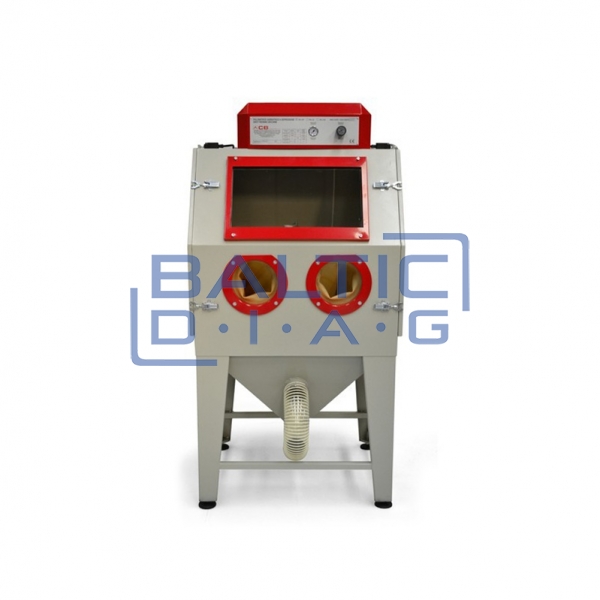

Blasting booth PS PAL2-N Sabbiatrici

Blasting booth kit PS PAL2-N Sabbiatrici

Country of origin: Italy, warranty period - 24 months

Possible additional modifications and various accessories are available upon request

The PS PAL2-N vacuum-type blasting and shot peening booth is designed for professional surface treatment in industrial, restoration, and maintenance sectors. It enables shot peening, decorative sandblasting, metal hardening, cleaning, deburring, and other surface preparation operations. Depending on the abrasive used (corundum, sand, glass microspheres, synthetic or vegetable granules, metal abrasives), it can process various materials from aluminum to stainless steel. The booth can be optionally equipped with a dust filter, loading cart, rotary table, or abrasive regeneration cyclone. If necessary, the unit can be converted into a pressure system to increase processing efficiency.

Functions:

• Suitable for shot peening, sandblasting, metal hardening, deburring, cleaning
• Compatible with various abrasives: corundum, sand, glass microspheres, metal or vegetable granules
• Optional accessories: dust collection filter, rotary table, loading cart, cyclone
• Convertible to a pressure system
• Suitable for working with aluminum, iron, glass, stainless steel, etc.
• Enables deep engraving or light polishing of the surface

Technical specifications:

Internal dimensions:

• Front – 880 mm
• Side – 600 mm
• Height – 780 mm

External dimensions:

• Front – 920 mm
• Side – 1100 mm
• Height – 1850 mm

Booth access: side, from both left and right

• Dust extractor: 400 V, 50 Hz, 0.75 kW
• Lighting: LED 20 W

Air consumption:

• Injector ∅ 3 mm – 600 l/min
• Injector ∅ 3.5 mm – 800 l/min
• Injector ∅ 4 mm – 1200 l/min
• Operating pressure: from 1.5 to 8 bar
• Tungsten carbide nozzle: ∅ 6, 8, or 10 mm
• Weight: 120 kg

Configuration:

• Blasting booth PS PAL2-N
• Wear-resistant rubber lining
• Pressure tank (24 L)
• Dust collector filter with self-cleaning compressed air system
