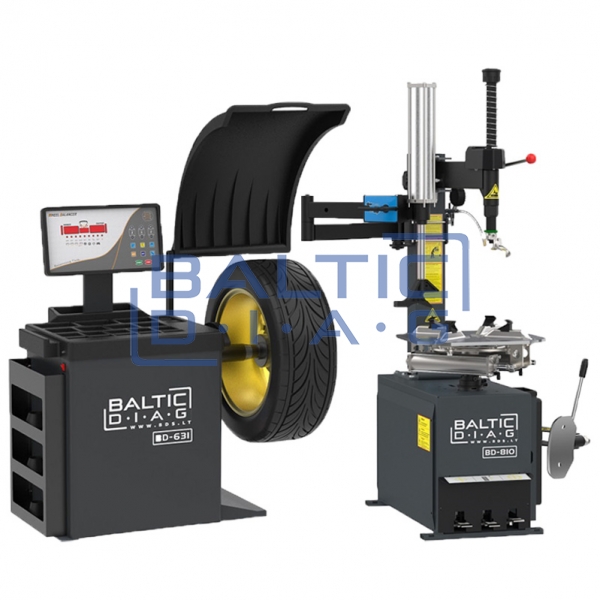

Automatic Wheel Balancing and Semi-Automatic Tire Mounting Machine Set BD-631 + BD-810

Automatic Wheel Balancing and Semi-Automatic Tire Mounting Machine Set BD-631 + BD-810

Country of Origin: China, warranty period - 24 months

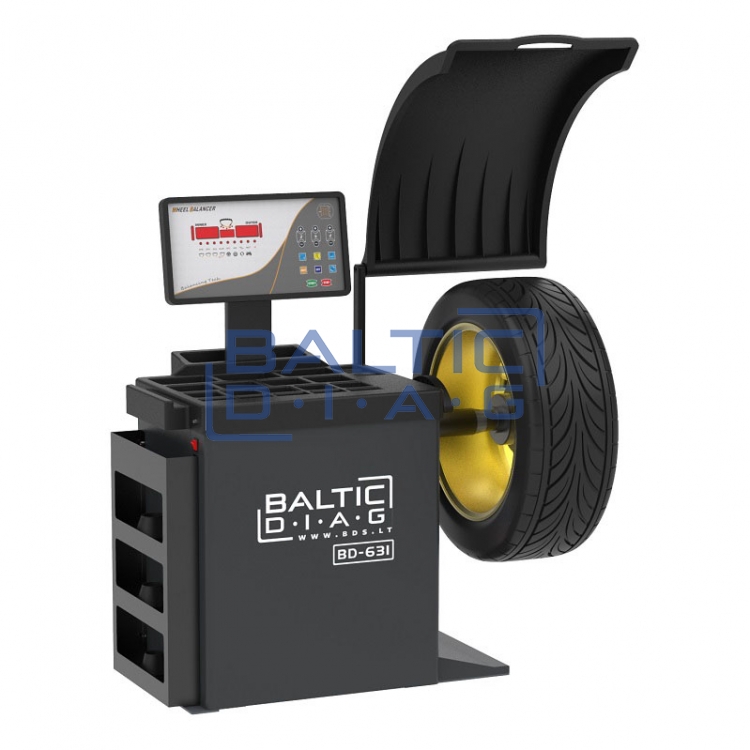

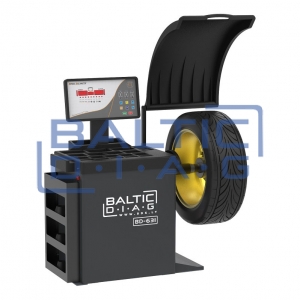

Automatic Wheel Balancing Machine BD-631

Features:

• Work Area Lighting: LED lighting facilitates work, allowing you to inspect, clean the rim, and properly attach balancing weights more easily.
• Laser Marker: Enables quick and precise identification of the spot where the balancing weight needs to be attached.
• Automatic Wheel Stopping: The balancing machine automatically stops the wheel at the exact position for attaching the weight.
• Main Balancing Shaft: Features a 40 mm diameter, processed with longitudinal surface grinding and excellent thermal treatment. The aluminum pulley is corrosion-resistant, ensuring safe and reliable use for many years.
• 2D Measuring Arm: Made of aluminum alloy with highly precise measuring parameters for accurate results. It simplifies marking the position for attaching the weight and allows automatic entry of wheel diameter and distance.
• Control Panel: Equipped with an LED screen and special buttons for inputting data or selecting a balancing program. Additional LEDs display imbalance parameters, results, and the balancing position.
• Side Storage Compartments: Conveniently store various machine accessories within reach.
• Protective Wheel Cover: Controls the start and stop operations of the balancing machine.
• Balancing Operations: Supports all wheel balancing operations, including dynamic balancing, static balancing, 3 ALU rim balancing modes, and an adjustable OPT function.

Technical Specifications:

• Rim diameter: 10” – 28”
• Maximum wheel diameter: 1000 mm
• Wheel width: 1.5” – 20” (38 – 510 mm)
• Rotation speed during balancing: 200 RPM
• Maximum wheel weight: 70 kg
• Balancing accuracy: ± 1 g
• Electric motor power: 0.25 kW

Standard Accessories:

• Balancing cones of various sizes x 4 pcs
• Wheel width measuring arm x 1 pc
• Quick-release nut x 1 pc
• 100 g calibration weight x 1 pc
• Pliers for working with weights x 1 pc
• Mounting adapter with rubber protection x 1 pc

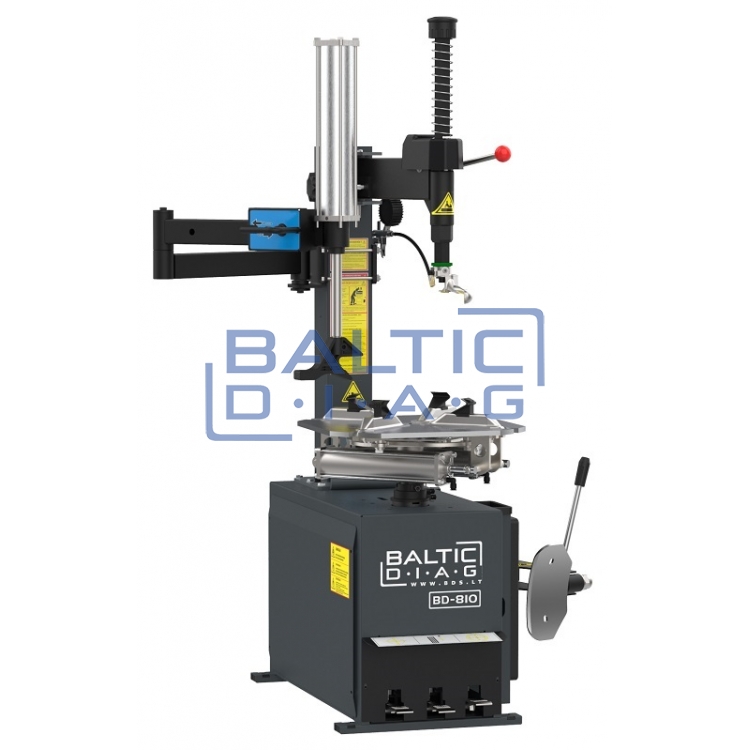

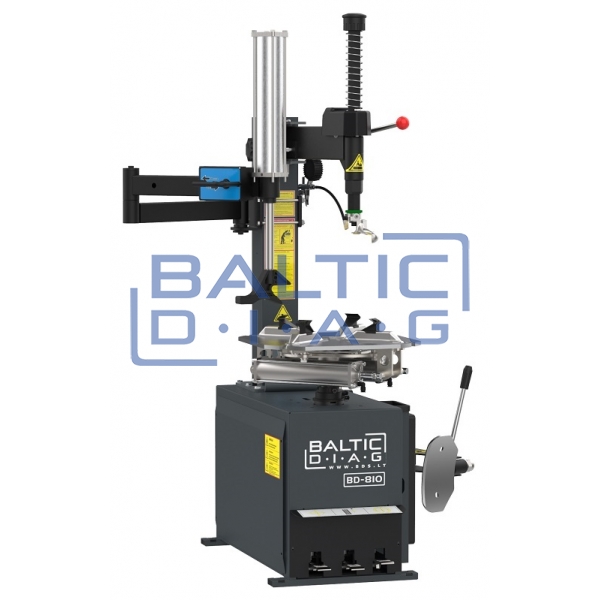

Semi-Automatic Tire Mounting Machine BD-810 + BD310

This semi-automatic tire mounting machine BD-810, combined with an auxiliary mounting arm, is an excellent solution for auto repair shops and tire fitting workshops. This setup allows for quick and precise tire mounting and demounting, ensuring a smooth process with minimal effort from the operator. The BD-810 with BD310 provides equipment that simplifies your work, saves time, and guarantees professional results every time!

Features:

• Steel Mounting Head: Ensures durability and is equipped with replaceable plastic covers to protect rims from scratches.
• Self-Centering Rim Clamps: Use two pneumatic cylinders for safe and reliable rim locking.
• Removable Pedal Mechanism: Simplifies and speeds up maintenance.
• Rotatable Mounting Arm: Swivels horizontally and features a 36 mm hexagonal shaft with a locking handle.
• Powerful Bead Breaker: Provides up to 2700 kg of bead-breaking force.
• Tire Inflation Gun with Manometer: Ensures convenient and quick tire inflation and pressure checking.
• Auxiliary Mounting Arm BD310: Features dual functionality, pressing down one side of the tire during mounting or lifting it during installation.

Technical Specifications:

• Internal rim diameter: 12” – 24”
• External rim diameter: 10” – 22”
• Maximum wheel diameter: 960 mm
• Maximum wheel width: 3” – 15” (76 – 380 mm)
• Bead breaking force: 2700 kg (27000 N)
• Operating pressure: 8 – 10 bar
• Electric motor power: 1.1 kW
• Power supply: 230 V / 50 Hz / 1-phase

Standard Accessories:

• Bucket for tire mounting paste x 1 pc
• Tire mounting paste brush x 1 pc
• Plastic protection for mounting finger x 1 pc
• Plastic protection for bead breaker blade x 1 pc
• Plastic protection for clamps x 4 pcs
• Tire lever x 1 pc

Explore the full range of tire mounting machines for cars. Unsure which tire mounting machine you need, or still choosing your wheel and tire repair equipment? BalticDiag’s qualified specialists will provide comprehensive consultation.
