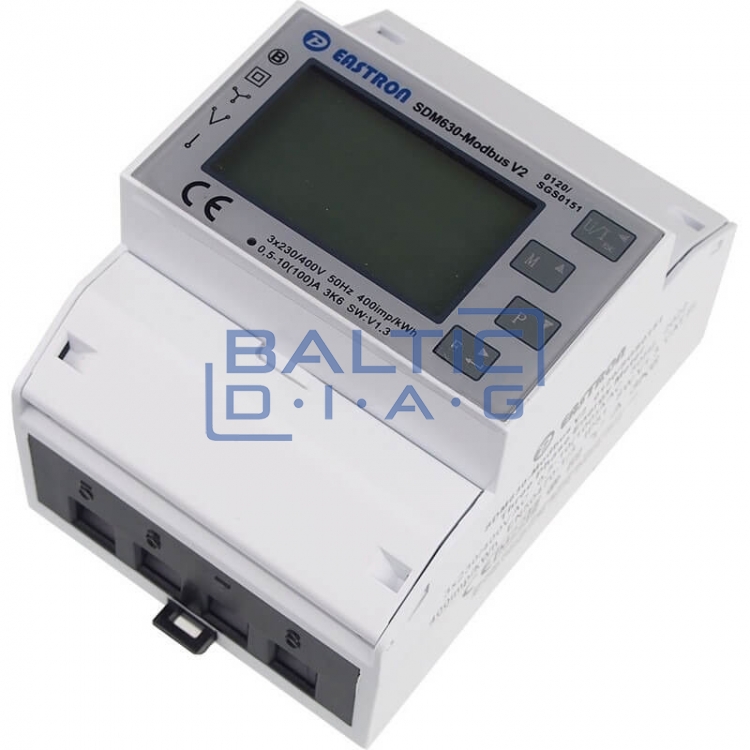

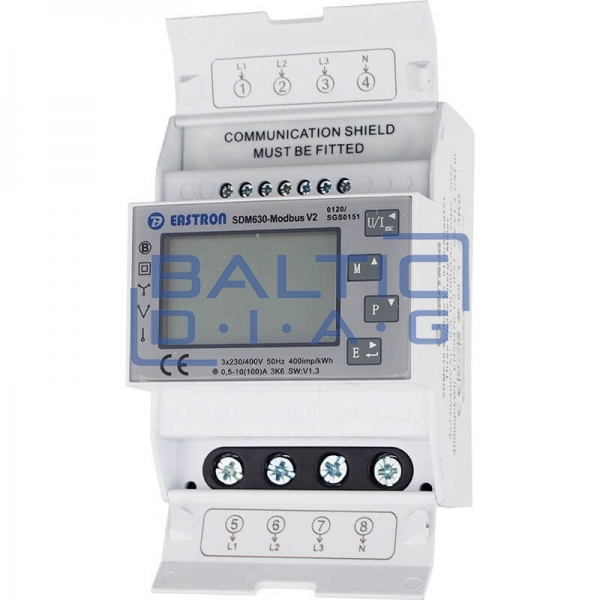

Autel smart electricity meter, three-phase

Autel smart electricity meter, three-phase

Manufacturer: Autel, Germany

Autel Smart Meter 3F AC is a universal electricity meter that is suitable for single-phase or three-phase electricity networks. The meter is adapted to withstand electric current up to 100 A and is easily mounted on standard DIN rails. Simple and intuitive control, equipped with remote data reading.

Technical data:

• Nominal voltage: 3 x 230 / 400 V / AC
• Operating voltage: 60% ~ 120% Un
• AC withstand voltage: 4 kV for 1 min
• Impulse voltage resistance: 6 kV - 1.2 ms
• Rated current: 5 A or 333 mV input
• Operating current range: 0.4% of maximum voltage
• Operating frequency range: 50 or 60 Hz
• Power consumption per phase: ≤ 2 W / 10 VA
• Pulse output 1: Configurable
• 2 pulse output: 3200 imp/kWh
• Screen: LCD
• Maximum value: 9999999.9 kWh / kVArh
